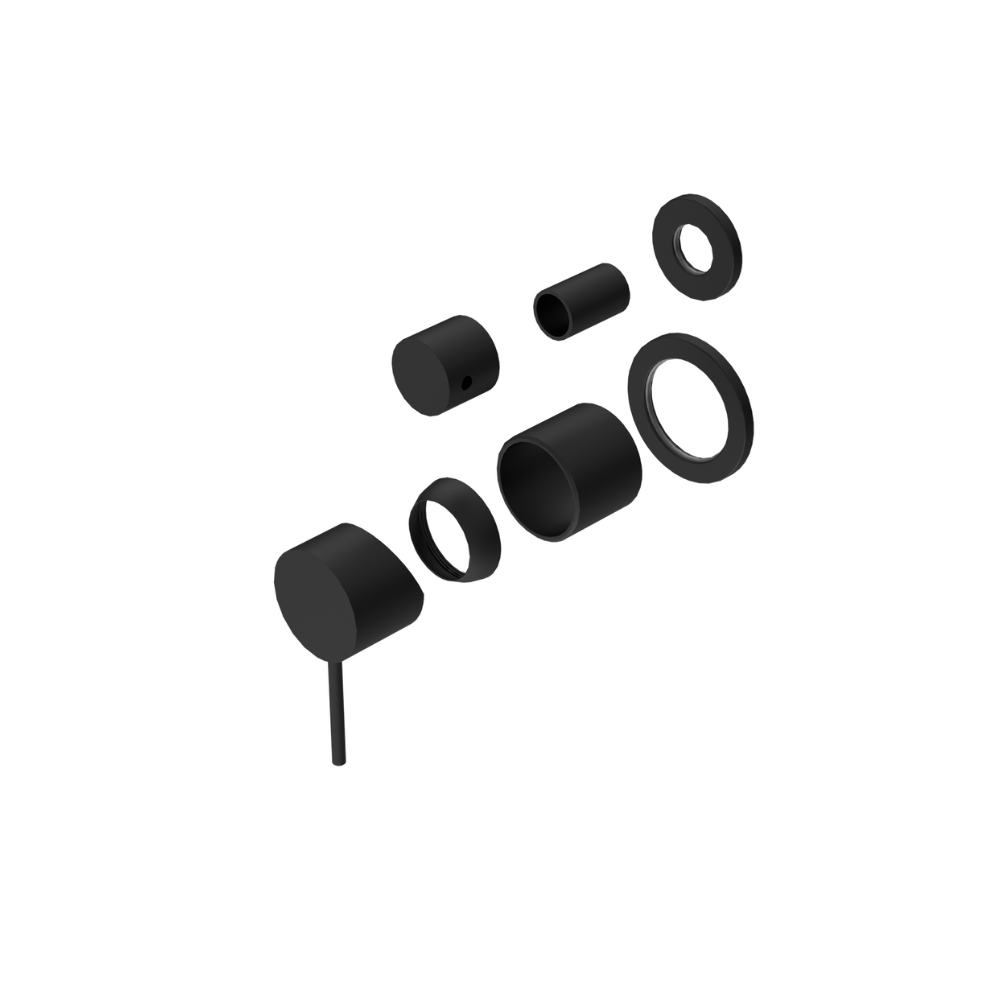

Mecca Shower Mixer With Divertor Separate Back Plate Trim Kits Only Matte Black - NR221911STMB

• Metal wall plate construction for longevity
• Compatible with project 35mm universal shower mixer with divertor body
• Material: Brass
• More options available, see Avail or Nero’s website

Install Advice:

Installation Instruction for Trim KIts Only:

1. Drill a φ50mm and a φ30mm hole in the ceramic tile, then position it.

2. Undo the self-tapping screw to remove the plastic sleeve.

3. Insert the O ring to the dressing bell groove, and slide the cartridge bell onto cartridge and slide divertor dressing bell onto divertor cartridge.

4. Apply waterproof treatment to the area indicated.

5. Tighten up the dressing ring on the cartridge bell.

6. Slide the backplates onto body.

7. Attach the washer to cartridge rod, position the handle, tighten it with a grub screw using an Allen key, and cap the grub screw hole.

8. Put knob onto divertor cartridge, tighten it with grub screw using Allen key, and cap the grub screw hole.
