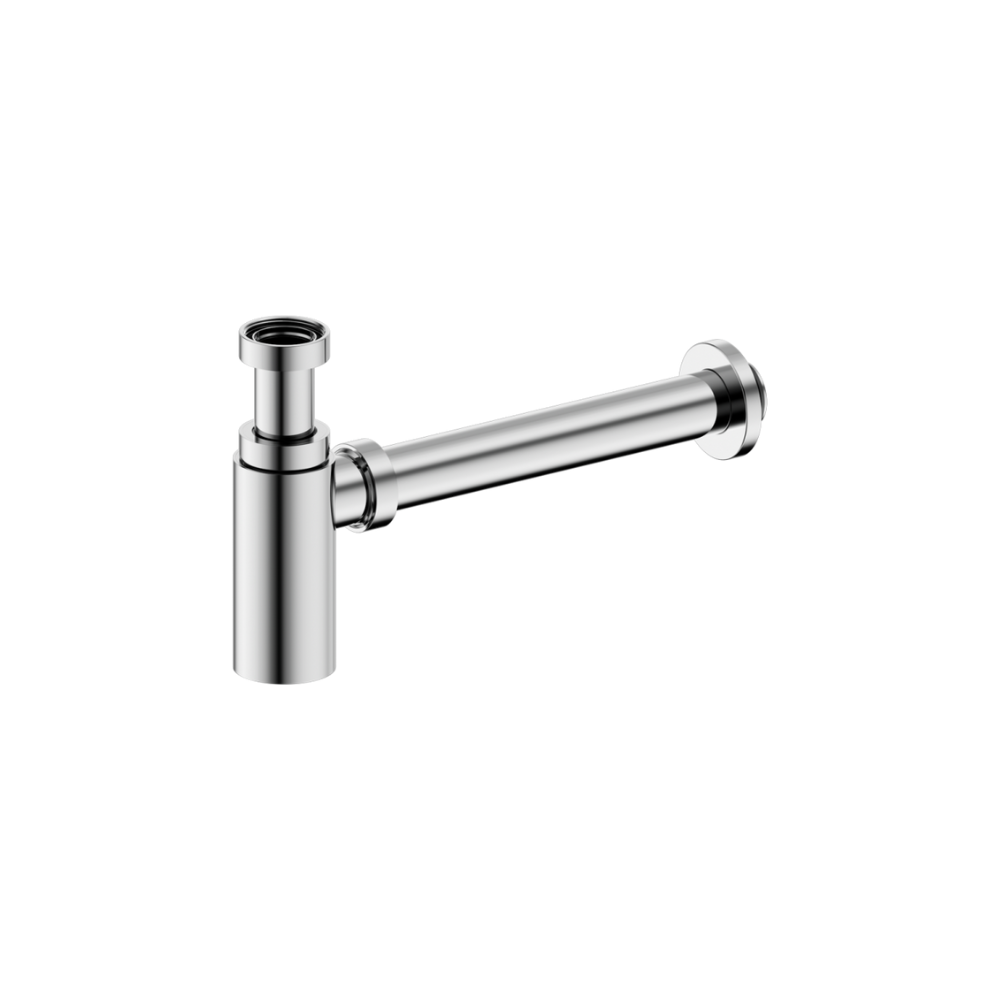

40mm Round Bottle Trap II Chrome - 25A001CH

• Material: 304 Stainless Steel
• Modern Round Design – Sleek and stylish for a contemporary bathroom look
• Efficient Waste Drainage – Helps prevent clogs while maintaining smooth water flow
• Easy to Install & Maintain – Simple setup with a removable bottom for quick cleaning
• Premium 304 Stainless Steel – Durable, rust-resistant, and built to last

Install Advice:

Installation Instruction:

1. Measure the distances a and b. a should be 66mm ~ 166mm, b should be 100mm ~ 350mm.

2. Connect the inlet pipe to the basin waste, adjust the height of the trap so that the trap outlet is flush with or slightly higher than the socket. Then, properly screw the retaining nut on the trap until the trap does not fall off.

3. Please fit all the parts onto the outlet pipe, pay attention to the installation orientation of each part.

4. Connect the outlet pipe to the bottle trap, tightening the retaining nut. Slowly pull out the outlet pipe until the Kee seal is fully engaged.
Position the wall plate for a neat finish.
Note: The outlet pipe can be cut to the required length, ensuring the edges are deburred for a smooth and secure connection.

5. Confirm all components are securely fastened and aligned. Run water through the basin and check for leaks, adjusting fittings as needed.
The installation is complete.
