Avail Ambulant Toilet Pan Back To Wall for In Wall Cistern AS1428.1 - ATPAMBW1

a. Extra height 460mm seat height, compliant to AS1428.1 Section 13 for Ambulant and General Use Toilets, makes it easier to sit and stand
b. Additional Products required for AS1428.1-2021 Ambulant Toilet Compliance - if applicable (see install diagram for required install locations):
1. Ambulant Toilet Grab Rails (Two required, one on each side): Calibre Mecca 32mm AS1428.1 Ambulant 90 Degree Bent Tube Grab Rail 450x450mm Brushed Nickel - NRCR3290DBN
2. Toilet Roll Holder Single or Double (other options are available): Calibre Mecca Add On Toilet Roll Holder Brushed Nickel - NRCR3286TBN or Mecca Double Toilet Roll Holder Brushed Nickel - NR1986dBN
3. In Wall Cistern (Mechanical or Pneumatic): Nero In Wall Mechanical Frameless Toilet Cistern for NRPL001 Flush Buttons - G30033
4. Flush Button Panel (Raised or Flat): Ambulant and Standard In Wall Toilet Flush Button Plate Brushed Nickel - NRPL001BN

Suitable for installation to comply to Australian Standard AS 1428.1-2009 & 2021 Design for access and mobility for people with an ambulant disability.

A revolution in design, this ceramic floor pan by Avail Design is a clean & contemporary economical choice.

The pan is manufactured with a flawless production process and is hand finished with a superior glazing technique. The final result is determined by the connection between form and concept.
Quality and comfort.

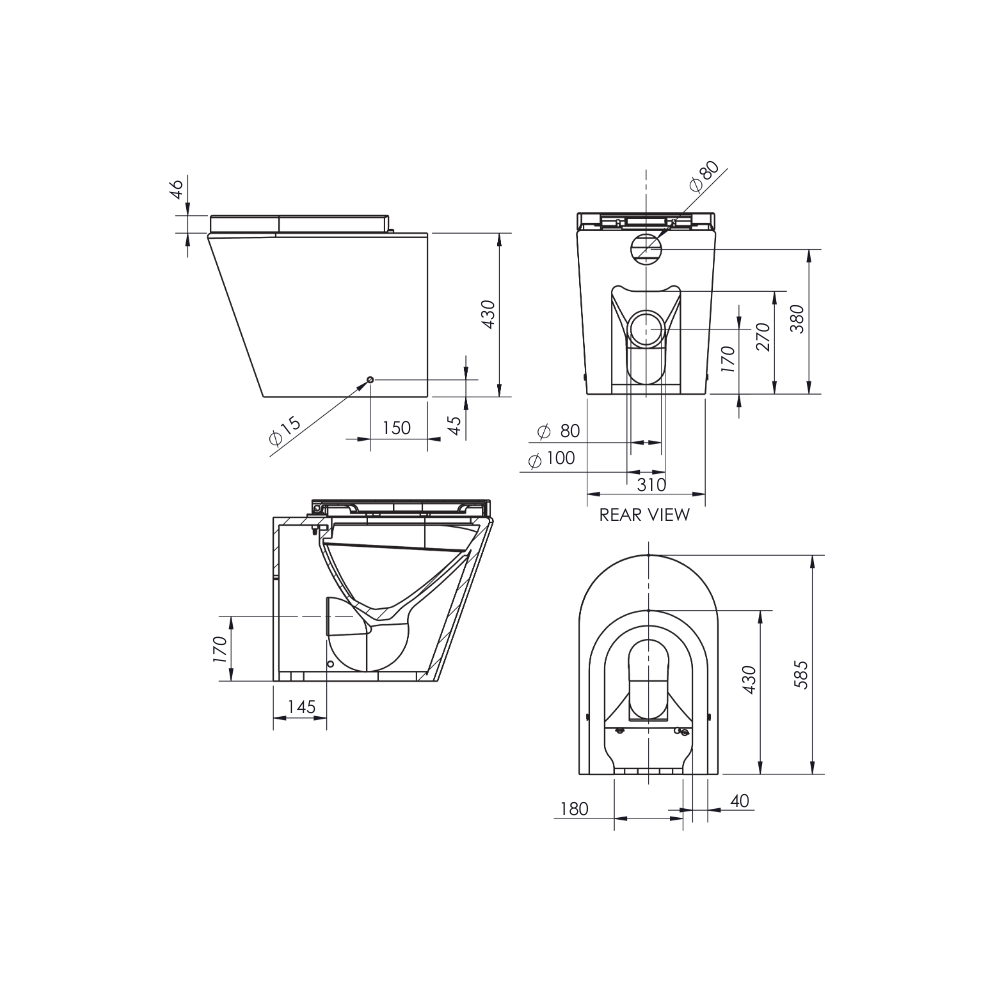

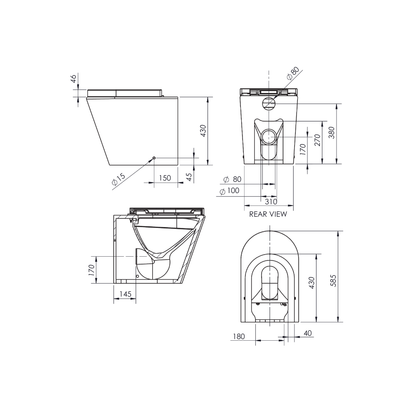

Dimensions: 360mm (w) x 580mm (d) x 430mm (h)

Features:

• Suitable for in wall cisterns
• For private homes or AS1428.1 Ambulant toilets
• 460mm height to top of seat (requirement for AS1428.1)
• WELS Licence No. 1641
• WELS Registration No. L05695
• Average flush: 3.4 Litres, Full flush: 4.6L, Half flush 3L
• Star Rating: WELS 4 Star
• Formerly Code: LT-1003D-R/HY2007
• Fixings / brackets - floor fixing kit included
