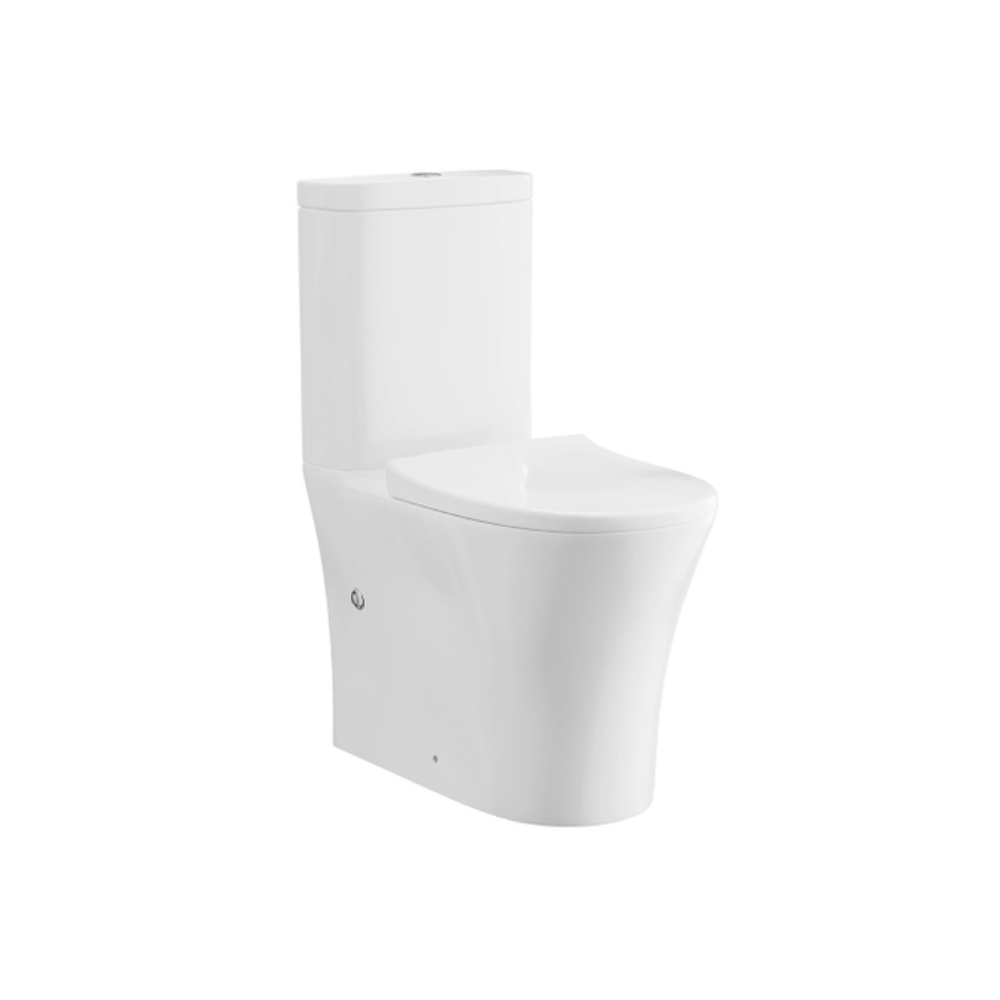

Avail Ambulant Toilet Suite 620mm with Cistern Wall Faced AS1428.1 - ATCPAMBW1

a. Extra height 460mm seat height, compliant to AS1428.1 Section 13 for Ambulant and General Use Toilets, makes it easier to sit and stand.

b. Additional Products required for AS1428.1-2021 Ambulant Toilet Compliance - if applicable (see install diagram for required install locations):
1. Ambulant Toilet Grab Rails (Two required, one on each side): Calibre Mecca 32mm AS1428.1 Ambulant 90 Degree Bent Tube Grab Rail 450x450mm Brushed Nickel - NRCR3290DBN
2. Toilet Roll Holder Single or Double (other options are available): Calibre Mecca Add On Toilet Roll Holder Brushed Nickel - NRCR3286TBN or Mecca Double Toilet Roll Holder Brushed Nickel - NR1986dBN

• The Avail Rimless Wall Faced Toilet delivers superior hygiene and enhanced accessibility, specifically engineered to suit Ambulant Toilet Requirements.
• This elegant, rounded pan features advanced Rimless flushing technology for a seamless, effortlessly clean, and bacteria-free experience.
• Highest Quality
• Vitreous China Construction
• Rimless Flushing Technology
• Heavy Duty Duraplast
• Quick Release
• Soft Close Seat
• WELS Registration No. L06479
• WELS Licence No. 0422
• Average flush: 3.4 Litres, Full flush: 4.4L, Half flush: 3.2L
• Star Rating: WELS 4 Star
• 7 year replacement product or parts*:1 year labour
  *Excludes valves, seats, button assembly, links, flush pipes & other internal components which carry a 1 year replacement warranty
• Formerly Code: HDC683HP + (BOC3187 soft close seat)
• Standard Bottom (Left/Right) & Top Water Inlet
• Supplied with S-Trap Adaptor to suit 80-160mm Set Out
• Will suit 150-240mm Set Out with S-TRAP2(sold separately)

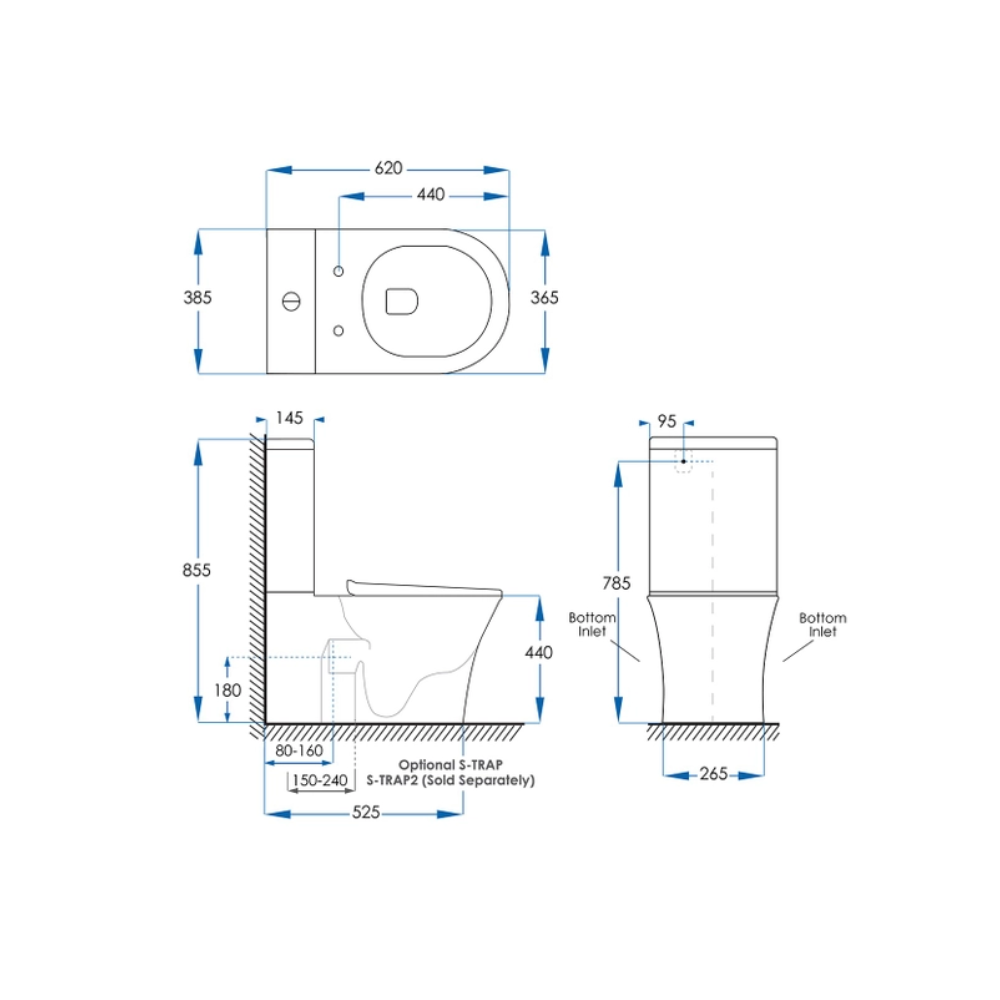

• Size: 360mm x 610mm x 855mm
• Weight: 62kg
