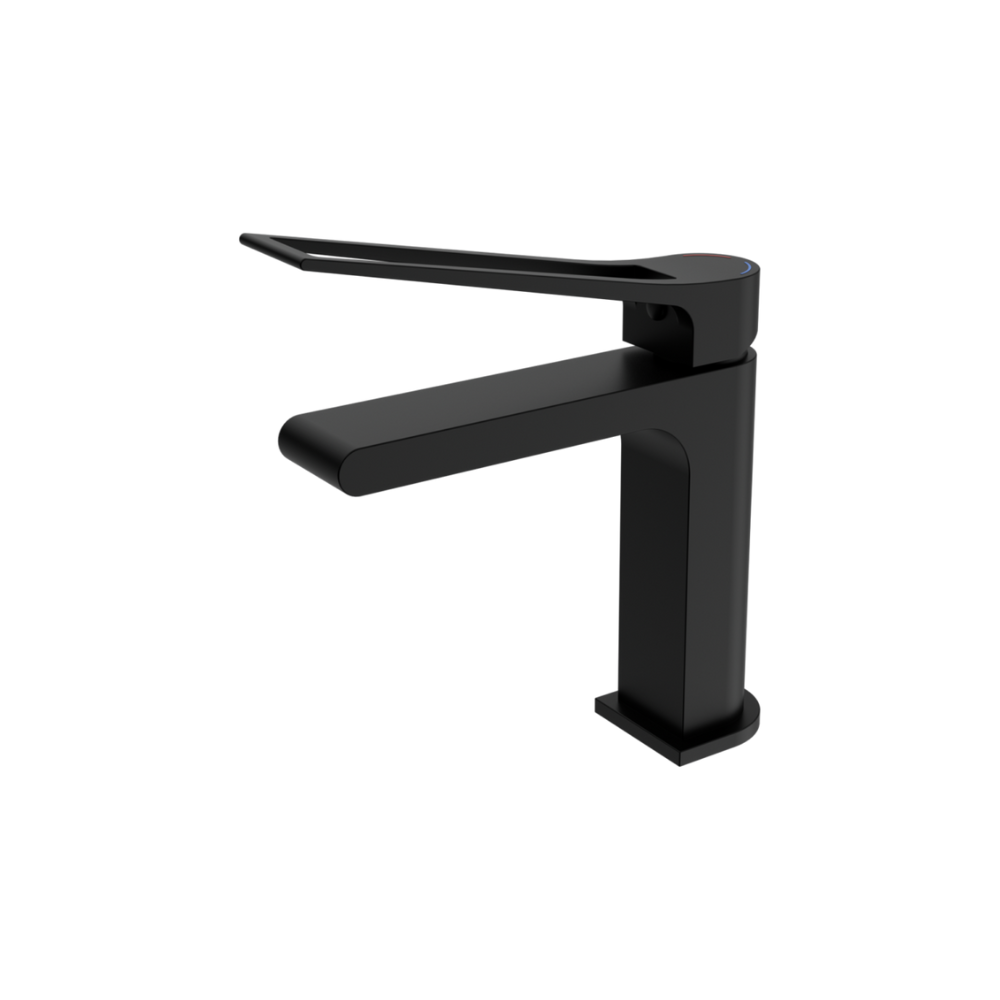

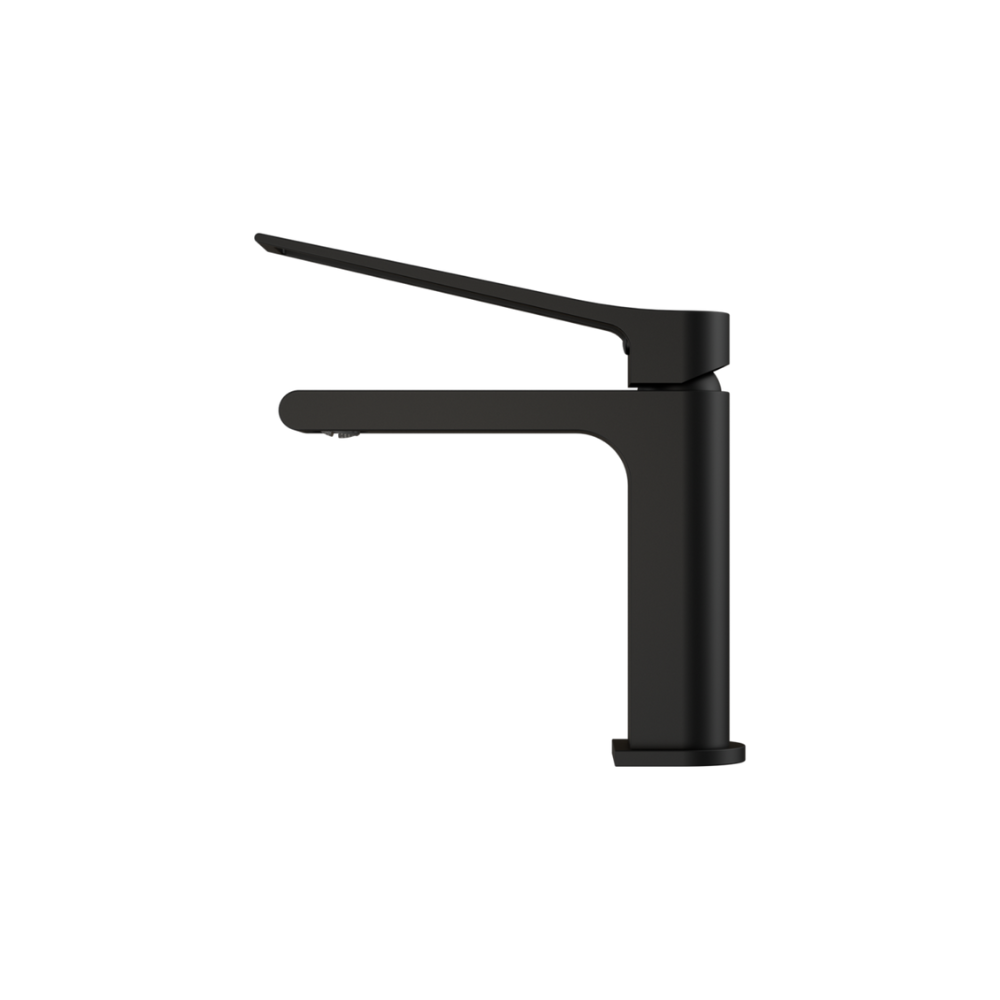

Bianca Care Basin Mixer Matte Black - NR321502AMB

• Material: Brass
• WELS Rating: 6 Star, 4.5L/Min
• WELS Registration No: T44275
• AS1428.1 Compliant – Designed for accessible use in public and assisted living spaces.
• Low Lead DZR Brass – Durable, corrosion-resistant, and safe for drinking water.
• Neoperl Aerator – Ensures smooth, efficient water flow with reduced splashing.
• Rust-Resistant Braided Hose – Polyamide Braided PEX
• Hose for long-lasting durability.
• Sleek & Modern Design – Complements the Bianca series with a contemporary look.

Install Advice:

Installation Instruction:

1. Screw the threaded coupling into the mixer body and insert the base into the threaded coupling, ensuring that the retaining screw on the base aligns with the reserved holes at the bottom of the mixer body.

2. Pre-drill or create a hole with a diameter of 35mm at the proper location.
Note: the thickness of the countertop should be between 10mm-45mm.

3. Insert the threaded coupling at the bottom of the mixer into the mounting hole. Ensure that the O-ring is positioned at the bottom of the base to prevent leakage.

4. Slide the Locking Nut, Metal Washer, and Rubber Washer onto the braided flexible hoses in sequence.

5. Screw the braided flexible hoses into the mixer body through the threaded coupling and tighten them. Then tighten the locking nut with Philips Screws to secure the mixer to the countertop. The installation is complete.

FINAL INSPECTION:
- Ensure the tap operates smoothly and that there are no leaks at the connections.
- Clean the area and the newly installed tap with a soft cloth to remove any installation residues.
