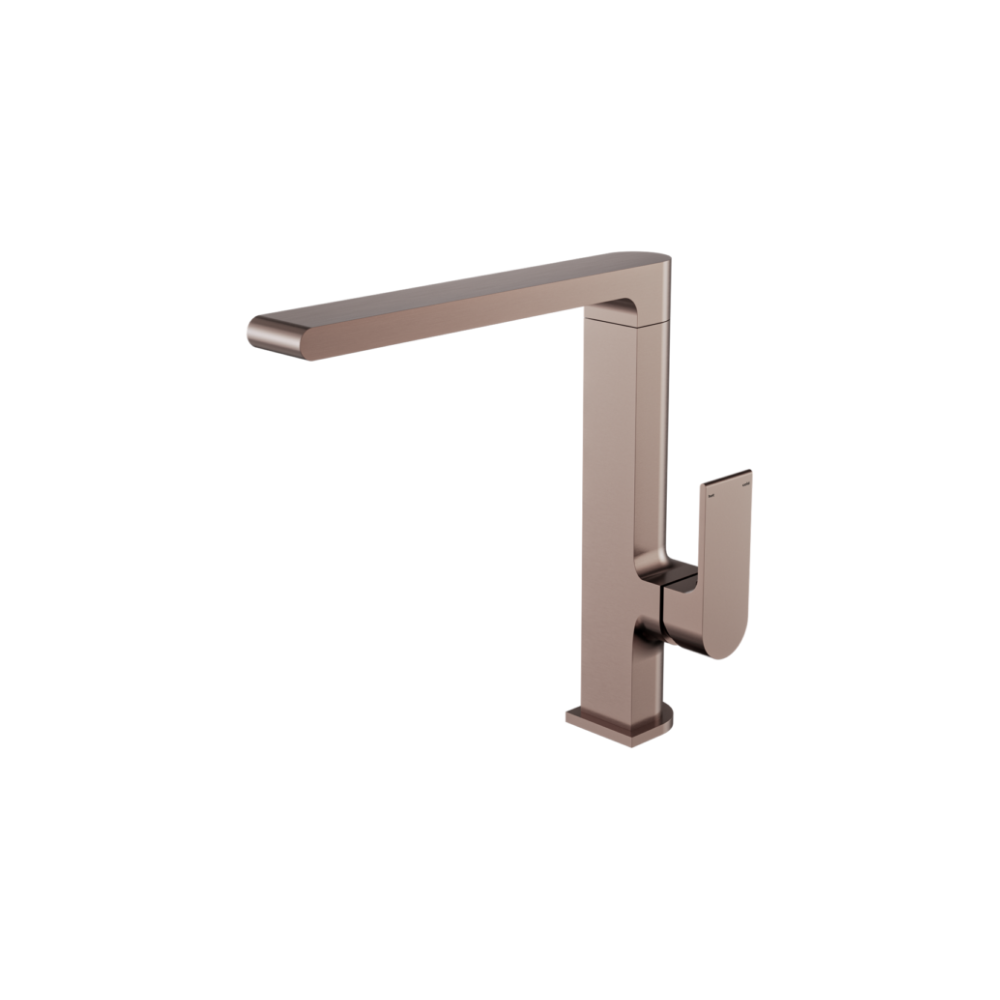

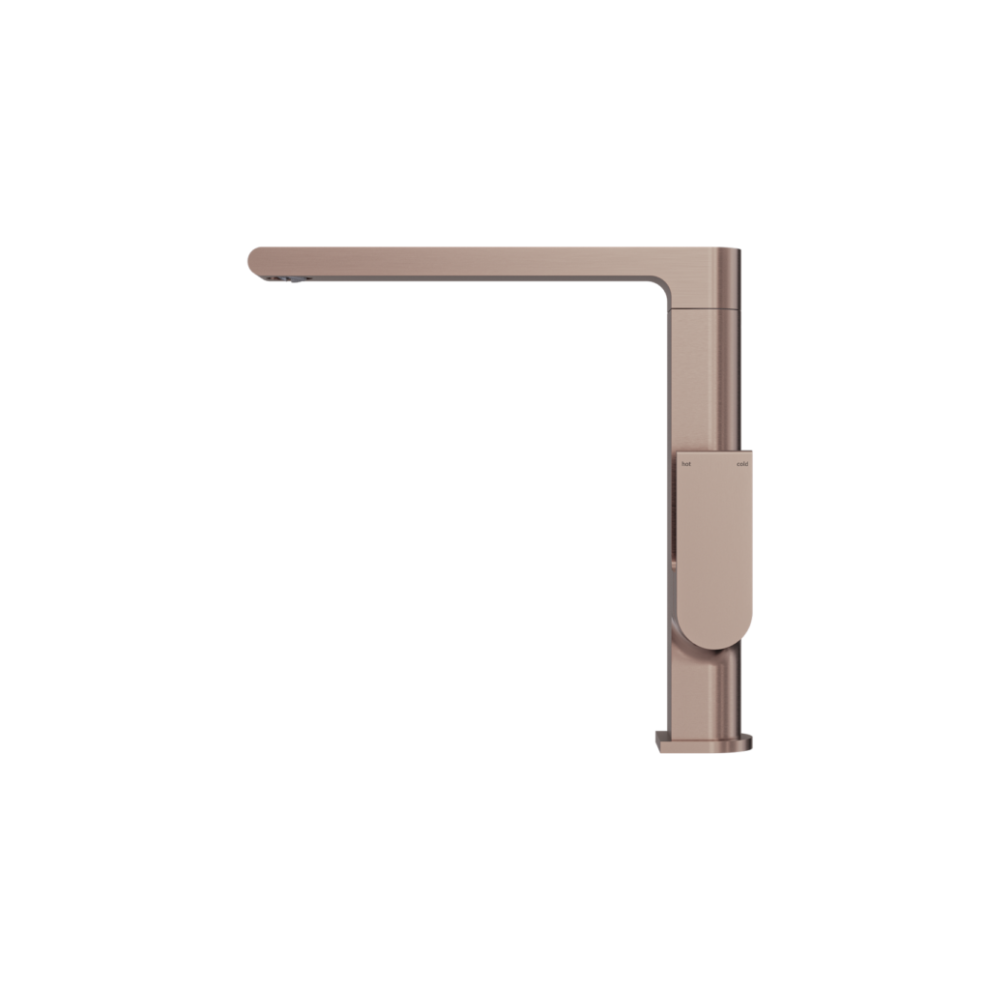

Bianca Kitchen Mixer Brushed Bronze - NR321507BZ

• Material: Brass
• WELS Rating: 4.5L/Min, 6Star
• WELS Registration No: T40945
• 25mm ceramic disc cartridge can be adjusted to control water temperature and flow control settings, saving energy
• Solid brass construction for longevity
• NEOPERL aerator with slim stream flow director
• Polyamide PEX flexible hoses-1/2BSP female
• Suitable for mains pressure installation

Install Advice:

Installation Instruction:

1. Pre-drill or create a hole with a diameter of 35mm at the proper location. Please note that the thickness of the surface should be between 3mm-40mm.

2. Attach the threaded tube to mixer body and screw the Pex hoses into the bottom of the mixer body.
Attach the base ring to the mixer body. Ensuring the O-ring sits within the bottom groove of the base plate to prevent water leakage through the cabinet.
Place the Pex hoses through hole in counter-top.

3. Install the rubber and metal washers, tighten the locking nut securely with the two M6 screws to ensure the mixer is firmly attached to the counter-top.
Avoid over tightening to prevent damage to the components.

4. Connect the Pex Hose to the corresponding hot and cold water supply valves. Tighten the Female cone nuts by hand(According to Pex hose instruction). Ensuring they are secure yet not overtightened to avoid thread damage.

5. Check all connections for leaks. If any fittings are leaking, shut off the water as necessary to stop the leaks.
Contact the supplier for warranty claim.
