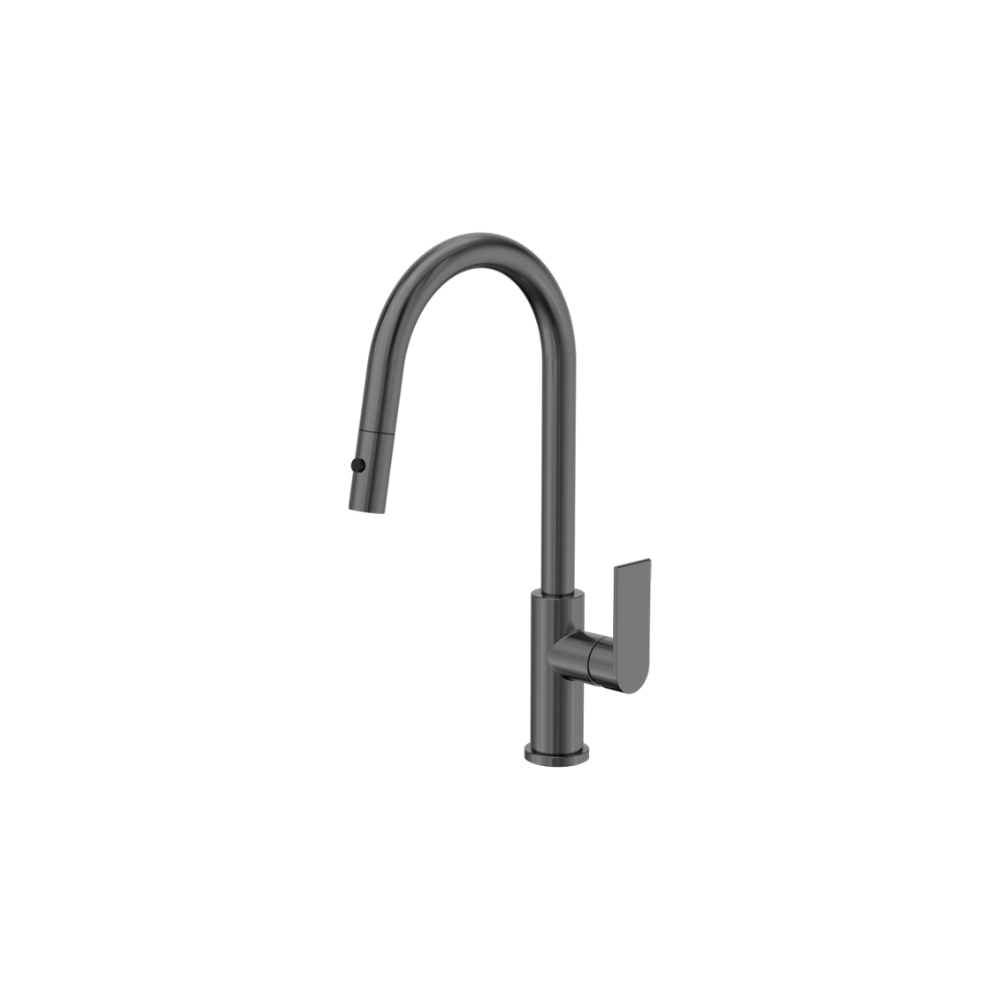

Bianca Pull Out Sink Mixer With Vegie Spray Function Gun Metal - NR321508GM

• Material: Brass
• WELS Rating: 6 Star, 4.5L/Min
• WELS Registration No: T44610
• Pull-Out Design with Vegie Spray – Flexible spray function for easy rinsing and cleaning.
• Rust-Resistant Braided Hose – Polyamide Braided PEX
• Hose ensures durability and prevents rust.
• Low Lead DZR Brass – High-quality, corrosion resistant, and safe for drinking water.
• Cold Start Cartridge – Energy-efficient design to reduce hot water waste.

Install Advice:

Installation Instruction:

1. Pre-drill or create a mounting hole with a diameter of 35mm in the benchtop.
Note: If the stabilizer is used, the maximum benchtop thickness should not exceed 30mm. Without the stabilizer, the benchtop thickness can be up to 40mm.

2. Attach the base plate, threaded tube to mixer body, screw the braided flexible hoses into the bottom of the mixer body through the mounting hole.
NOTE: Ensuring the O-ring sits within the bottom groove of the Base Plate to prevent water leakage.

3. Slide the rubber washer (Stabilizer if needed) and metal washer over the threaded tube, secure the mixer firmly to the benchtop with locking nut and screws.

4. Connect the pull-out hose to the quick connecting hose.

5. Install the counterweight onto the pull-out hose using the screws provided. It is recommended to position the counterweight approximately 300mm below the base of the mixer.

6. Connect the flexible hoses to the corresponding hot and cold water supply valves.

7. Check all connections for leaks. If any fittings are leaking, shut off the water as necessary to stop the leaks.
Contact the supplier for warranty claim.
