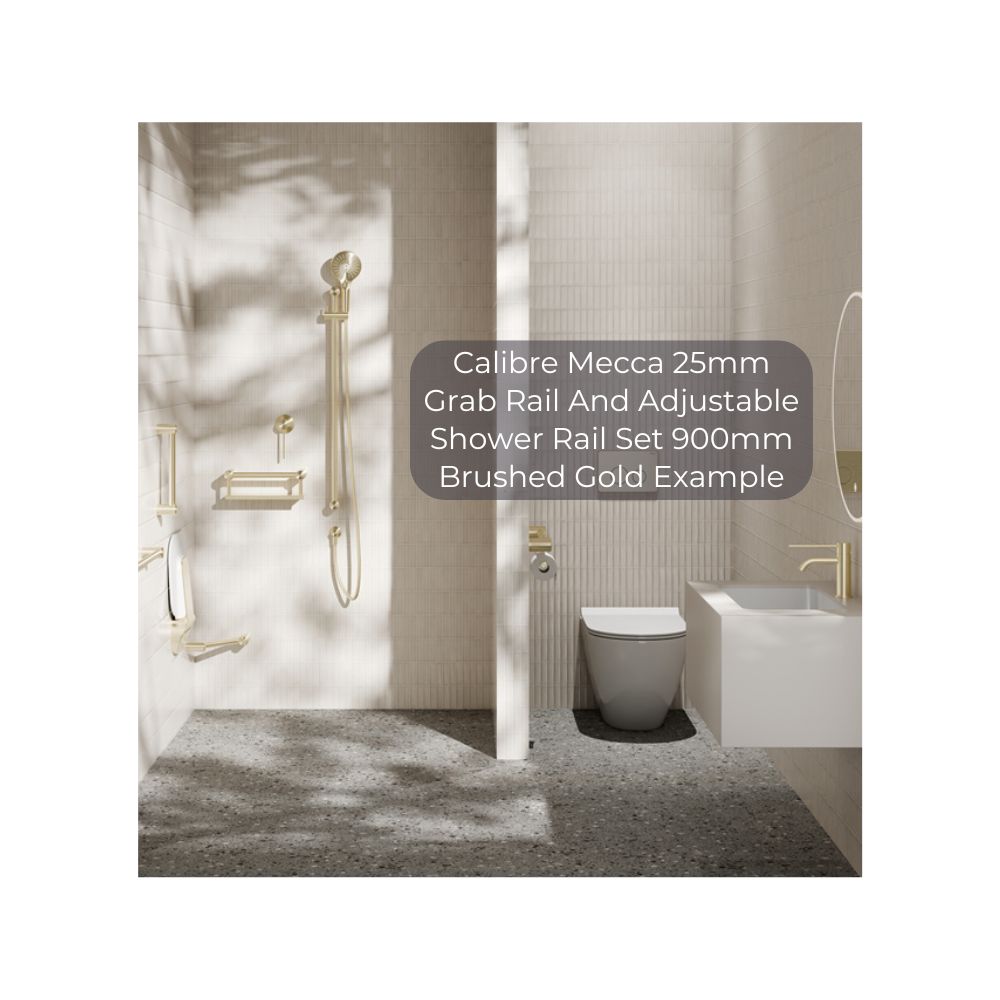

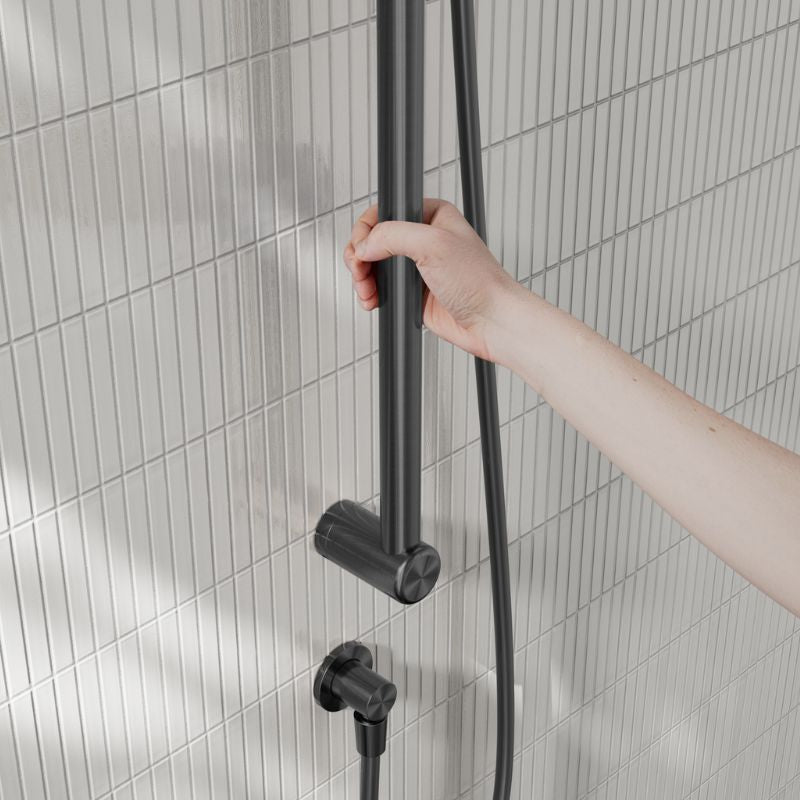

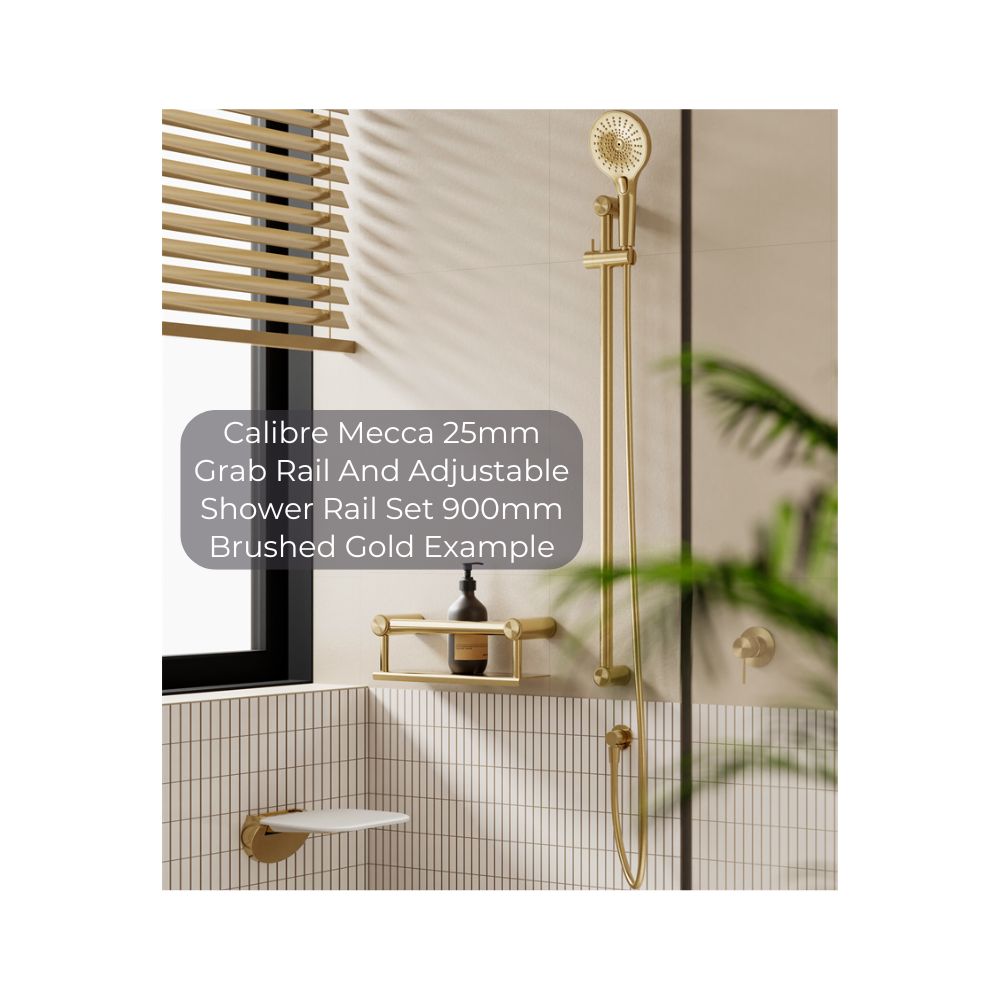

Calibre Mecca 25mm Grab Rail And Adjustable Shower Rail Set 900mm Gun Metal - NRCS004GM

Regular price $620.00
Regular price $620 Sale price $620
Sale Sold out
Tax included. Shipping calculated at checkout.
Are you a trade member? Sign in for trade orders.

Need a Quote?

Generate a quote for this product by adding your email below OR generate a quote based on all items in your cart


Create Quote

  • 900 grab rail and shower set, multifunction 3 star 9 litre per min hand shower head Lic 1632, adjustable rail slider, wall outlet, 1.5m hose
  • 25mm Diameter Rail
  • Flow Rate: 3 Star 9L/min
  • 150kg Capacity
  • WELS Registration No: S17574
  • Material: Stainless steel
  • Strong and durable, satin-smooth hose
View full details

Description

  • 900 grab rail and shower set, multifunction 3 star 9 litre per min hand shower head Lic 1632, adjustable rail slider
  • Flow Rate: 3 Star 9L/min
  • WELS Registration No: S17574
  • Material: Stainless steel
  • Adjustable 7.5 liters per minute shower head with multiple settings including soft, pulsating and bubble spray, WELS 4 Star Rating (Reg # S11001)
  • Simple push button or twist adjustment for shower head height
  • 1.5m Flexi Stainless Steel Shower Hose
  • Wall water outlet with additional shower head holder, mounting brackets and wall screws included.
  • The rails can be shortened during installation to suit you
  • 150kg capacity for all 25mm calibre grab rails
  • Calibre Mecca 25mm diameter rails are more slimline and suitable for smaller hands, in non-DDA bathrooms
  • Additional options include: Soap Basket, 1m or 2m Flexi Shower Hose, Shower Head Wall Bracket
  • Strong and durable, satin-smooth hose

Assembly and CAD

Installation Guide Calibre Mecca 25mm Grab Rail And Adjustable Shower Rail Set 900mm

Download

3D CAD BIM Calibre Mecca 25mm Grab Rail And Adjustable Shower Rail Set 900mm

Download

Install Advice

Installation Instruction:

1. Put teflon tape onto outlet thread.

2. Slide plate onto elbow.

3. Screw elbow onto outlet.

4. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall.

5. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:4mm hole for screws into timber or 10mm hole for wall plugs.

6. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

7. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

8. Slide the shower slider onto rail, then slide rail tubes into end brackets and push onto wall brackets.

Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

9. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

10. Connect hand shower and elbow by shower hose.
Tip: There are two rubber washer in the shower hose.

11. Test and check for leaks.
