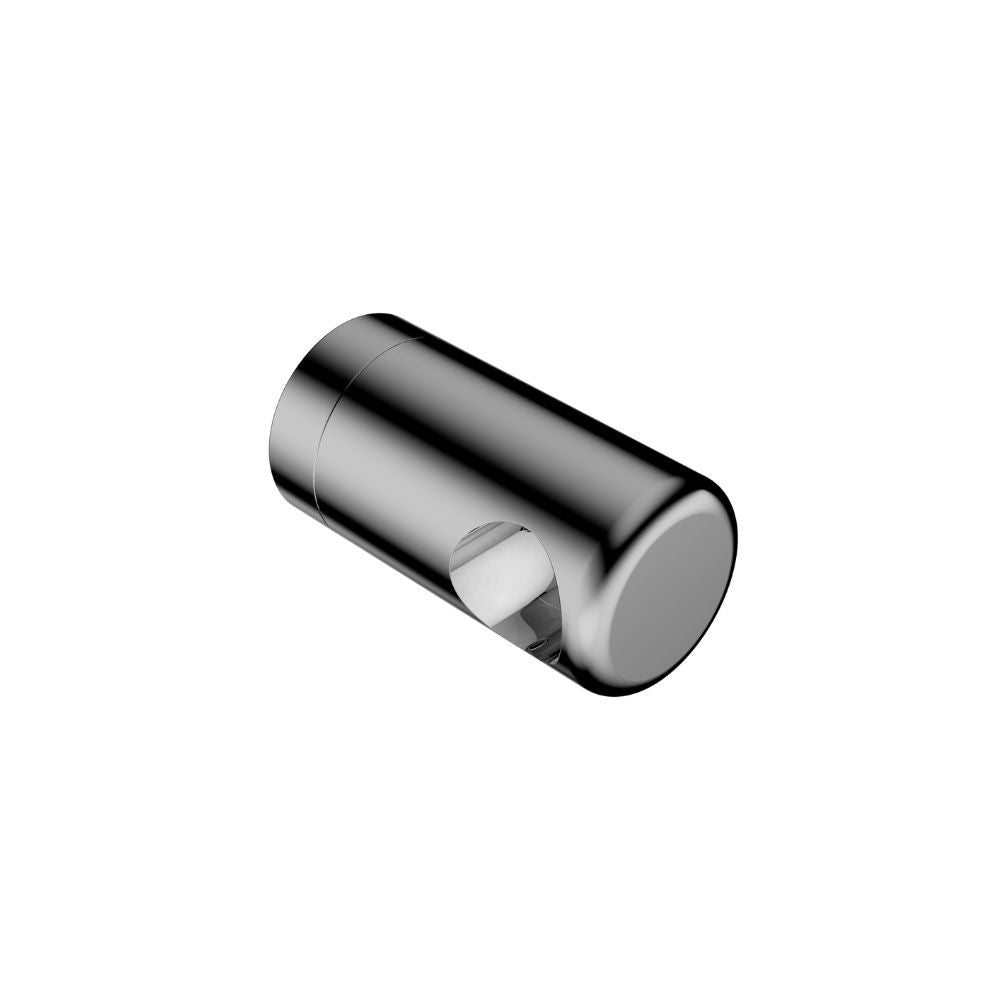

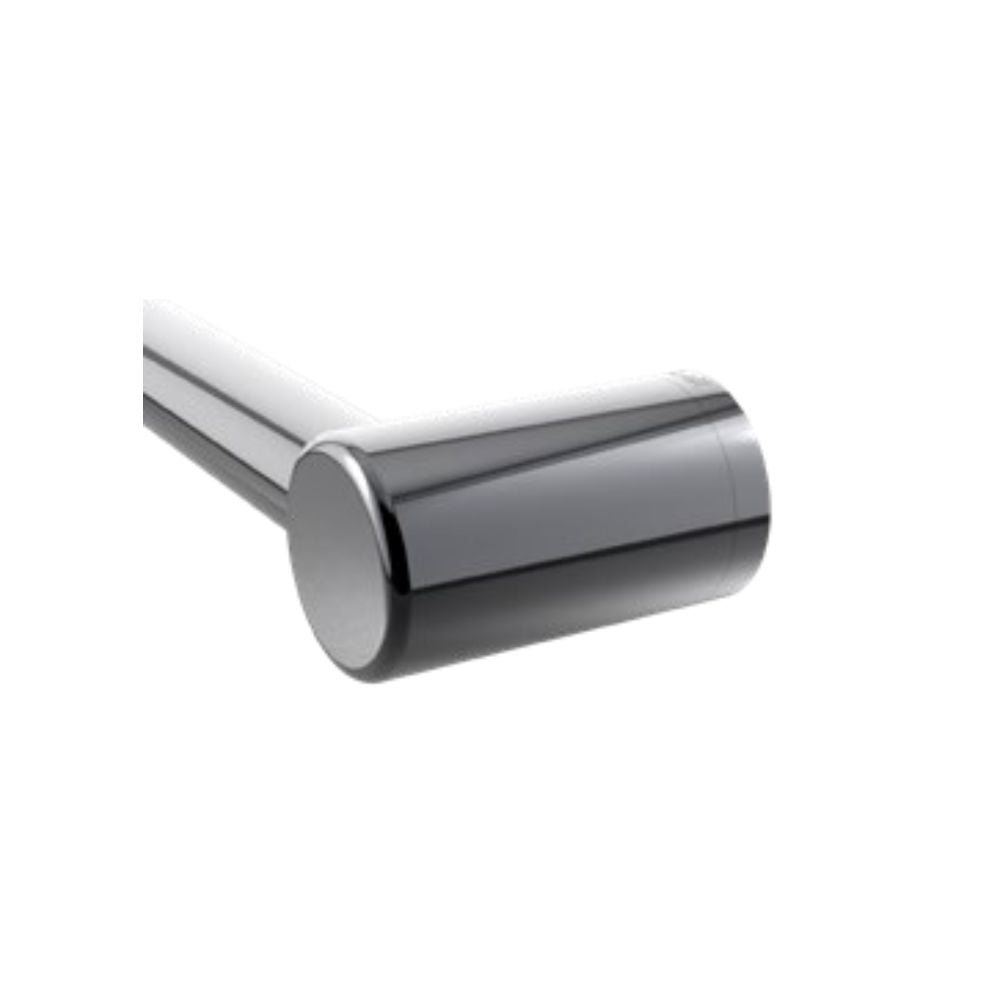

Calibre Mecca 25mm Grab Rail Make Your Own End Bracket Chrome - NR5390420CH

• End Bracket for 25mm Diameter Grab rails
• The ends of the rails slot into the brackets and are secured with from inside the bracket
• 150kg Capacity when installed correctly
• Includes Mounting Bracket set with screws and wall plugs
• Can be added to existing Mecca Care Grab Rail sets to create new combinations
• Formerly product code: NRE1BECH

Install Advice:

Installation Instruction:

1. Loosen grub screw and remove the mounting bracket. Loosen or remove grub screw from the end bracket.

2. Drill a Ø10mm hole at the desired mounting location.

3. Secure the mounting bracket to the wall using the supplied expansion plug and self-tapping screw. Ensure it is firmly fixed.

4. Insert the Ø25mm grab rail fully into the end bracket. Tighten grub screw to secure the rail.

5. Insert the end bracket into the mounting bracket. Tighten grub screw to complete installation.
