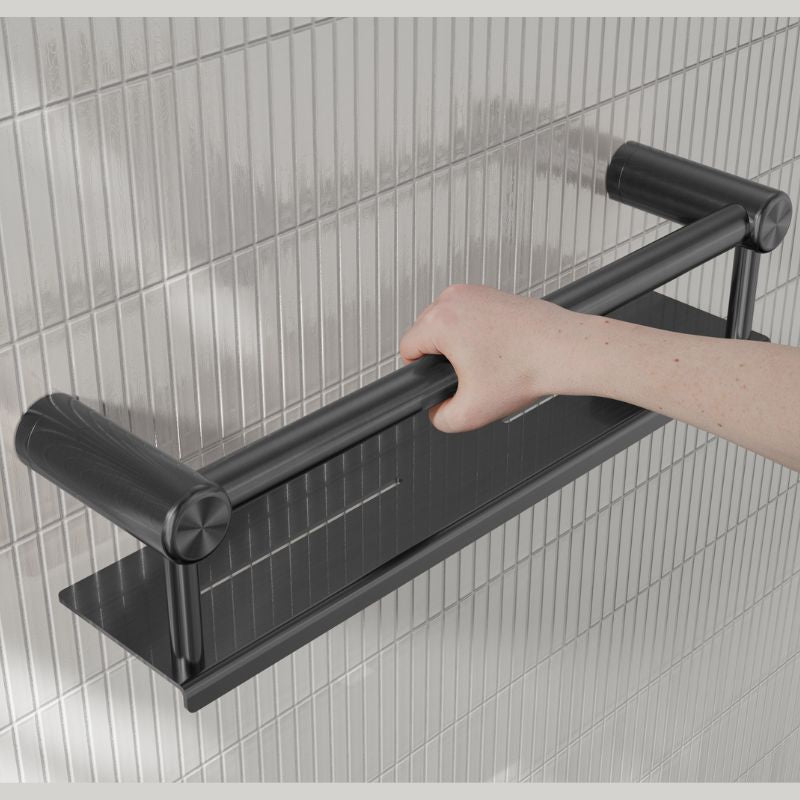

Calibre Mecca 25mm Grab Rail With Shelf 450mm Gun Metal - NRCR2518CGM

• A subtle rail to hold onto in the shower
• Material: Stainless steel
• Handy 450mm with a shelf suitable for shampoo bottles and soap
• Available in over 7 finished including Living Brass, Chrome, Matt Black, Gunmetal, Brushed Nickel, Bronze, Gold
• Comfortable 25mm diameter rail, 150kg capacity
• Calibre Mecca 25mm diameter rails are suitable for support tails and smaller hands in private and non-DDA bathrooms
• A stylish design to help prevent falls in the bathroom and live independently
• Minimalist design complements modern bathroom accessories


Installation Instruction:

1. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall.

2. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:4mm hole for screws into timber or 10mm hole for wall plugs

3. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

4. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

5. Slide rail tube into end bracket and push onto wall brackets.

6. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten

7. Using supplied allan key whilst holding the shelf in place, screw the M4*72mm screws into the grab rail till tight.

8. Finished.
