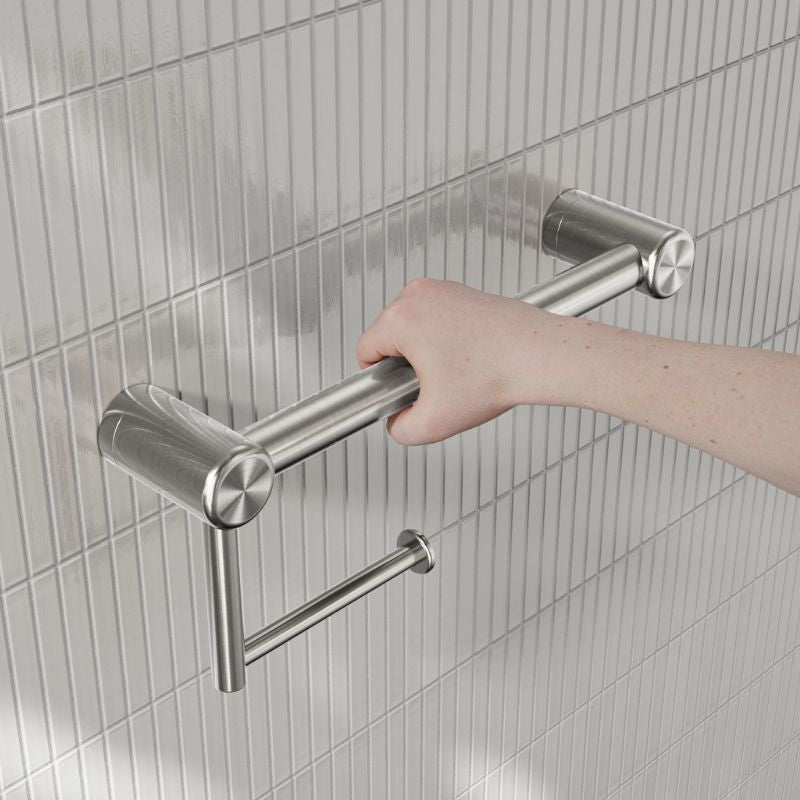

Calibre Mecca 25mm Toilet Roll Rail 300mm Brushed Nickel - NRCR2512ABN

• Material: Stainless steel
• Australian Owned and Designed
• Handy 300mm Rail which doubles as a toilet roll holder
• Left and Right hand available (Can be Installed on either side facing either direction)
• 150 kg capacity for all 25mm diameter calibre grab rails
• Available in over 7 finishes including Living Brass, Chrome, Matt Black, Gunmetal, Brushed Nickel, Bronze, Gold
• Calibre Mecca 25mm diameter rails are suitable for heavy duty towel rails and smaller hands, in non-DDA bathrooms
• A stylish design to help prevent falls in the bathroom and live independently
• Minimalist design complements modern bathroom accessories

Installation Instruction:

1. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall.

2. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:4mm hole for screws into timber or 10mm hole for wall plugs.

3. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

4. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

5. Slide rail tube into end bracket and push onto wall brackets.
Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

6. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten

7. Using supplied allan key whilst holding the toilet
roll holder in place, screw the M4*90mm screw into the grab rail till tight.
Tip: Left and Right hand available (Can be Installed on either side facing either direction)

8. Finished.
