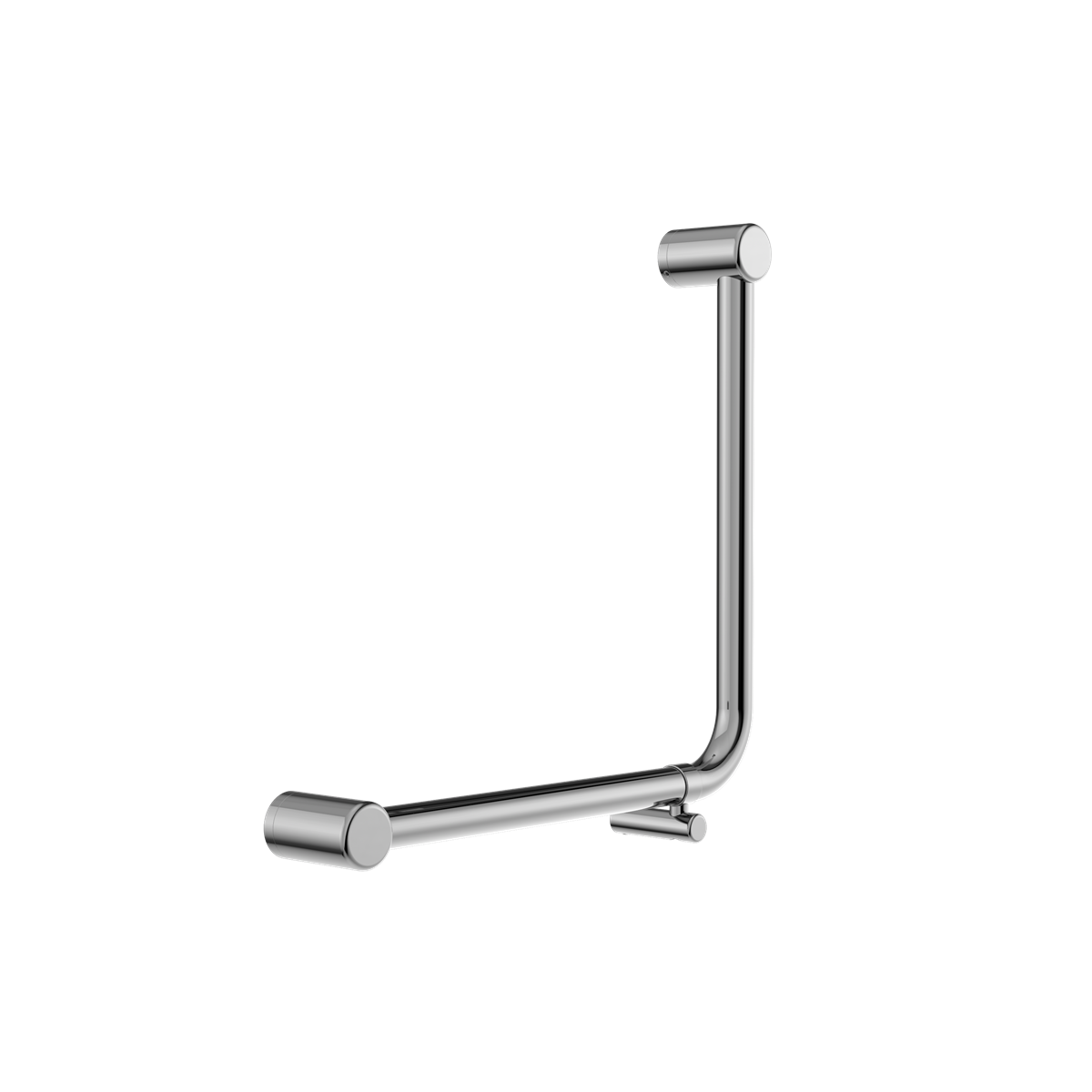

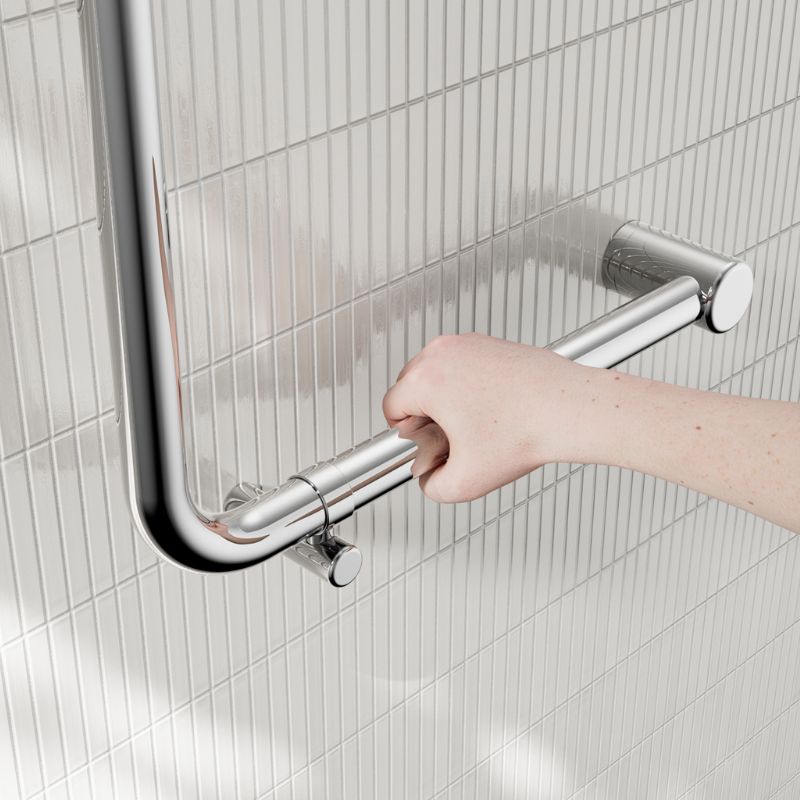

Calibre Mecca 32mm AS1428.1 Ambulant 90 Degree Bent Tube Grab Rail 450x450mm Chrome - NRCR3290DCH

The Calibre Mecca grab rail range combines commercial compliance with style to create a range focused on both commercial and residential builds
Compliant to all AS1428.1 Ambulant Toilet cubicle requirements
Ambulant toilet rails are also available

• Meets the AS1428.1-2021 requirements for section 13.2 Ambulant Grabrails as shown in Figure 52(a). See install instructions for AS1428.1 Position Requirements
• Product conformance and test reports as per NCC requirements are available on request
• AS1428.1-2021 compliant for grab rail requirements including section 14:
  - 30-40mm grab rail diameter for the full length of the rail
  - 5mm minimum radius on all exposed corners and edges
  - 150kg (1470N) capacity at any position and direction
  - 50-60mm distance from wall and brackets maintained for full length of rail
  - Clearance for hand passage is continuous for the full length of each rail, continuous passage is only required for the top 270 degree arc of horizontal and angled sections and the full 360 degree of vertical sections, not at the change in directions, this is consistent with all international standards including ISO 21542 Building Accessibility
  - Grab rail has passage of the hand for the full 270 degree of horizontal and angled sections and 360 degree passage for vertical sections of the rail as per AS1428.1 requirements
  - Ends of rails are enclosed inside wall brackets to remove potential hazard and to maintain 50-60mm distance from wall for full length of rail.
• Can be mounted on left or right hand side during installation
• Suitable for NCC building classifications 1, 2, 3 and 5-9 including; Aged Care, Hotels, Public Bathrooms, Offices, Multi Res, Residential Houses
• Stylish design suits modern bathroom accessories and Nero's Tapware and Accessories collection in over 7 finishes including Chrome, Matt Black, Gunmetal, Brushed Nickel, Bronze, Gold
• Easy retrofit for style upgrades in existing buildings. The wall brackets cover standard grab rails making it an easy retrofit without the need to patch holes
• Modular design can be cut to size during installation
• Rail and end bracket colours are interchangeable to improve visual contrast, Optional add on toilet roll holder attaches to the 32mm rail
• Stainless Steel material manufactured by Nero Tapware
• Market leading warranty on product and finishes

Installation Instruction:

1. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall refer left picture. (minimum 2 supplied screws per bracket).
Tip: Rail height is 790mm above the ground.

2. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm hole for wall plugs.

3. Apply small amount of silicon to mounting brackets and wall in and around the screw holes.

4. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

5. Disassemble parts firstly.
(a)Make a marker at 390mm of rail, slide the 32mm ring onto the marker of rial tubes and tighten the M4 screw by allen key.
(b)Fix the 16mm rod to the ring with M4 screw.
(c)Install the 25mm rial onto 16mm rod by screw

6. Slide rail tubes into end brackets and push onto wall brackets.
Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

7. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

8. Finished.
Tip: Optional add on toilet roll holder attaches to the 25mm rail.
