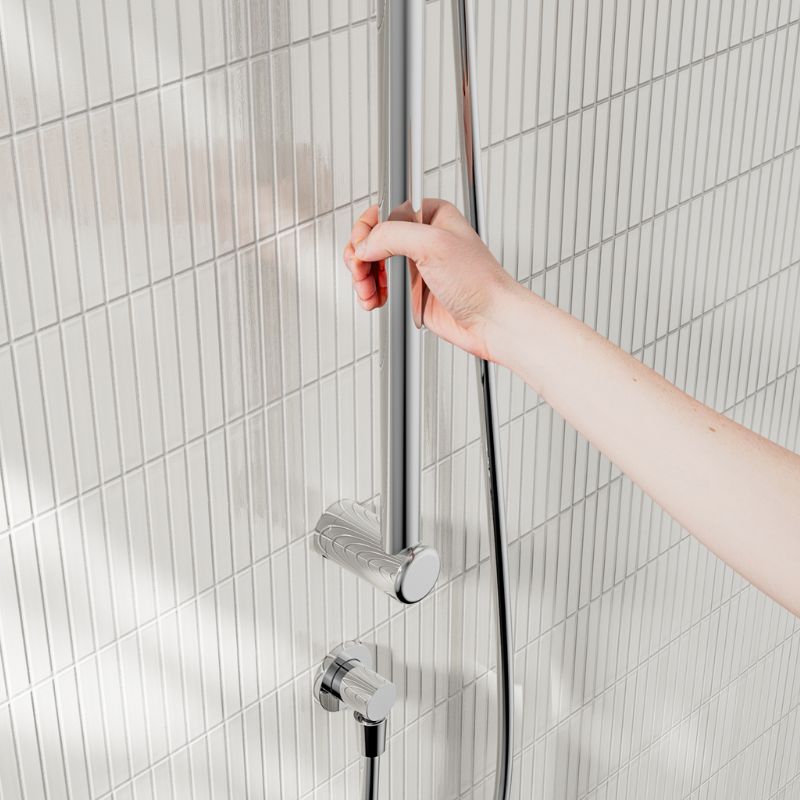

Calibre Mecca 32mm Grab Rail And Adjustable Shower Rail Set 900mm Chrome - NRCS005CH

Regular price $440.00
Regular price $440 Sale price $440
Sale Sold out
Tax included. Shipping calculated at checkout.
Are you a trade member? Sign in for trade orders.

Need a Quote?

Generate a quote for this product by adding your email below OR generate a quote based on all items in your cart


Create Quote

  • 900 grab rail and shower set, multifunction 3 star 9 litre per min hand shower head Lic 1632, adjustable rail slider, wall outlet, 1.5m hose
  • 32mm Diameter Rail
  • Flow Rate: 3 Star 9L/min
  • WELS Registration No: S17575
  • AS1428.1 Approved
  • 150kg Capacity
  • Material: Stainless Steel
View full details

Description

  • 900 grab rail and shower set, multifunction 3 star 9 litre per min hand shower head Lic 1632, adjustable rail slider
  • Flow Rate: 3 Star 9L/min
  • WELS Registration No: S17575
  • AS1428.1 Approved
  • Material: Stainless Steel
  • Adjustable 9 litres per minute air shower head with multiple settings, WELS 3 Star Rating, Watermark WM-06009
  • Simple push button or twist adjustment for shower head height
  • 1.5m Flexi Stainless Steel Shower Hose
  • Wall water outlet with aditional shower head holder, mounting brackets and wall screws included.
  • The rails can be shortened during installation to suit you
  • 150 kg capacity for all 32mm diameter calibre grab rails
  • Calibre Mecca 32mm diameter rails are approved for standard AS1428.1 requirements in DDA bathrooms
  • Additional options include: Soap Basket, 1m or 2m Flexi Shower Hose, Shower Head Wall Bracket

Assembly and CAD

Installation Guide Calibre Mecca 32mm Grab Rail And Adjustable Shower Rail Set 900mm

Download

3D CAD BIM Calibre Mecca 32mm Grab Rail And Adjustable Shower Rail Set 900mm

Download

Install Advice

Installation Instruction:

1. Put teflon tape onto outlet thread.

2. Slide plate onto elbow.

3. Screw elbow onto outlet.

4. Locate wall studs, install into at least one stud. Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall.

5. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm hole for wall plugs.

6. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

7. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

8. Slide the shower slider onto rail, then slide rail tubes into end brackets and push onto wall brackets, refer to above picture.
Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

9. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

10.Connect hand shower and elbow by shower hose.
Tip: There are two rubber washer in the shower hose.

11. Test and check for leaks.
