Calibre Mecca 32mm Grab Rail Make Your Own Corner Wrap Bracket Brushed Bronze (Available Early January) - NR5390431BZ

• The wrap around rail is a great option for showers as you turn and bend to wash.

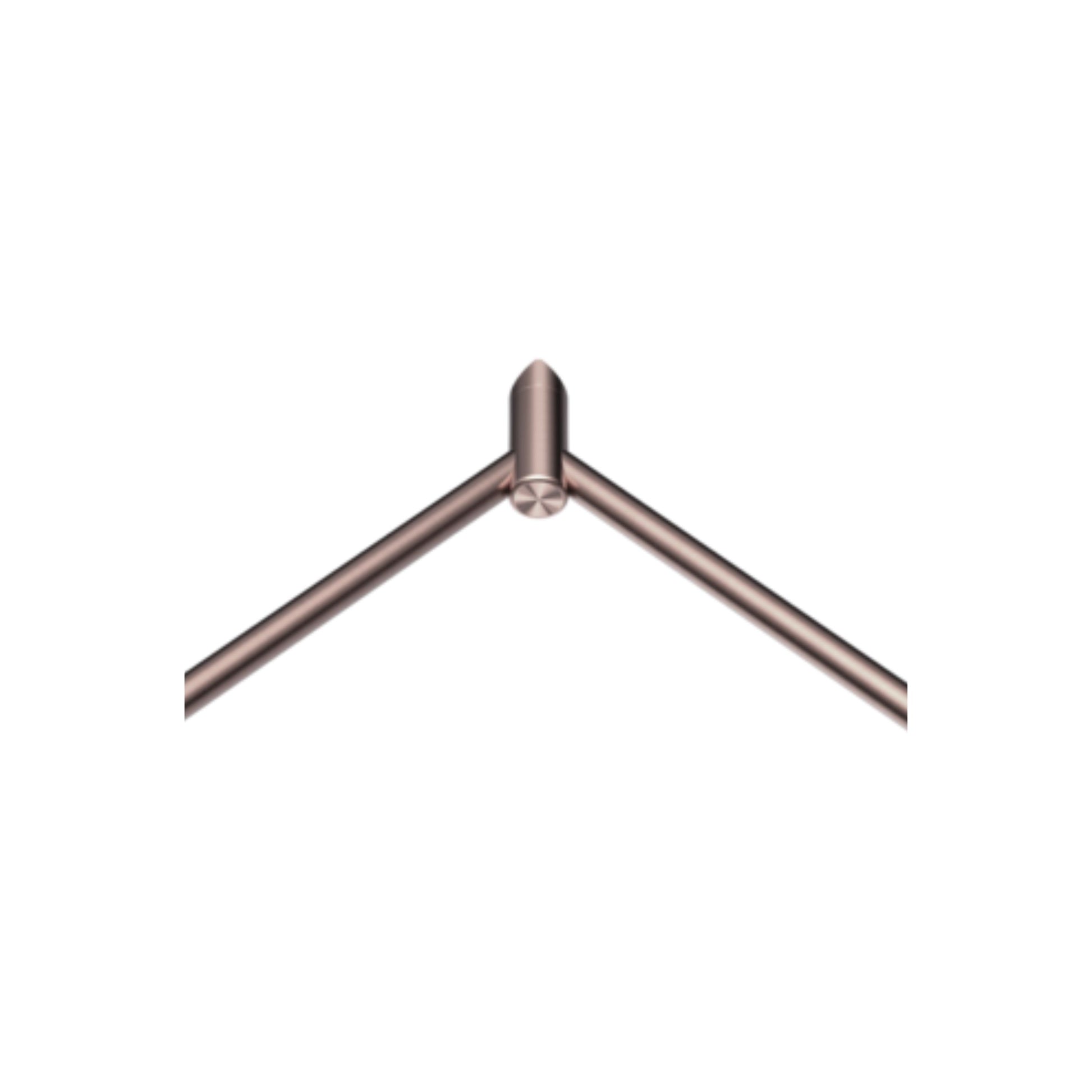

• This bracket mounts into the corner and comes out at a 45 degree angle allowing two rails to join at the corner.
• 150kg capacity when installed into a supported wall, the corner always has wall studs so it is a strong location for mounting brackets.
• Suits 32mm grab rails
• Formerly product code: NR01BMWBZ

Install Advice:

Installation Instruction:

1. Unscrew the grub screw and remove the mounting bracket. Then loosen or remove the grub screw from the end bracket.

2. Drill two 8mm diameter mounting holes in the wall where the end bracket is to be installed.

3. Fix the mounting bracket to the wall using the expansion plugs and the self-tapping screws.

4. Insert the grab rail fully into the end bracket, then tighten the grub screw to secure the grab rail in place.

5. Insert the end bracket into the mounting bracket, then tighten the grub screw to secure it.
