Calibre Mecca 32mm Grab Rail Make Your Own End Bracket Brushed Nickel - NR5390427BN

• End bracket for 32mm diameter grab rails
• The ends of the rails slot into the brackets and are secured with from inside the bracket
• 150kg capacity when installed correctly
• AS1428.1 compliant for grab rails
• Includes mounting bracket set with screws and wall plugs

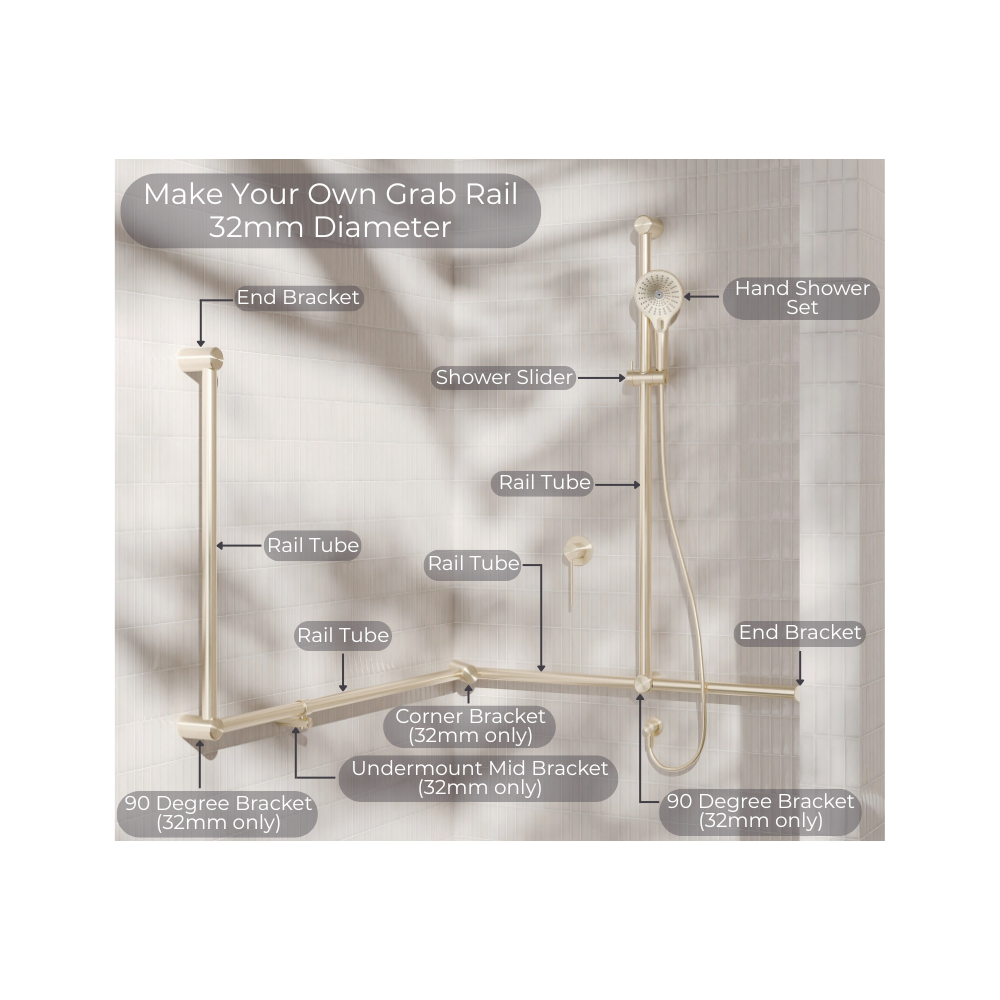

• Can be added to existing Mecca Care grab rail sets to create new combinations
• Formerly product code: NR01BEBN

Install Advice:

Installation Instruction:

1. Unscrew the grub screw and remove the mounting bracket. Then loosen or remove the grub screw from the end bracket.

2. Drill two 8mm diameter mounting holes in the wall where the end bracket is to be installed.

3. Fix the mounting bracket to the wall using the expansion plugs and the self-tapping screws.

4. Insert the grab rail fully into the end bracket, then tighten the grub screw to secure the grab rail in place.

5. Insert the end bracket into the mounting bracket, then tighten the grub screw to secure it.
