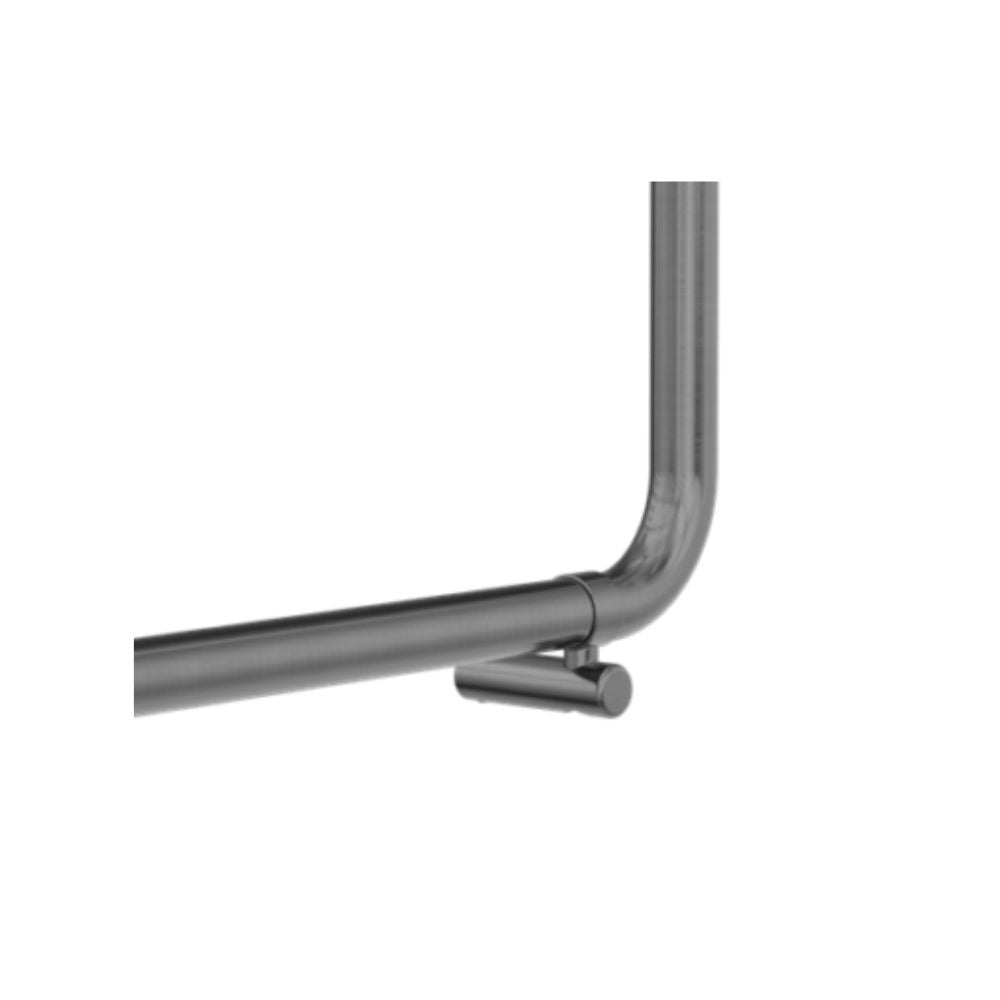

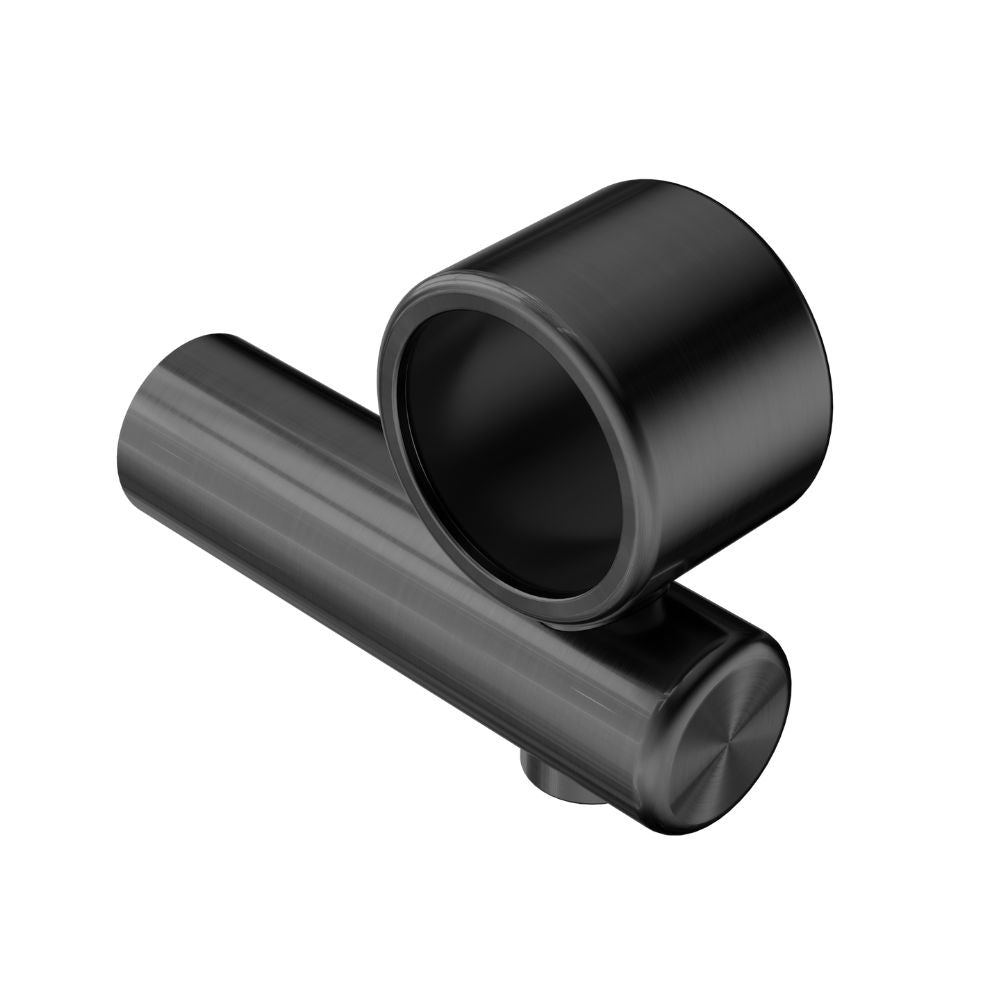

Calibre Mecca 32mm Grab Rail Undermount Mid Bracket Gun Metal - NR5390429GM

• Undermount Mid Bracket for 32mm Diameter Grab rails
• The rail can either join inside this bracket or slide through the bracket
• 150kg capacity when installed correctly
• AS1428.1 Compliant for Grabrails and Handrails
• Includes Mounting Bracket set with screws and wall plugs
• Can be added to existing Nero Grab Rail sets to create new combinations
• Formerly product code: NR01BMUGM

Install Advice:

Installation Instruction:

1. Unscrew the grub screw and remove the mounting bracket from the mid bracket.

2. Mark and drill a Ø8mm hole at the desired bracket location.
Note: Ensure the grab rail will sit horizontally once installed.

3. Secure the mounting bracket to the wall using supplied expansion plug and the self-tapping screw.

4. Slide the 32mm grab rail through bracket sleeve.

5. Insert the mid bracket into the mounting bracket , then tighten the grub screw to secure it.

6. Remove the socket head cap screw from the support tube. Tighten grub screw inside the support tube to lock the grab rail in place.
Reinstall and fully tighten the socket head cap screw.
