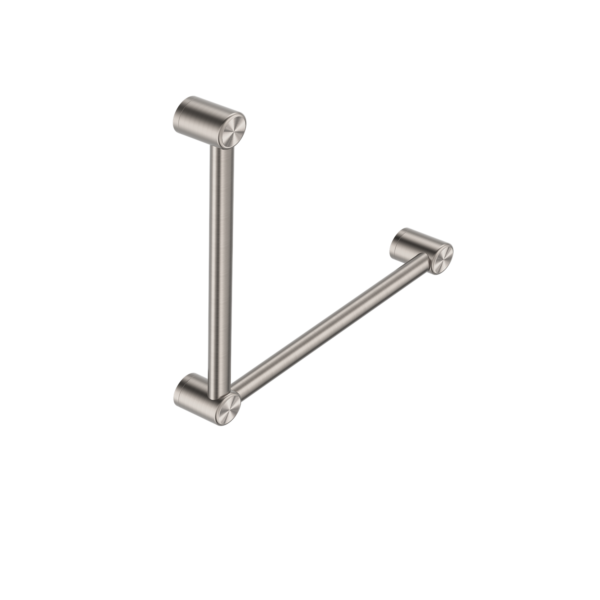

Calibre Mecca 32mm New Zealand Toilet Grab Rail 90 Degree 750x750mm Brushed Nickel - R01A7575BN

• Material: Stainless Steel
• 750mm in each direction
• 150kg Capacity

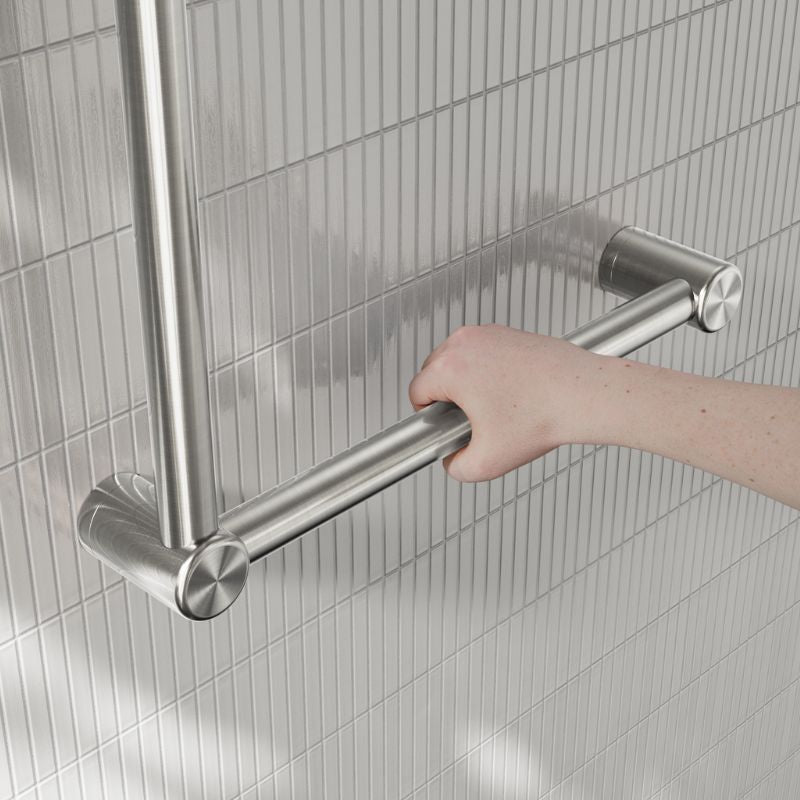

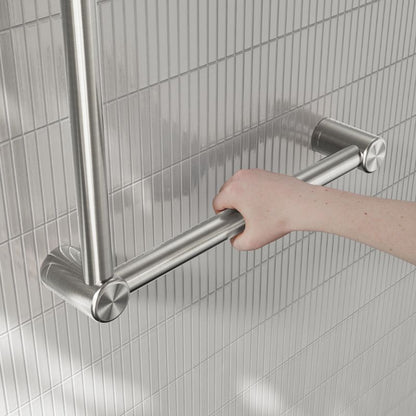

• Can be used by the toilet or in the shower to help get on and off the toilet or from a shower seat
• Compliant for New Zealand standard NZ4121

Installation Instruction:

1. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall. (minimum 2 supplied screws per bracket).
Tip: Rail height is 790mm above the ground.

2. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm hole for wall plugs.

3. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

4. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

5. Slide rail tubes into end brackets and push onto wall brackets.
Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

6. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

7. Finished.
