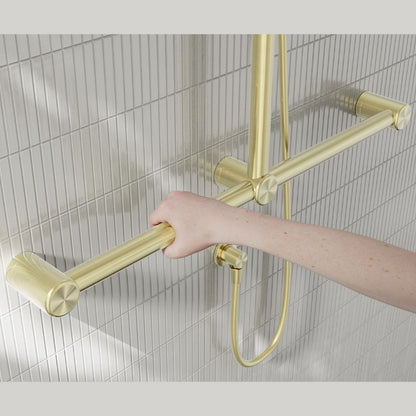

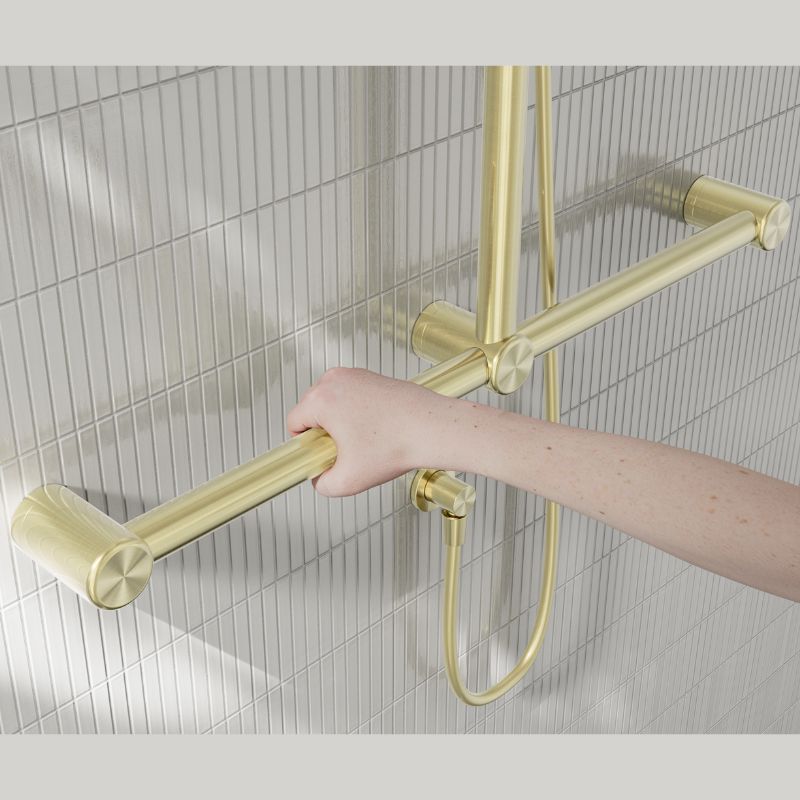

Calibre Mecca 32mm T Bar Grab Rail And Adjustable Shower Set 1100x750mm Brushed Gold - NRCS006BG

• 1100x750 grab rail set, Shower set including: multifunction 3 star 9 litre per min hand shower head Lic 1632, 32 mm adjustable rail slider, wall outlet, 1.5m hose
• The horizontal offset ensures the shower seat can be installed in the correct location as per AS1428.1 without clashing with the shower seat
• 150 kg capacity for all 32mm diameter calibre grab rails
• Horizontal rail can be offset from vertical during installation for left or right hand
• WELS Rating：9L/Min, 3 Star
• WELS Registration No: S17576
• Material: Stainless Steel (suitable for medical environments)
• Adjustable 9 litres per minute air shower head with multiple settings, WELS 3 Star Rating, Watermark WM-06009
• Simple twist adjustment for shower head height
• 1.5m Flexi Shower Hose
• Wall water outlet and mounting brackets and wall screws included.
• The rails can be shortened during installation to suit you
• Calibre Mecca and Terra 32mm diameter rails are approved for standard AS1428.1 requirements in DDA bathrooms
• Custom options may be available on request

Installation Instruction:

1. Put teflon tape onto outlet thread.

2. Slide plate onto elbow.

3. Screw elbow onto outlet.

4. Locate wall studs, install into at least one stud. Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall.
Tip: Rail height is 790mm above the ground.

5. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm
hole for wall plugs

6. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

7. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

8. Slide the shower slider onto rail, then slide rail tubes into end brackets and push onto wall brackets.
Tip: Horizontal rial or vertical rail can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

9. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

10. Connect hand shower and elbow by shower hose.
Tip: There are two rubber washer in the shower hose.

11. Test and check for leaks.
