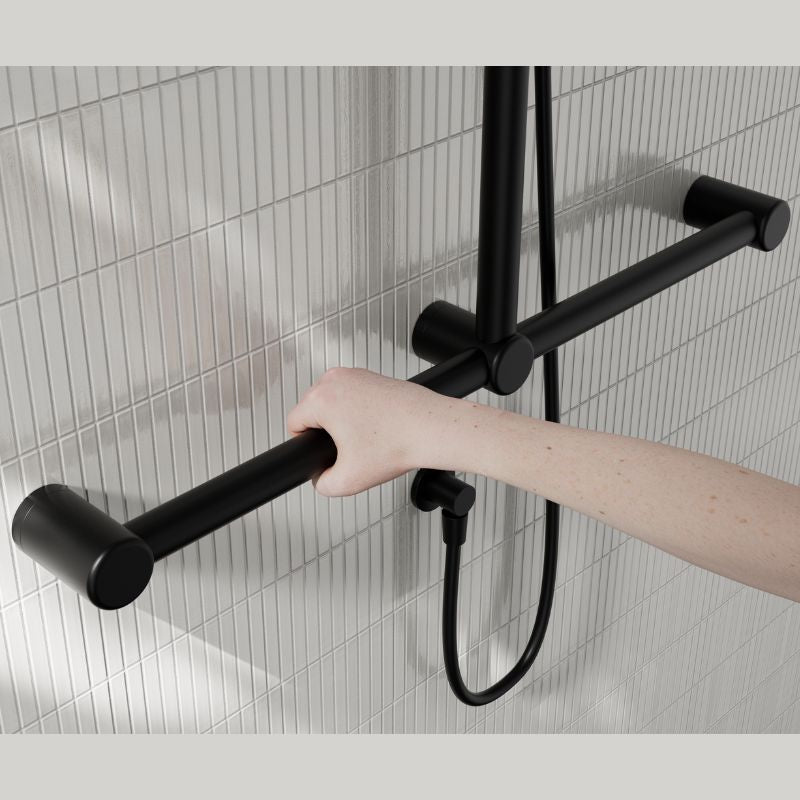

Calibre Mecca 32mm T Bar Grab Rail And Adjustable Shower Set 1100x750mm Matte Black - NRCS006MB

The Calibre Mecca grab rail range combines commercial compliance with style to create a range focused on both commercial and residential builds
Compliant to all AS1428.1 Accessible Shower requirements

• Meets the AS1428.1-2021 requirements for section 12.5.4 Grabrails as shown in Figures 47 and 48. See install instructions for AS1428.1 Position Requirements
  Includes: 1100x750 Grab Rail set, Shower set including: multifunction hand shower head, 32 mm adjustable rail slider, wall outlet, 1.5m hose
• The horizontal rail can be offset to as shown in AS1428.1 to avoid  clashing with the shower seat, see installation instructions for detail
• WELS Rating：9L/Min, 3 Star (4 start available on request)
• WELS Registration No: S17576
• Adjustable 9 litres per minute air shower head with multiple settings, WELS 3 Star Rating, Watermark WM-06009
• Simple twist adjustment for shower head height (extended handle also available)
• 1.5m Flexi Shower Hose
• Wall water outlet and mounting brackets and wall screws included
• Product conformance and test reports as per NCC requirements are available on request
• AS1428.1-2021 compliant for grab rail requirements including section 14:
  - 30-40mm grab rail diameter for the full length of the rail
  - 5mm minimum radius on all exposed corners and edges
  - 150kg (1470N) capacity at any position and direction
  - 50-60mm distance from wall and brackets maintained for full length of rail
  - Clearance for hand passage is continuous for the full length of each rail, continuous passage is only required for the top 270 degree arc of horizontal and angled sections and the full 360 degree of vertical sections, not at the change in directions, this is consistent with all international standards including ISO 21542 Building Accessibility
  - Grab rail has passage of the hand for the full 270 degree of horizontal and angled sections and 360 degree passage for vertical sections of the rail as per AS1428.1 requirements
  - Ends of rails are enclosed inside wall brackets to remove potential hazard and to maintain 50-60mm distance from wall for full length of rail.
• Horizontal rail can be offset to left or right hand side during installation
• Suitable for NCC building classifications 1, 2, 3 and 5-9 including; Aged Care, Hotels, Public Bathrooms, Offices, Multi Res, Residential Houses
• Stylish design suits modern bathroom accessories and Nero's Tapware and Accessories collection in over 7 finishes including Chrome, Matt Black, Gunmetal, Brushed Nickel, Bronze, Gold
• Easy retrofit for style upgrades in existing buildings. The wall brackets cover standard grab rails making it an easy retrofit without the need to patch holes
• Modular design can be cut to size during installation
• Rail and end bracket colours are interchangeable to improve visual contrast, Optional add on toilet roll holder attaches to the 32mm rail
• Stainless Steel material manufactured by Nero Tapware
• Market leading warranty on product and finishes

Installation Instruction:

1. Put teflon tape onto outlet thread.

2. Slide plate onto elbow.

3. Screw elbow onto outlet.

4. Locate wall studs, install into at least one stud. Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall.
Tip: Rail height is 790mm above the ground.

5. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm
hole for wall plugs

6. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

7. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

8. Slide the shower slider onto rail, then slide rail tubes into end brackets and push onto wall brackets.
Tip: Horizontal rial or vertical rail can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

9. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

10. Connect hand shower and elbow by shower hose.
Tip: There are two rubber washer in the shower hose.

11. Test and check for leaks.
