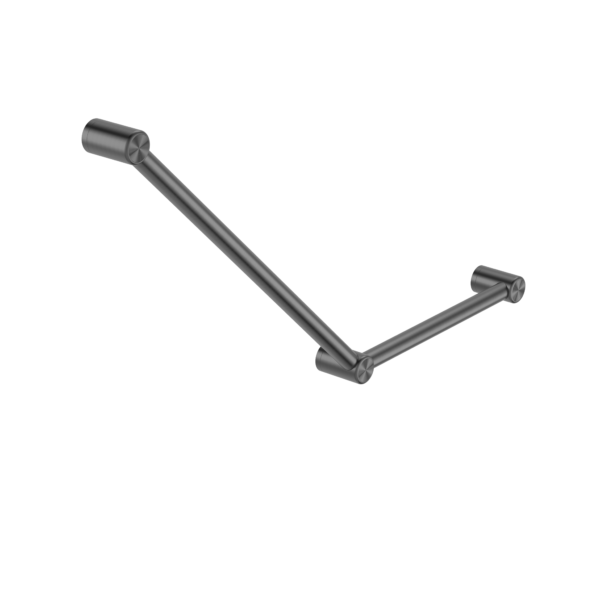

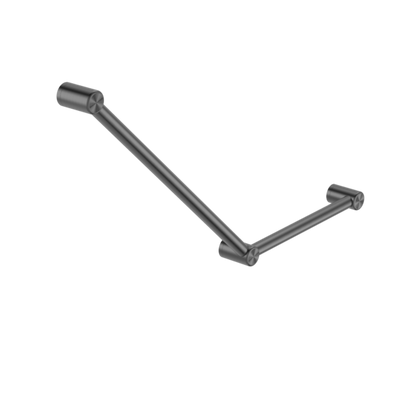

Calibre Mecca 32mm Toilet Grab Rail 45 Degree 750x450mm Gun Metal - NRCR3245AGM

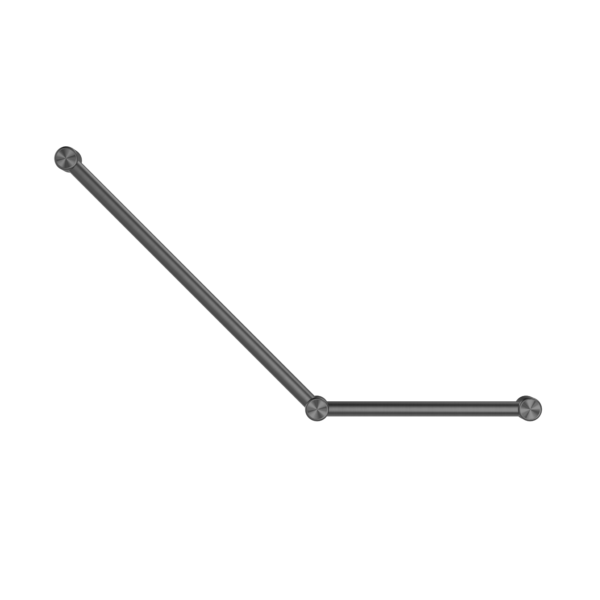

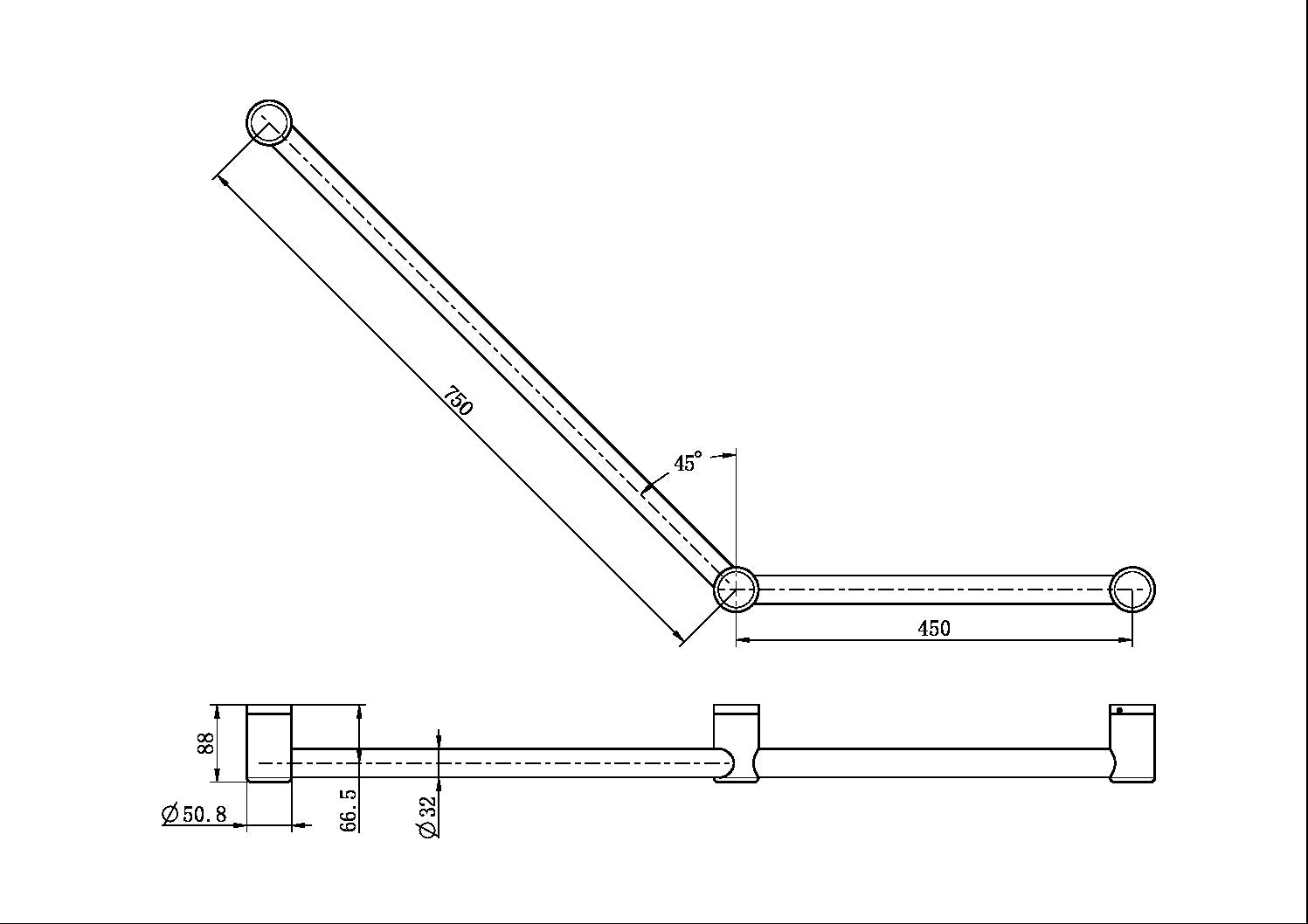

• 450 Horizontal x 750mm Angled Rail
• Material: Stainless steel
• Australian Owned and Designed
• Can be mounted on left or right hand side
• Optional add on toilet roll holder attaches to the 32mm rail
• Available in over 7 finishes including Living Brass, Chrome, Matt Black, Gunmetal, Brushed Nickel, Bronze, Gold
• Modular design, the rail to be mounted horizontally, vertically or at any angle and cut down to suit your bathroom
• 150kg capacity for all 32mm diameter calibre grab rails

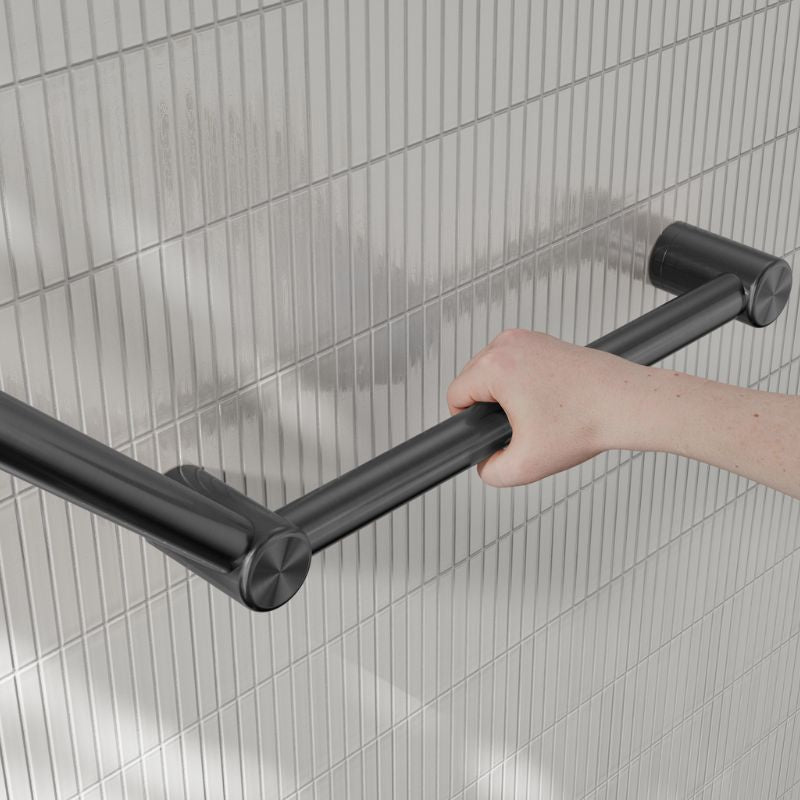

• Can be used by the toilet or in the shower to help get on and off the toilet or from a shower seat
• Suited to assisted living bathrooms

Installation Instruction:

1. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall refer left picture. (minimum 2 supplied screws per bracket).
Tip: Rail height is 790mm above the ground.

2. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm hole for wall plugs.

3. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

4. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

5. Slide rail tubes into end brackets and push onto wall brackets.
Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

6. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

7. Finished.
