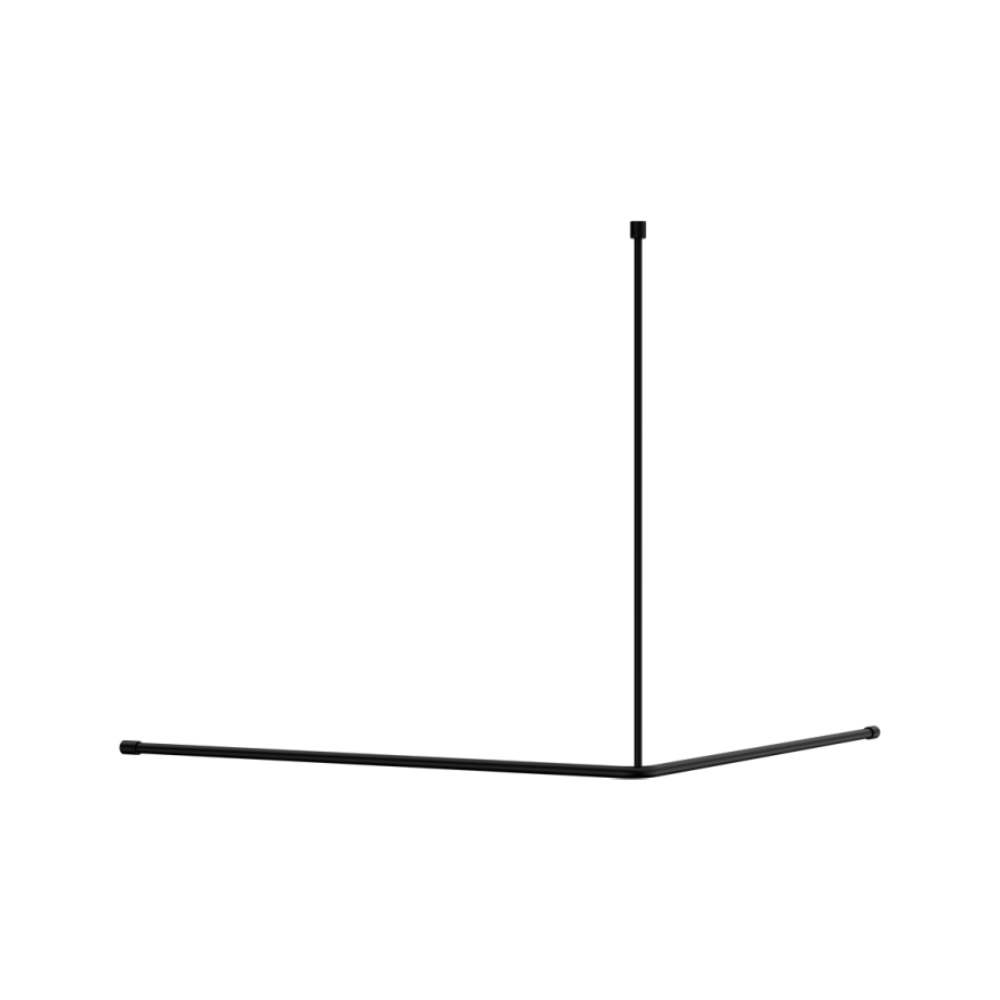

Calibre Mecca Curtain Rail 1200x1200mm 90 Degree Matte Black - NRCR0006MB

• 22mm Diameter 1200x1200x1000 90 Degree Curtain Rail Suits Up To 3m Ceiling Height
• Easy install, modular rails can be cut down in each direction during installation
• Compliant for both AS1428.1 Wheelchair Accessible/DDA/PWD/Disabled Showers and also standard Bathrooms
• Suits all standard hookless curtains or regular shower curtain hooks (curtains and hooks not included)
• You can install either two curtains to fully enclose the shower or a single curtain for one end open walk in showers
• Can also be used in wardrobes and rooms as clothes hanging rails/racks
• Stainless Steel base material suitable for homes, Aged Care, Medical Centres, Schools, Public Showers and more
• Available in 6 colours

Install Advice:

Installation Instruction:

1. Assemble the three rods onto the L-shaped elbow. Hold the rail against the intended wall and ceiling position. Mark all screw locations.

2. Disassemble Components.
Note: Ensure each screw is kept with its original mounting part to avoid confusion during reassembly.

3. Drill Ø10mm holes at the marked positions.
Insert the supplied expansion plugs. Then, secure the wall mounting bracket and ceiling mounting bracket using the provided self-tapping screws.

4. Reinsert the rods into the L-shaped elbow.
Attach the rods to the mounting brackets using the
screws and grub screws.

5. Confirm all connections are tight. Ensure the rail is stable and aligned.
