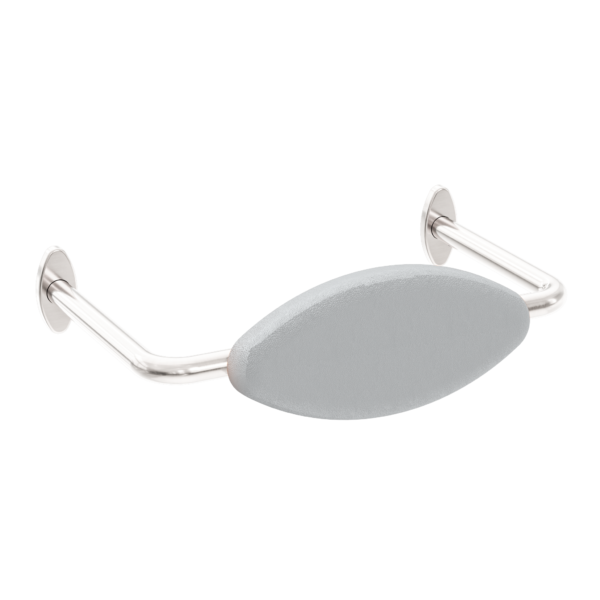

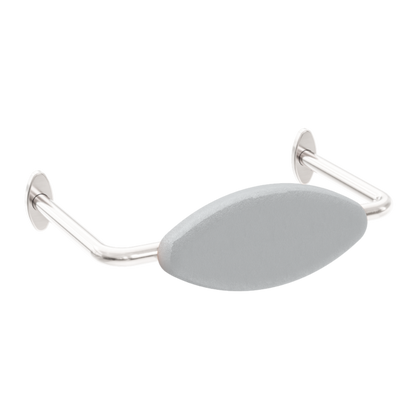

Calibre Mecca DDA Accessible Toilet Backrest Removable Brushed Nickel - NRCR0001BN

• AS1428.1 Approved for DDA Bathrooms, see diagram for correct install position as required for AS1428.1 compliance.
• Australian owned and designed
• High quality, high strength materials and finishes
• Backrest cushion available in satin white or black, standard shape is oval but also available in rectangular upon request
• Wall bracket and rail are available in a range of standard or custom finishes
• Comfortable waterproof cushion
• 110kg capacity in each direction
• Suitable for installation with all 800mm toilet pans including these:
  - Toilet Suite 800mm Pan AS1428.1 DDA Accessible With Raised Grey Button – Avail Design
  - Toilet Pan 800mm AS1428.1 DDA Accessible - Grey Seat - HDC692-HEBTG – Avail Design
  - Toilet Raised Flush Button Panel AS1428.1 DDA Accessible Pneumatic for – Avail Design

Install Advice:

Installation Instruction:

1. Before beginning installation, ensure that the wall is suitable for installing the backrest. Place the wall fixing plate on the wall at the correct height over the center of a stud and mark hole positions on the wall.

Tip: The backrest should be installed at a height of 690-710mm above ground level.

2. Drill pilot holes into the wall stud to a depth of approximately 60mm in order to accommodate mounting screws (and wall plugs if necessary).

Tip: Use 3mm hole for screws into timber or 8mm hole for wall plugs.

3. Reapply a small quantity of silicone to the wall fixing plate and the surrounding areas of the screw holes.

4. Slide the cover plate onto the rail, followed by inserting the wall fixing plate into the rail and securing it with a washer and grub screw.

5. Tighten the backrest onto rail by washer and screws.

6. Secure the wall mounting plate and rails onto the wall.

7. Reposition the cover plates onto the wall fixing plate and secure them by tightening the grub screw with an Allen key.

8. Finished.

9. Backrest can be removed, if you want. Loosen screws on rails and screws on cover plates. And take off rail and plates.

10. Loosen the screws on brackets. Then you can take off the backrest.
