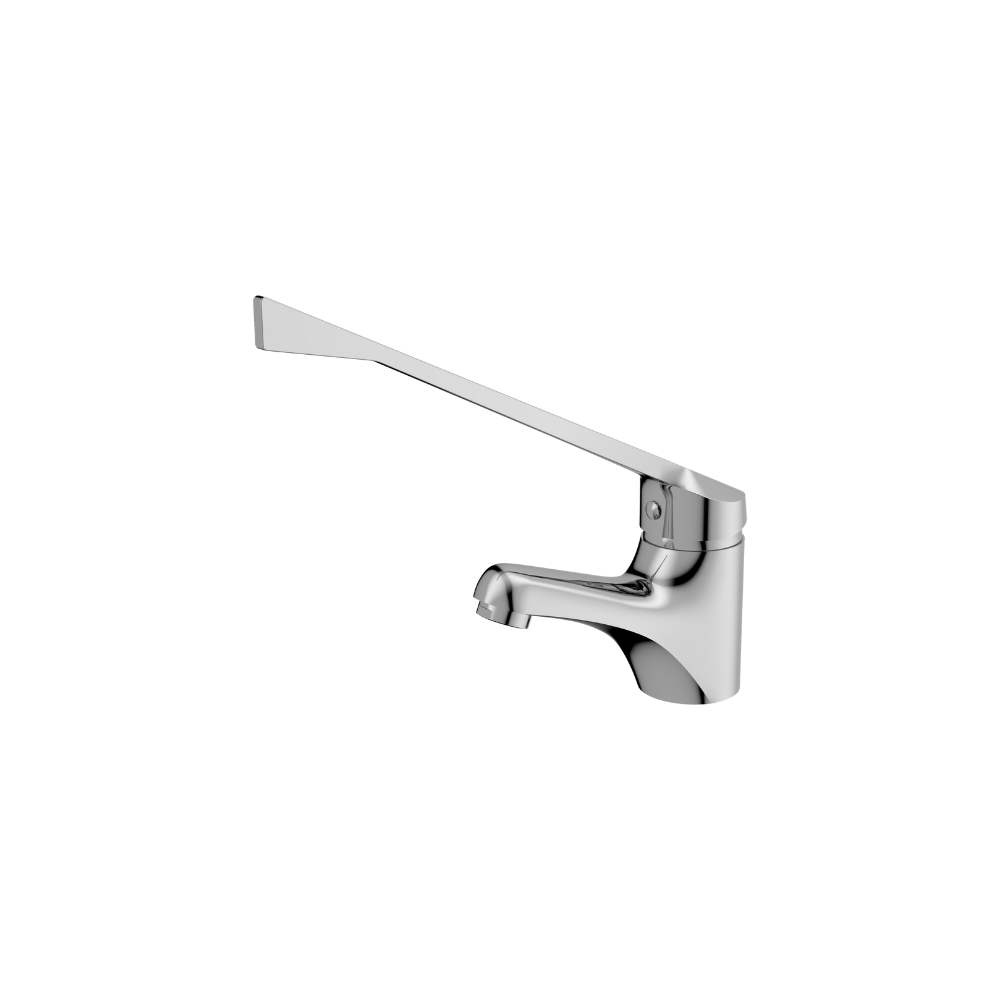

Classic Care Basin Mixer Extended Handle Chrome - NR110001eCH

• Material: Lead Free DZR Brass
• WELS Rating: 6 Star, 4.5L/min
• WELS Registration Number: T43043
• 40mm ceramic disc cartridge can be adjusted to control water temperature and flow control settings, saving energy
• Solid brass construction for longevity
• Neoperl aerator with slim stream flow director
• Stainless steel pex flexible hoses-1/2bsp female
• Suitable for mains pressure installation
• Comply to as1428.1 2009 Amdt 1 design for access and mobility requirements
• Two screws for securing onto the basin

Install Advice:

Installation Instruction:

1. Fit the base plate with o-ring in the underside of the mixer body.

2. Screw the flexible hoses and fixing thread into the mixer body and fully hand tighten.

3. Pass the tail of flexible pipes through the hole on the basin from above, and place the mixer in position on the basin. Inspect to see if any alteration to the existing supply pipe work is required. Make any necessary alterations.

4. Tighten the nut onto fixing thread compressing the fixing flange and rubber washer onto the under-side of the counter.

5. Connect the water supply pipes to the tail of flexible hoses with the hot water and cold water.

6. Check for wany water leaks.
