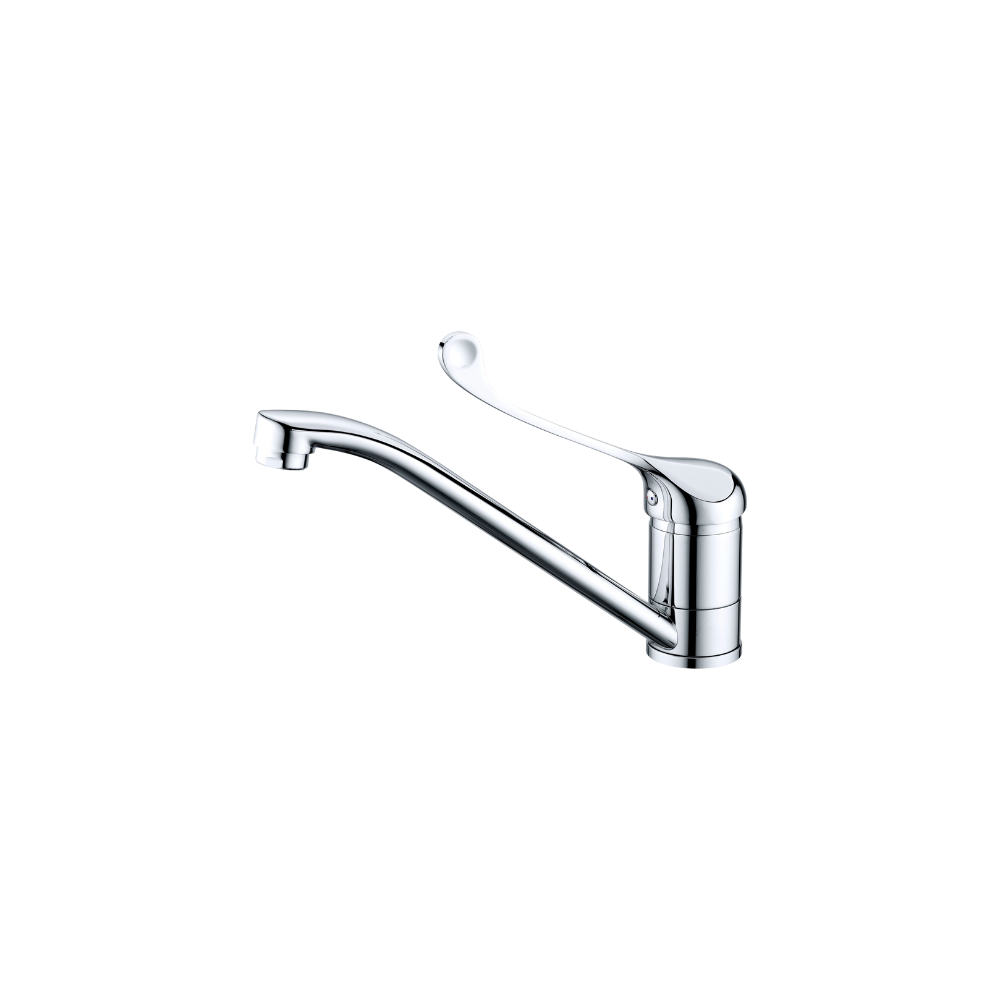

Classic Care Sink Mixer Chrome - NR110007dCH

• Material: Lead Free DZR Brass
• WELS Rating: 4 Star, 7.5 L/min
• WELS Registration Number: T34940
• 40mm ceramic disc cartridge can be adjusted to control water temperature and flow control settings, saving energy
• Solid brass construction for longevity
• NEOPERL aerator with slim stream flow director
• Stainless steel PEX flexible hoses-1/2BSP female
• Suitable for mains pressure installation
• Comply to AS1428.1 2009 AMDT 1 Design for Access and Mobility requirements
• Two screws for securing onto the basin

Install Advice:

Installation Instruction:

1. Screw the flexible hoses into the mixer body and fully hand tighten.

2. Pass the tail of flexible pipes through the hole on the bench top from above, and place the mixer in position on the bench top. Inspect to see if any alteration to the existing supply pipe work is required. Make any necessary alterations.

3. Tighten the fixing nut to treaded pipes compressing the steel washer and rubber washer from the under-side of the counter. Then tighten the 2 screws on the fixing nut.

4. Check that the mixer body is positioned correctly, fully tighten the fixing nut screw and fixing bolts firmly.

5. Connect the water supply pipes to the tail of flexible hoses with the hot water and cold water. Make sure the o-ring in the base ring seals completely around the hole in the mounting surface.

6. Test for any leaks.
