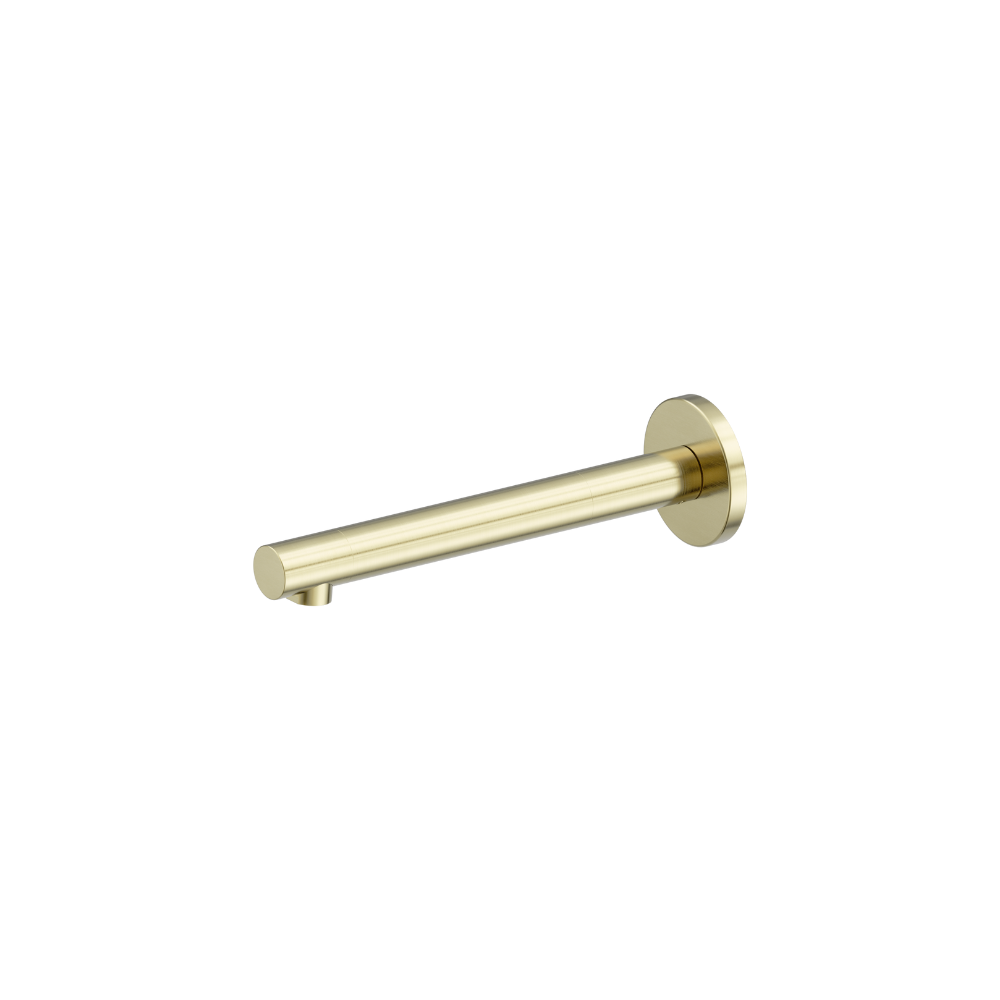

Dolce II Basin/Bath Spout Only Brushed Gold - 25B013BG

• Minimalist design with clean, modern lines
• Made from lead-free 304 stainless steel
• G1/2 female push-fit connection
• Supplied with restricted aerator (standard)
• Includes optional non-restricted aerator for bath use
• Available in 5 different finishes
• 6 Star, 4.5L/min
• T45351

Install Advice:

Installation Instruction:

1. Cut the G1/2 thread to ensure that the product sits flush with the wall after installation.

2. Unscrew the two grub screws, then remove the spout adapter from the spout.

3. Screw the G1/2 spout adapter onto the outlet thread and ensure the flat washer is placed inside.

4. Fit the back plate onto the spout adapter.

5. Place the ABS washer against the back plate.

6. Push the spout onto the spout adapter and secure it by tightening the two grub screws on the underside of the spout using an Allen key. (Ensure the screws are tightened firmly but do not over-tighten)

Note:
The built-in aerator is equipped with an internal flow restrictor, while the extra aerator included in the box does not have one. You can switch them based on your needs.
