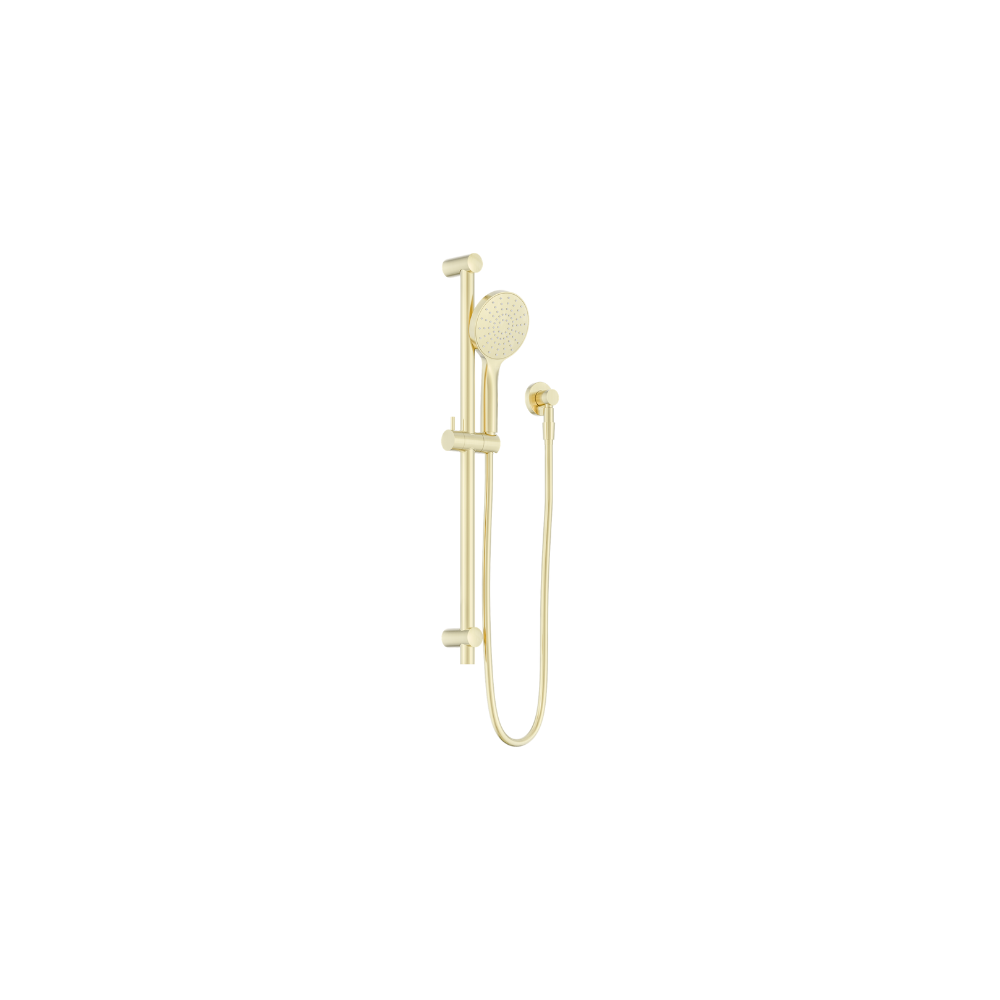

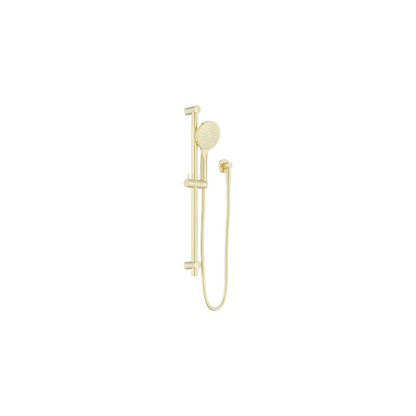

Dolce II Rail Shower Brushed Gold - NR322BG

• Material: Stainless Steel
• WELS Rating:  3 Star, 8L/Min
• WELS Registration No: S45361
• Single-function hand shower
• Adjustable bottom bracket for easy retrofit installation
• Separate elbow for water inlet connection
• 1.5 metre durable PVC hose
• Minimalist design with clean, modern lines
• Available in 5 different finishes

Install Advice:

Installation Instruction:

1. Apply PTFE tape to the outlet thread.

2. Slide the wall plate to the elbow and screw the elbow onto the outlet thread.

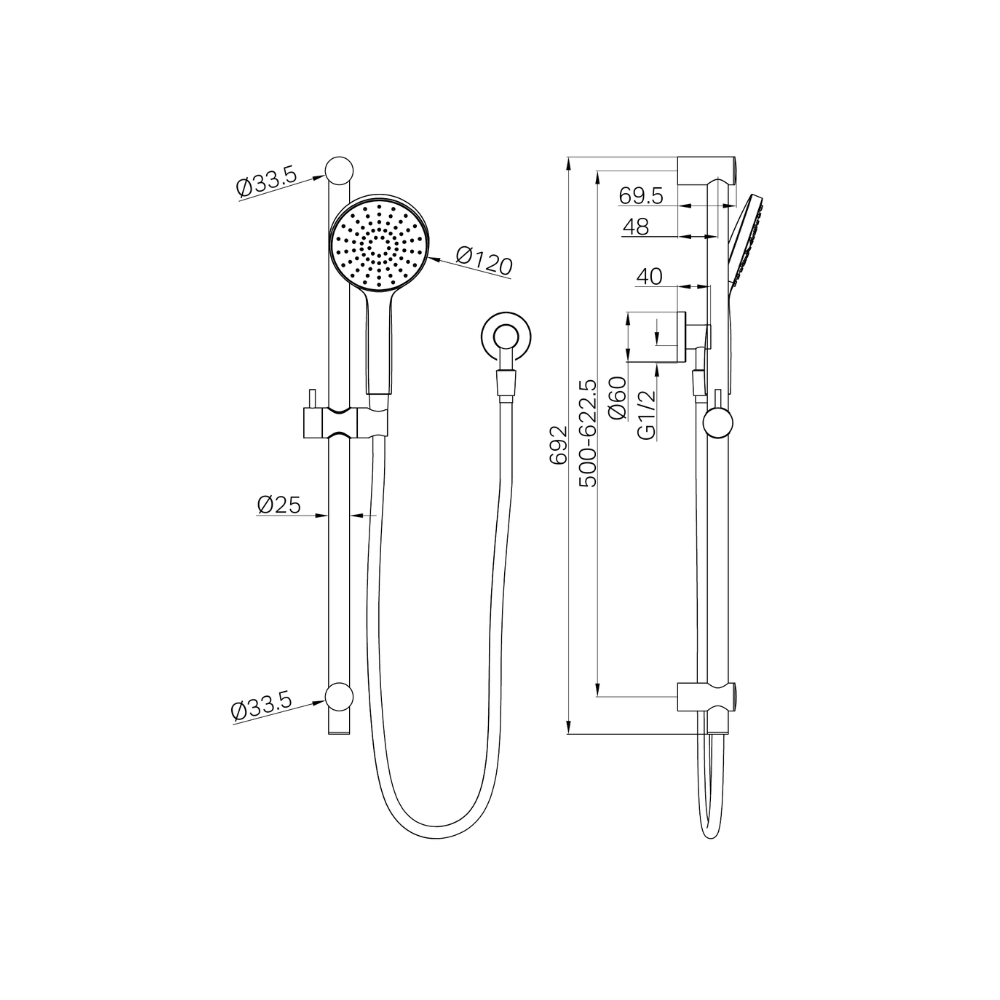

3. Drill two Ø6 mm mounting holes on the same vertical line, 500–620mm apart, push the expansion plugs into mounting holes.

4. Secure the bottom mounting bracket to the wall with self-tapping screw.

5. Insert the rail into two mounting brackets. Secure the upper mounting bracket and rail to the expansion plug using self-tapping screw. Press the covers onto the upper and lower mounting brackets respectively.

6. Connect the hand shower to the elbow using the provided shower hose.
Note: Ensure rubber washers are in place at both ends of the shower hose to prevent leaks.

FINAL INSPECTION
Switch on the water supply and check for any leakage at the joints.
