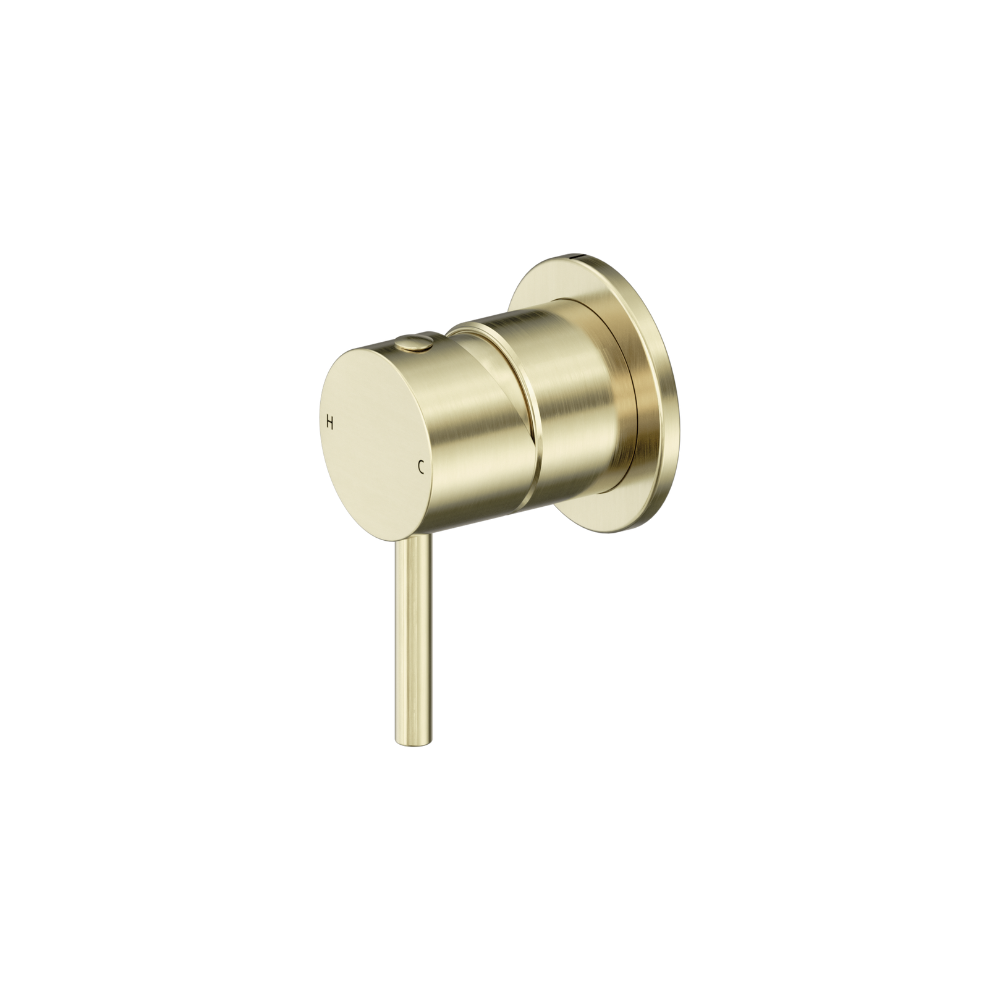

Dolce II Shower Mixer Brushed Gold - 25B010BG

• Minimalist design with clean, modern lines
• Made from 304 stainless steel
• Body and trim kits packed separately
• Suitable for mains pressure systems
• Available in 5 different finishes

Install Advice:

Installation Instruction:

Installation Steps for Body:

1. Secure the mixer body to the nogging, ensuring an installation depth of 51-68mm from the nogging to the ceramic tile.
Note: Do not remove the protective sleeve from the mixer body.

2. Connect the cold and hot water supply lines and perform a leak test.

3. Drill a ø50mm hole in the plasterboard for mixer body installation, and then position the plasterboard.

4. Mark the protective sleeve 4-7mm from the ceramic tile surface to the body and waterproof the gap between the plasterboard and body.

5. Remove the self-tapping screw, washer, and protective sleeve, then cut the protective sleeve at the marked point.

6. Reattach the self-tapping screw, washer, and protective sleeve.

7. Waterproof the gap between the plasterboard and body.

Installation Steps for Trim Kits:

1. Drill a ø50mm hole in the ceramic tile, then position it.

2. Remove the self-tapping screw, washer, protective sleeve.

3. Slide the cartridge bell onto the body and insert the O-ring to the groove of the cartridge bell.

4. Apply waterproof treatment to the area.

5. Tighten the dressing ring onto the cartridge bell.

6. Slide the back plate onto the wall.

7. Insert the handle onto the cartridge stem, unscrew the handle rod, and use a allen key to tighten the grub screw to secure the handle. Then, screw the handle rod back in place.
