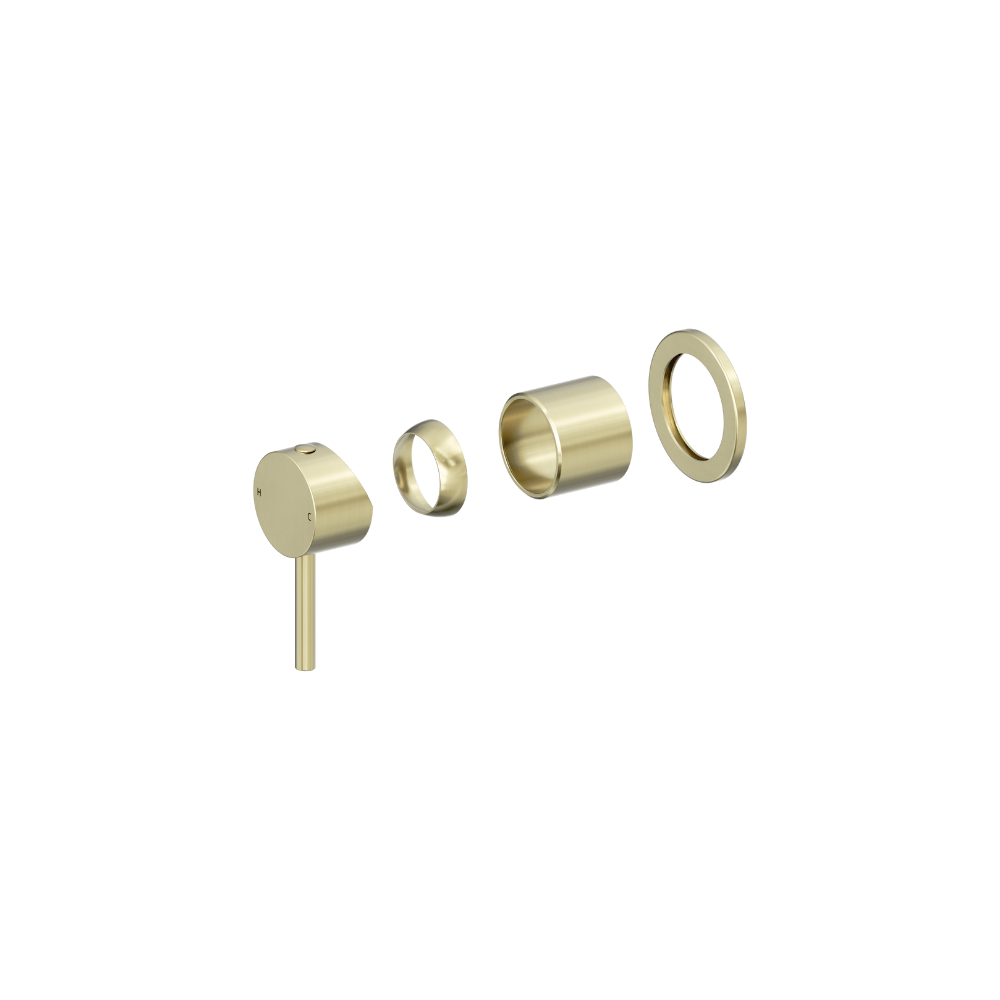

Dolce II Shower Mixer Trim Kits Only Brushed Gold - 25B012BG

• Minimalist design with clean, modern lines
• Made from 304 stainless steel
• Compatible with In-Wall Body NRUB002
• Suitable for mains pressure systems
• Available in 5 different finishes

Install Advice:

Installation Instruction:

Installation Steps for Trim Kits:

1. Drill a ø50mm hole in the ceramic tile, then position it.

2. Remove the self-tapping screw, washer, protective sleeve.

3. Slide the cartridge bell onto the body and insert the O-ring to the groove of the cartridge bell.

4. Apply waterproof treatment to the area.

5. Tighten the dressing ring onto the cartridge bell.

6. Slide the backplate onto the wall.

7. Insert the handle onto the cartridge stem, unscrew the handle rod, and use a allen key to tighten the grub screw to secure the handle. Then, screw the handle rod back in place.
