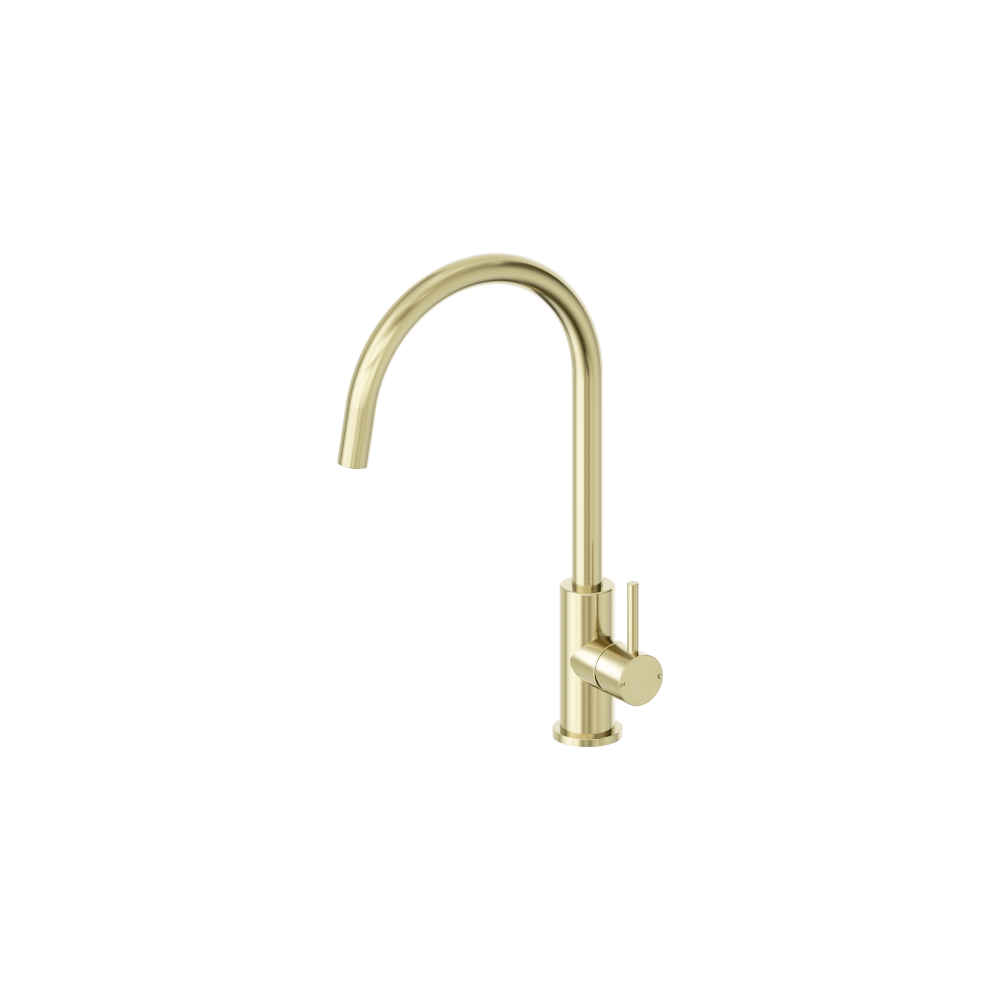

Dolce II Sink Basin Mixer Brushed Gold - 25B003BG

• Elegant, stylish spout design
• Made from durable 304 stainless steel
• Cold start design for energy efficiency
• Suitable for mains pressure use only
• Includes polyamide PEX flexible hose (1/2 BSP female)
• Available in 5 different finishes
• 6 Star, 4.5L/min (5 Star, 6L/min)
• T45335 (T45338)

Install Advice:

Installation Instruction:

1. Pre-drill or create a hole with a diameter of 35mm at the proper location. Please note that the thickness of the surface should be between 3mm-40mm.

2. Pass the flexible hoses through the hole on the benchtop from above, then place the mixer body onto the benchtop.
Ensure the O-ring is fitted inside the base ring and sits flush around the hole for a proper seal.

3. From underneath the benchtop, compress the rubber washer and metal washer against the base using the locking nut(if a stabilizer is required, install the stabilizer after positioning the rubber washer), then tighten the Phillips screws to secure the mixer.
Note: Use the aerator key to remove and replace the aerator as needed.

4. Connect the Pex Hose to the corresponding hot and cold water supply valves. Tighten the Female cone nuts by hand(According to Pex hose instruction). Ensuring they are secure yet not overtightened to avoid thread damage.

5. Check all connections for leaks. If any fittings are leaking, shut off the water as necessary to
stop the leaks. Contact the supplier for warranty claim.
