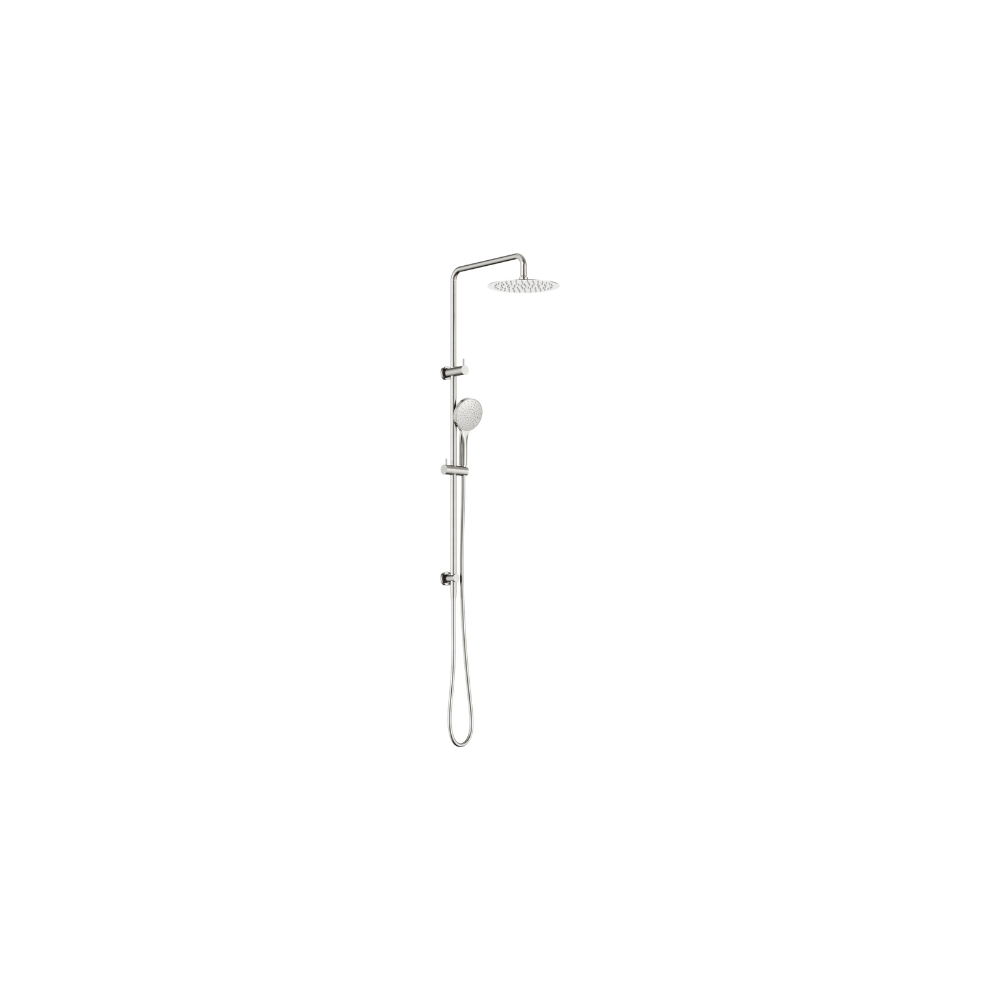

Dolce II Twin Shower Brushed Nickel - NR232105GBN

• Material: Brass
• WELS Rating: Overhead Shower: 3 Star 8L/Min, Hand shower:4 Star 7.5L/Min
• WELS Registration No: S45363
• Built-in top inlet water diverter
• Adjustable bottom fixing bracket for flexible installation
• 250mm metal overhead shower head
• Single-function hand shower with 1.5 metre PVC hose
• Available in 5 different finishes

Install Advice:

Installation Instruction:

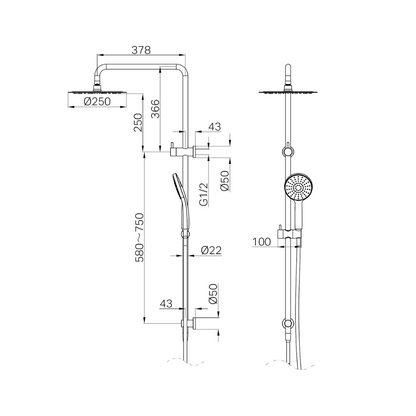

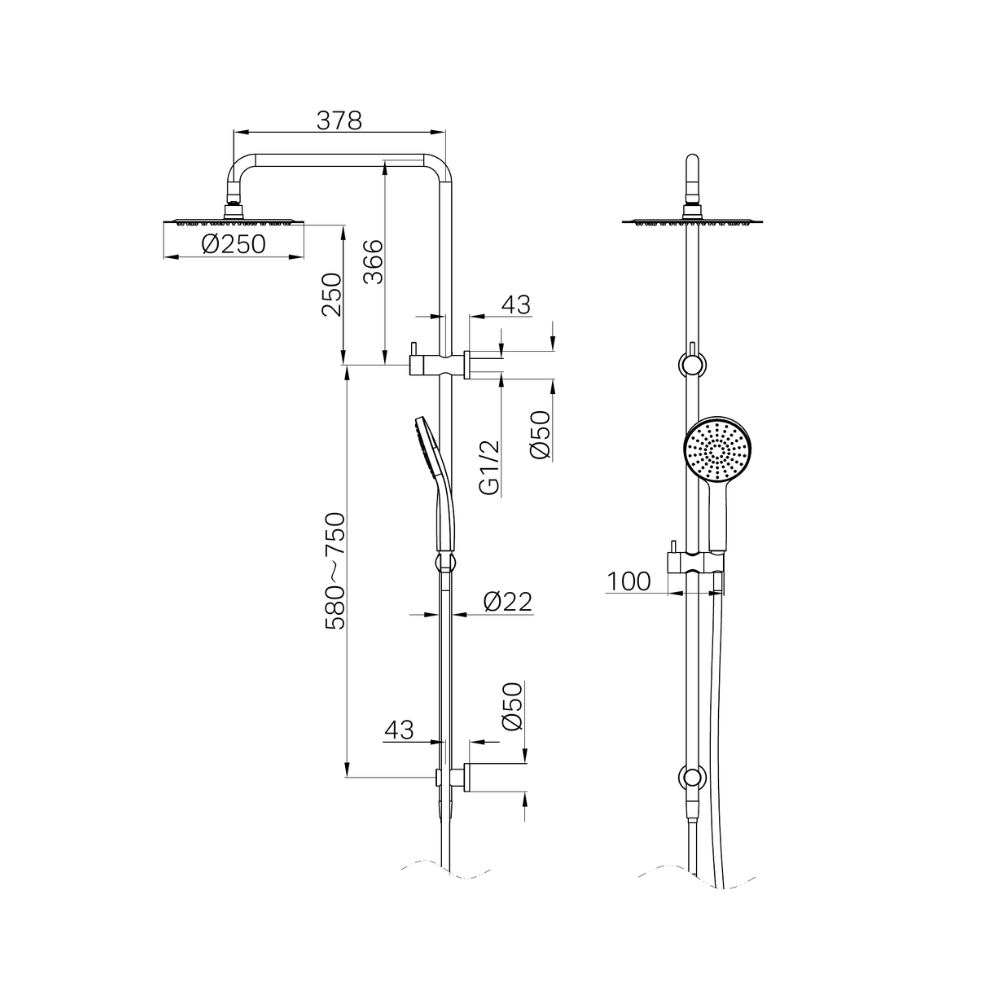

1. Drill a Ø6mm mounting hole 580–754 mm directly below the outlet connector.

2. Apply PTFE tape to the outlet thread to ensure a watertight seal.
Screw the inlet adapter onto the outlet, and secure the mounting bracket to the wall using expansion plug and screw.

3. Screw the shower rail into the diverter bracket.
Slide back plates into diverter bracket and the bottom bracket.

4. Align the diverter with the inlet adapter and the bottom bracket with the mounting bracket, then secure the shower rail to the wall using grub screws.

5. Screw the overhead shower into the shower arm, ensuring a rubber washer is in place for watertight seal.

6. Connect one end of the hose to the bottom of the shower rail and the other end to the hand shower.
Ensure the rubber washers at both ends are not lost during installation.

FINAL INSPECTION
Switch on the water supply and check for any leakage at the joints.
