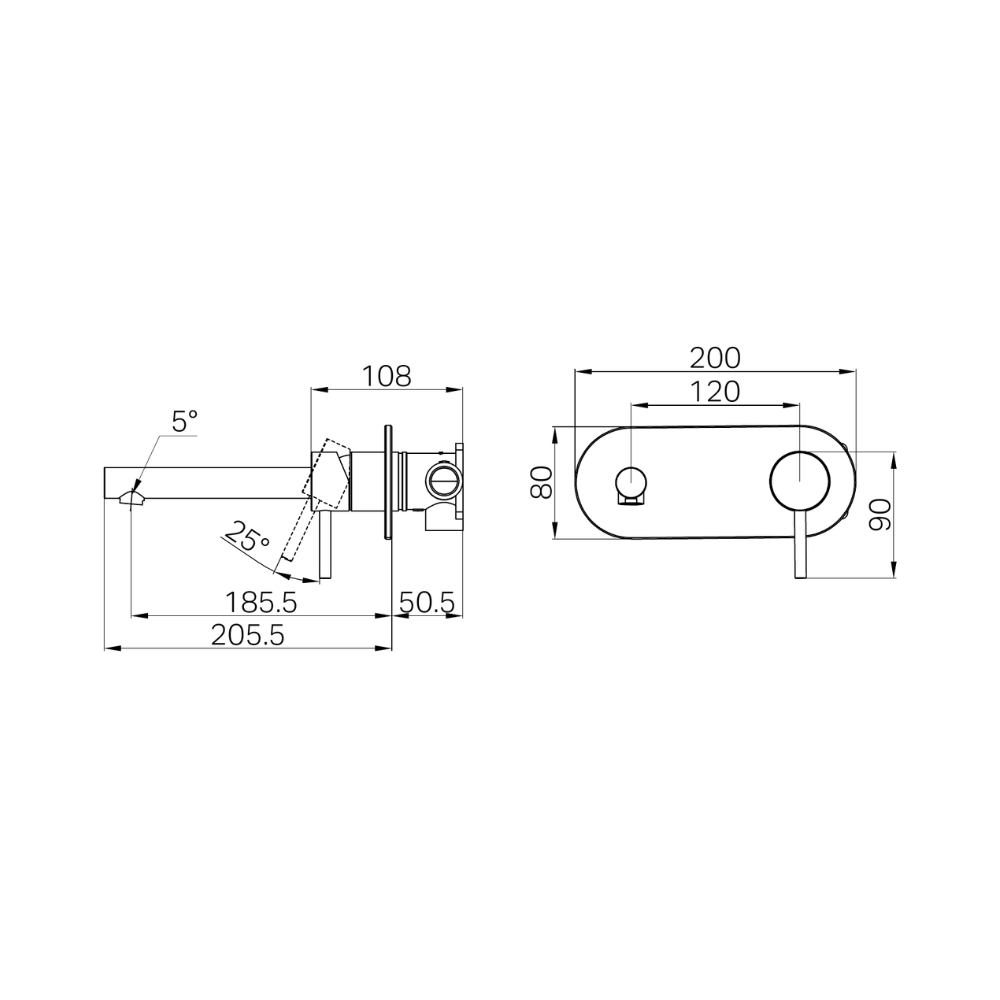

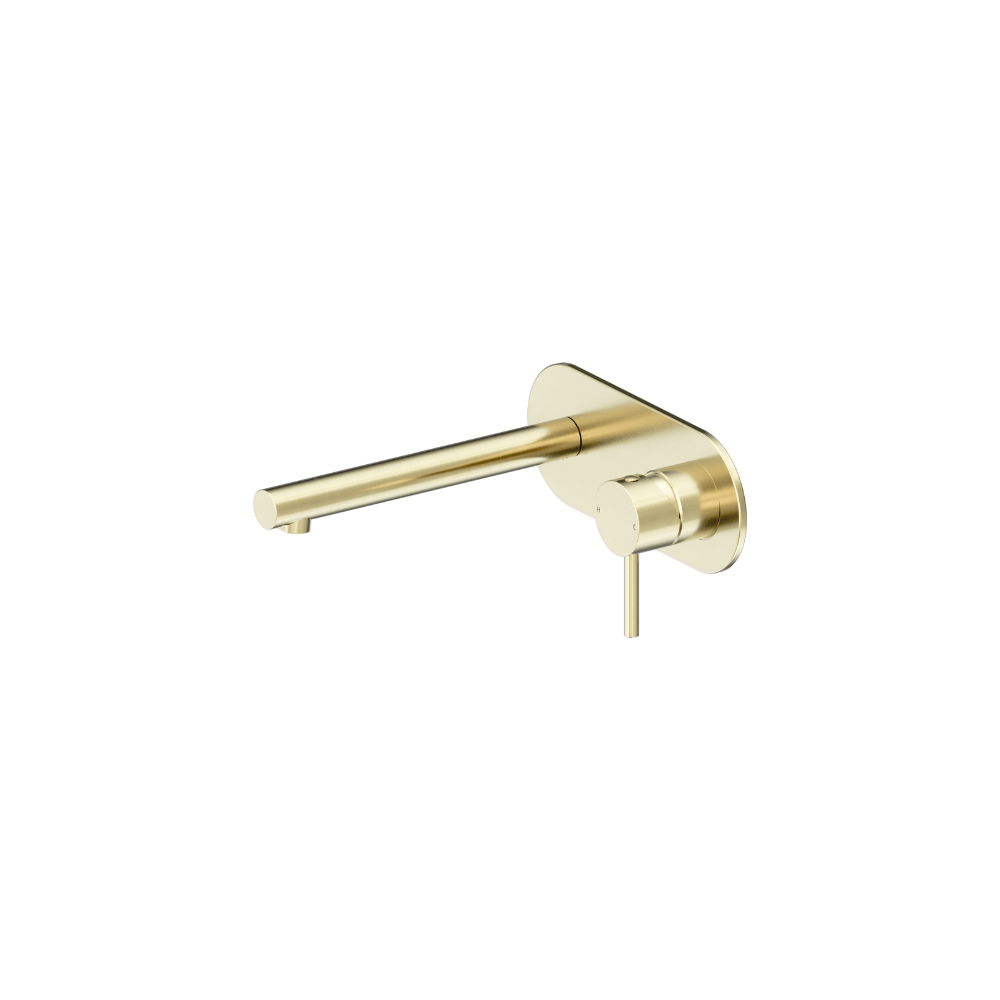

Dolce II Wall Basin/Bath Mixer Brushed Gold - 25B005BG

• Made from lead-free 304 stainless steel
• G1/2 female water inlet connection
• Body and trim kits packed separately
• Suitable for mains pressure systems
• Supplied with restricted aerator (standard)
• Includes optional non-restricted aerator for bath use
• Available in 5 different finishes
• 6 Star, 4.5L/min
• T45349

Install Advice:

Installation Instruction:

Installation Steps for Body:

1. Secure the mixer body to the nogging, ensuring an installation depth of 51-68mm from the nogging to the ceramic tile.
Note: Do not remove the protective sleeve from the mixer body.

2. Connect the cold and hot water supply lines and perform a leak test.

3. Drill a ø50mm and a ø40mm hole in the plasterboard for mixer body installation, and then position the plasterboard

4. Measure 4–7 mm inward from the tile's outer surface and mark the corresponding position on the protective sleeve. Then, waterproof the gap between the plasterboard and body.

5. Remove the self-tapping screw, washer, and protective sleeve, then cut the sleeve at the marked point.

6. Reattach the self-tapping screw, washer, and protective sleeve.

7. Waterproof the gap between the plasterboard and body.

Installation Steps for Trim Kits:

1. Drill a ø50mm and a ø40mm hole in the ceramic tile, then position it.

2. Undo the self-taping screw to remove the protective sleeve, and release the grub screws to remove the water testing plug.

3. Slide the cartridge bell onto the body and insert the O-ring to the groove of the cartridge bell.

4. Apply waterproof treatment to the area.

5. Tighten the dressing ring onto the cartridge bell.

6. Slide the back plate and washer onto the wall, set the spout in place, and secure it tightly using the grub screw.

7. Insert the handle onto the cartridge stem, unscrew the handle rod, and use a allen key to tighten the grub screw to secure the handle. Then, screw the handle rod back in place.

Replacing the Aerator

Note:
The built-in aerator is equipped with an internal flow restrictor, while the extra aerator included in the box does not have one. You can switch them based on your needs.
