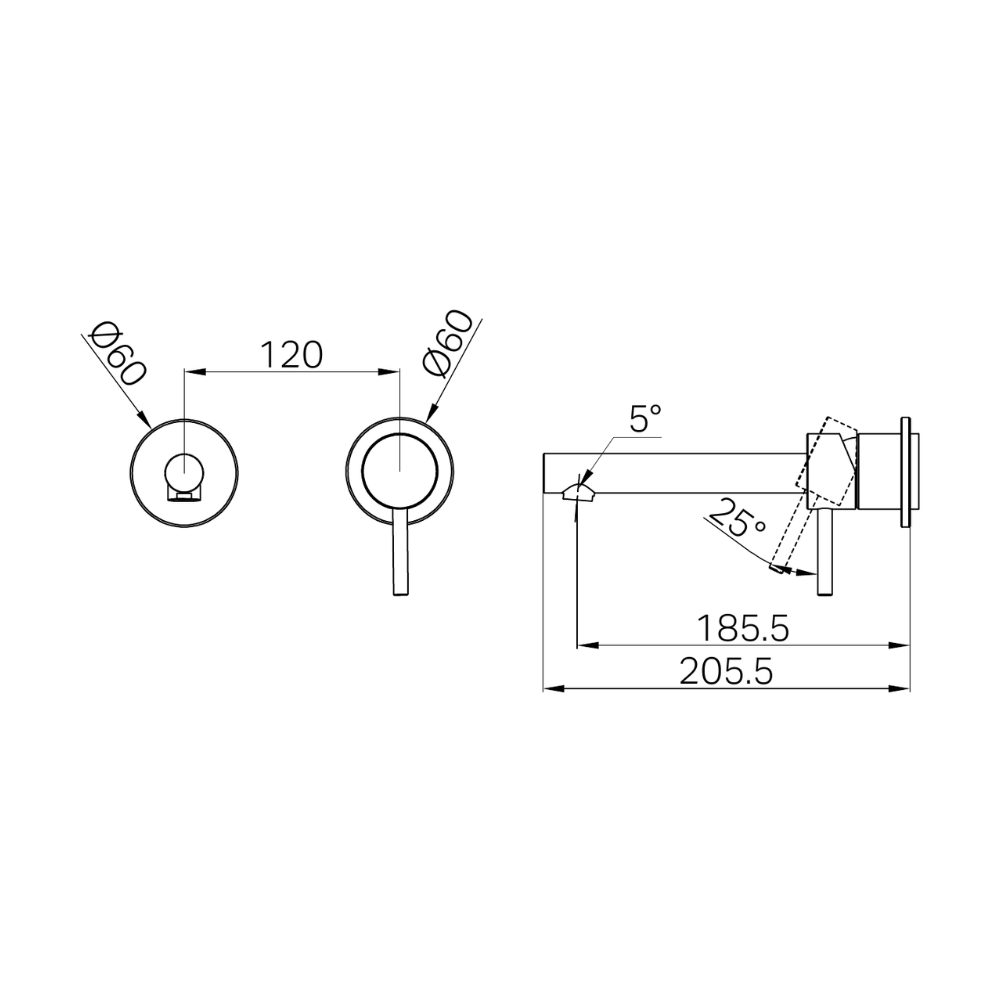

Dolce II Wall Basin/Bath Mixer Separate Back Plate Trim Kits Only Brushed Gold - 25B009BG

• Minimalist design with clean, modern lines
• Made from durable, lead-free 304 stainless steel
• Compatible with Nero In-Wall Body NRUB001
• Supplied with restricted aerator (standard)
• Includes optional non-restricted aerator for bath use
• Available in 5 different finishes
• 6 Star, 4.5L/min
• T45348

Install Advice:

Installation Instruction:

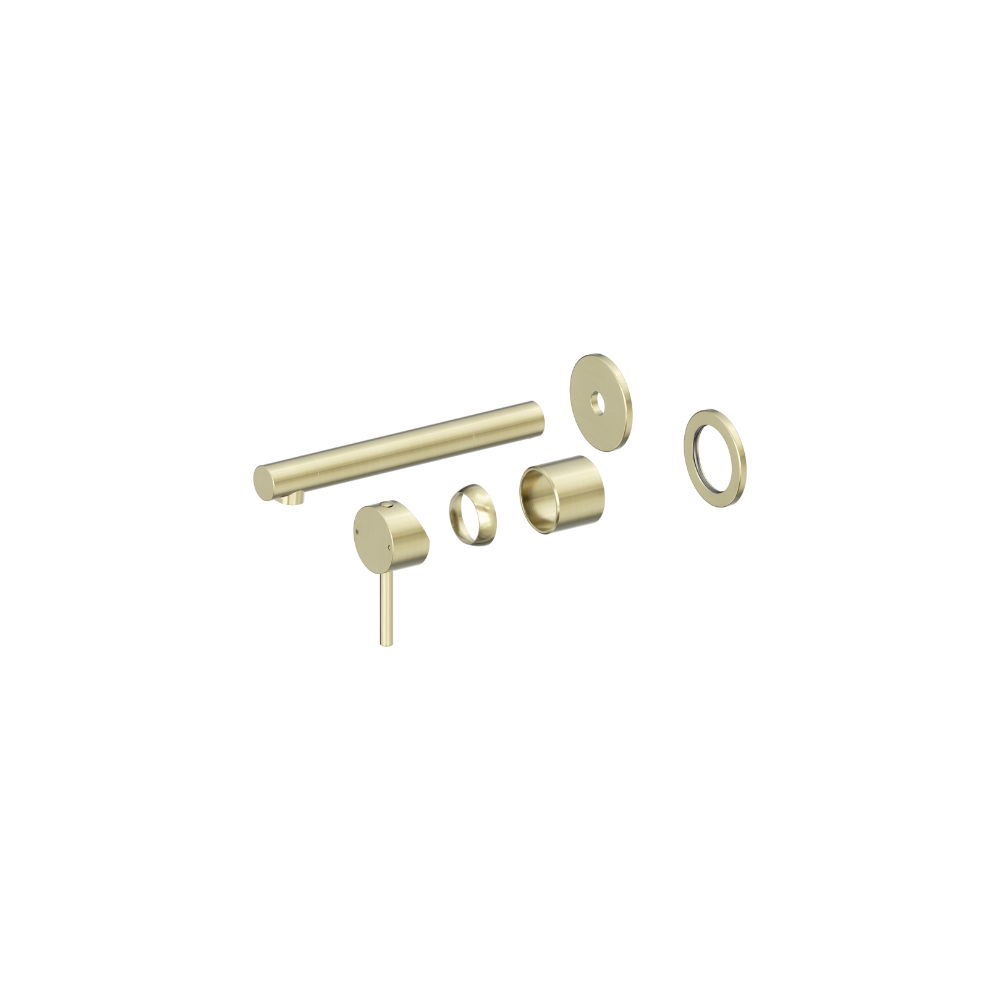

Installation Steps for Trim Kits:

1. Drill a ø50mm and a ø40mm hole in the ceramic tile, then position it.

2. Undo the self-taping screw to remove the protective sleeve, and release the grub screws to remove the water testing plug.

3. Slide the cartridge bell onto the body and insert the O-ring to the groove of the cartridge bell.

4. Apply waterproof treatment to the area.

5. Tighten the dressing ring onto the cartridge bell.

6. Slide the back plate and washer onto the wall, set the spout in place, and secure it tightly using the grub screw.

7. Insert the handle onto the cartridge stem, unscrew the handle rod, and use a allen key to tighten the grub screw to secure the handle. Then, screw the handle rod back in place.

Replacing the Aerator

Note:
The built-in aerator is equipped with an internal flow restrictor, while the extra aerator included in the box does not have one. You can switch them based on your needs.
