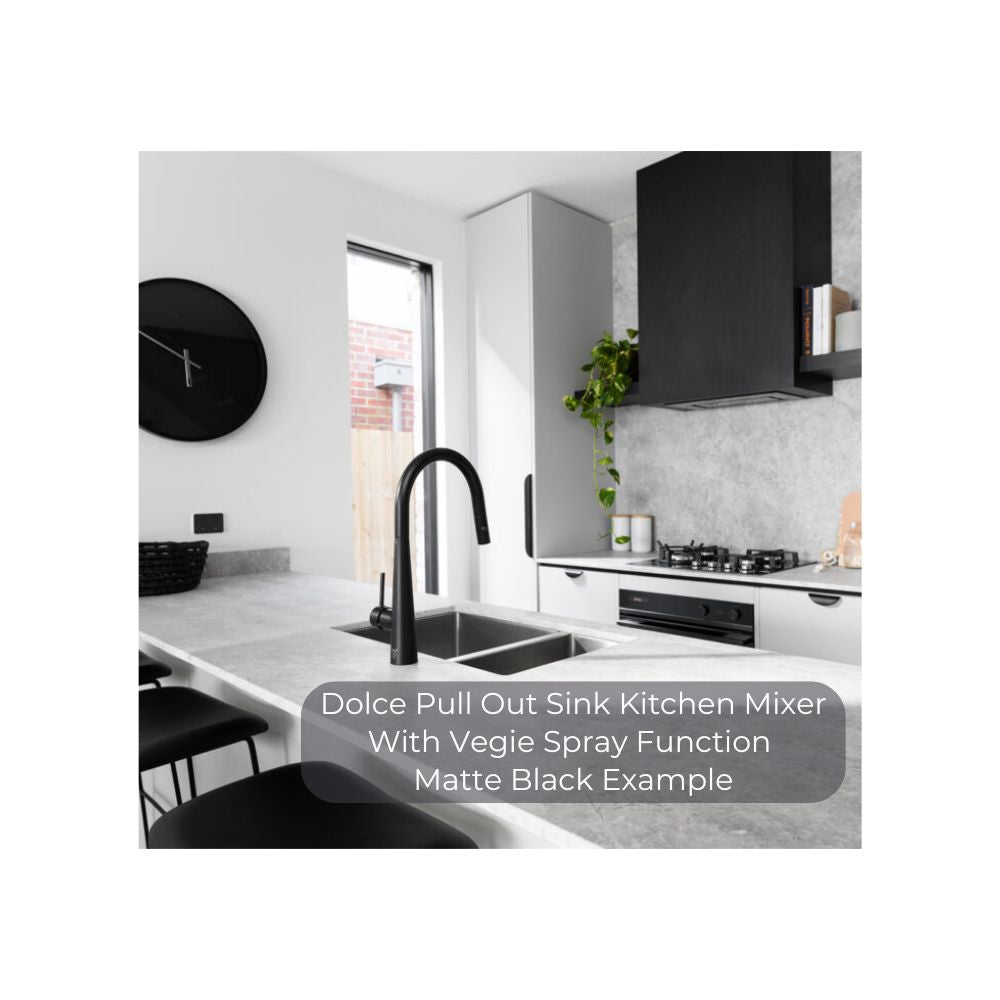

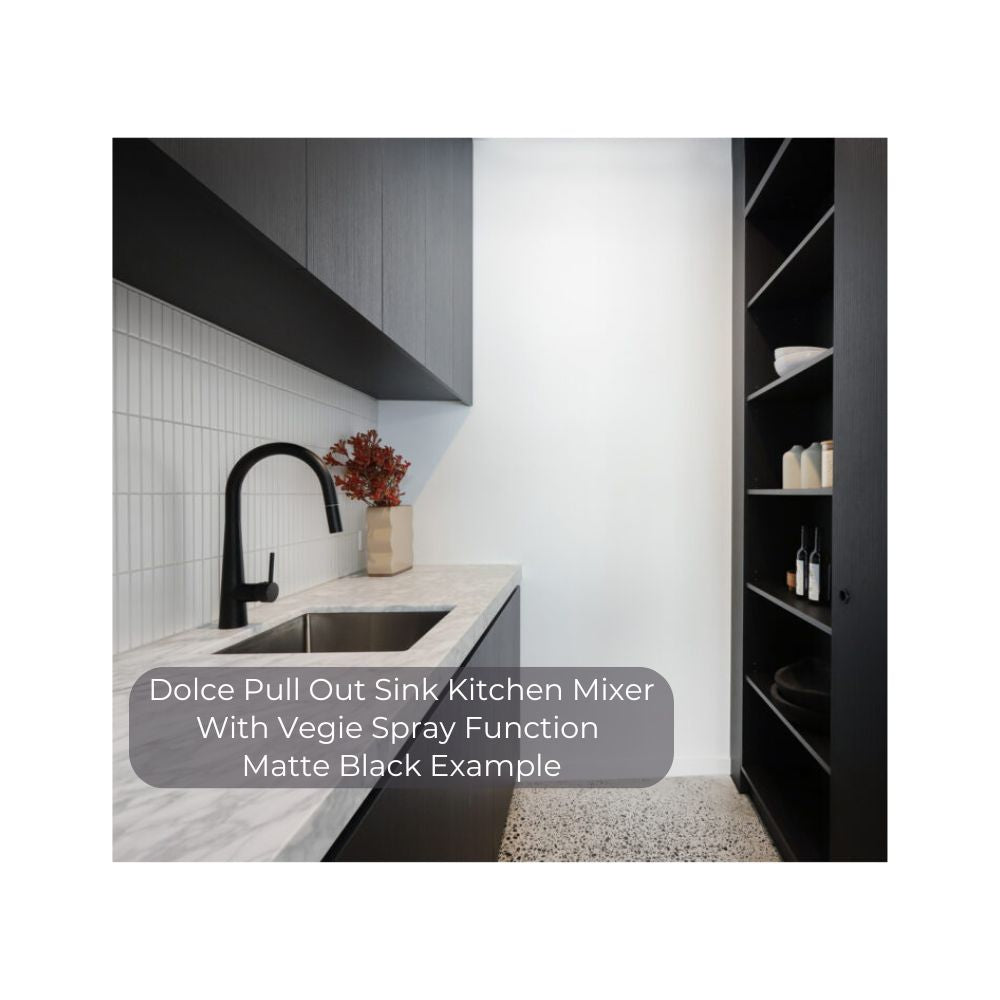

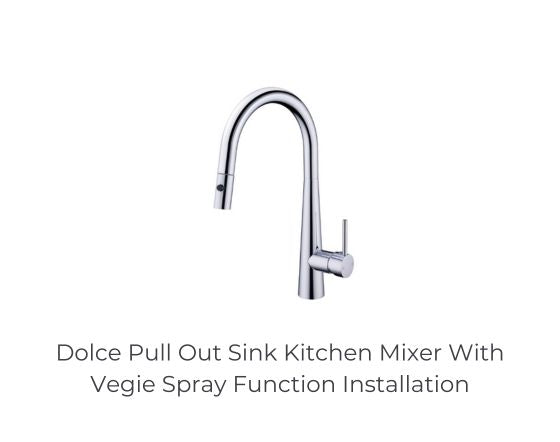

Dolce Pull Out Sink Kitchen Mixer With Vegie Spray Function Brushed Gold - NR581009cBG

• 35mm Ceramic disc cartridge can be adjusted to control water
• temperature and flow control settings, saving energy
• Solid brass construction for longevity
• 2 function pull out hand piece allows for different water spray
• Push fit pull out hose for easy installation
• NEOPERL aerator with slim stream flow director
• Stainless steel PEX flexible hose-1/2 BSP female
• Suitable for mains pressure installation
• More options available, see Avail or Nero’s website
• WELS Rating: 4.5L/min, 6 Star
• WELS Registration No: T41360
• Material: Brass


Installation Instruction

GENERAL INSTRUCTIONS:

- This product must be installed by a licensed plumber. Ensure that your plumbing installation
conforms to the Australian/New Zealand Standard AS/NZS 3500.
- All pipework must be thoroughly flushed prior to the installation of the mixer. In-line filters must be
fitted on both hot and cold supplies to prevent foreign particles from damaging the ceramic
cartridge.
- All outlets used primarily for personal hygiene must deliver water at a safe temperature in
accordance with regional regulations.

1. Pre-drill or create one hole with a diameter of 35mm at the proper location.
Please note that the thickness of the surface should be between 3-40mm.

2. Place the mixer body and pass the flexible hoses, pull out hose and quick connecting hose through the hole in the counter-top.

3. Install the rubber and metal washers, if a stabilizer is required,install the stabilizer after positioning
the rubber washer.
Tighten the locking nut securely with the two M6 screws to ensure the mixer is firmly attached to the
counter-top.
Avoid over tightening to prevent damage to the components

4. Connect pull out hose with quick connecting hose.

5. Install counter weight by tightening the screws, please note that the distance from counter weight to bottom of thread connector is 350mm, as shown in figure.

6. Connect the inlet flexible hoses to the corresponding hot and cold water supply valves. Tighten the female cone nuts by hand (according to flexible hose instruction), ensuring they are secure yet not overtightened to avoid thread damage.

7. Check all connections for leaks. If any fittings are leaking, shut off the water as necessary to stop the leaks.
