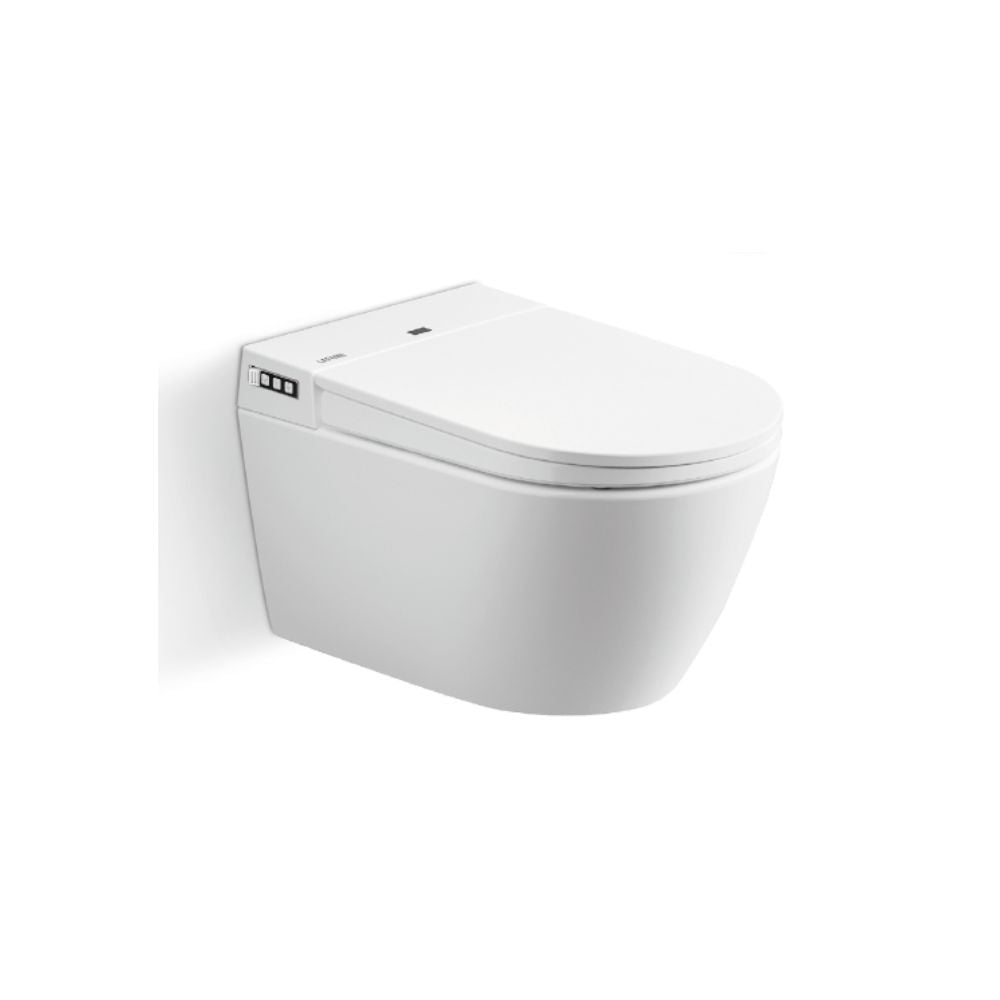

Lafeme Sesto Toilet And Bidet With In Wall Cistern, Button Panel And Remote Control - ST22

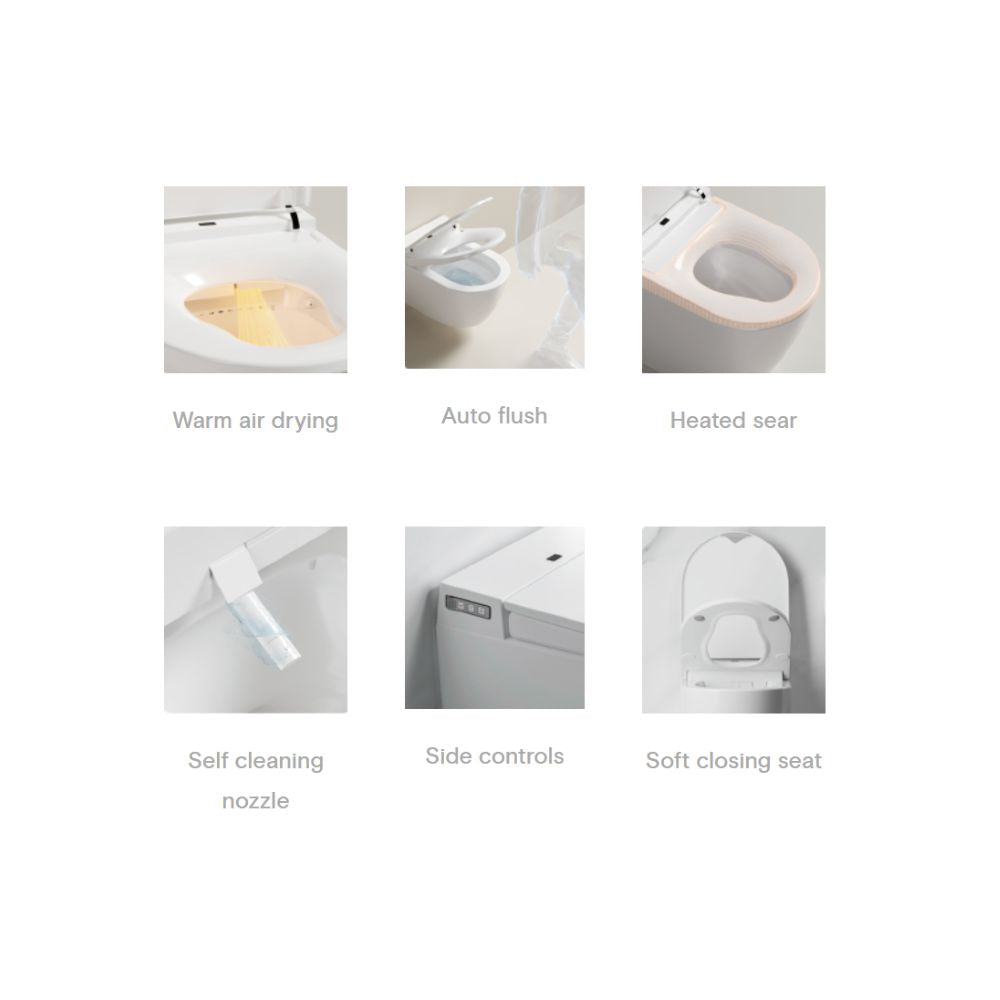

Sesto, the compact sleek design, fits great in virtually any space and brings out a fantastic modern touch without compromising convenience, design, sustainability, or quality.

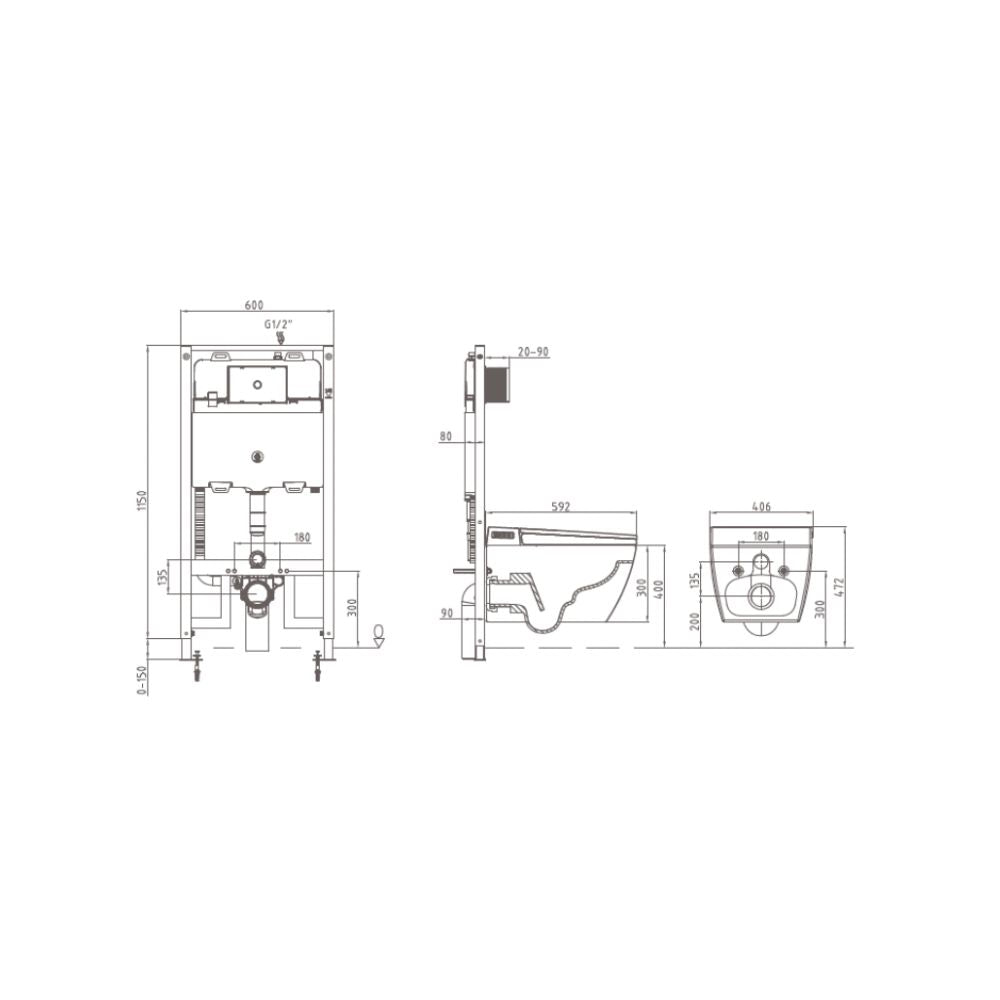

• Product Size: 592*400*424mm
• The Rated Power: 220V-240V, 50Hz
• Water Pressure: 0.07-0.75Mpa
• Maximum Power: 1600w
• WELS Star: 4.5/3L
• WELS Registration No. L07513
• Water Consumption: 3.3
• Waterproofing grade: IPX4
• Trap Type: P Trap 200mm
• This Model includes air-gap assessed and found to comply with the requirements of AS 2845.2:2010.
• No further BACKFLOW PREVENTION is required for this connection to water supply

Product Installation:

1. Fix the water tank frame with the outlet hose,
power line and induction line exposed. Exposed size as the left ( as for water tank frame installation, please refer to accordingly manual).

2. The toilet washer is set on the wall reserving position with its fixed installation hole inserted into the screw rod, aligned with flush hole and drain hole; then put outlet water hose, induction line through and power line through according hole and expose them. Take out the textile pipe from the accessory box and connect it with the outlet pipe of the water tank for water supply.

3. Open the lid and use a tool to remove the decorative screw caps (A new pair is in the spare part box). Use screwdriver to undo the screws. Take out the electronic seat and cover and put them in a clean place.

4. Adjust toilet back part with toilet washer. Put the water-outlet hose, power line, induction line into the rear of the toilet through the washer and adjust the position to put flush hole and drain hole in precise position. Move the toilet toward the wall toward the arrow direction until snaps.

5. Keep the product in horizontal position by gradienter. Put plastic plug, stainless base into the screw rod and tighten the nut; Press flush button to discharge the drain first.

6. Connect outlet hose, power line and induction line from the ceramic to each part of the seat. Attach outlet water hose and power line to toilet. Note: Users need to open the waterproof connector to check if correctly connect to the power line.

7. Put the toilet seats set on the top of ceramic body and then open the upper cover, fastened by fixing screws and then put the decorative caps.

8. When finish the installation, remove the packaging toward the arrow direction. The remote control is installed in the distance from the ground around
1600mm for convenience.
