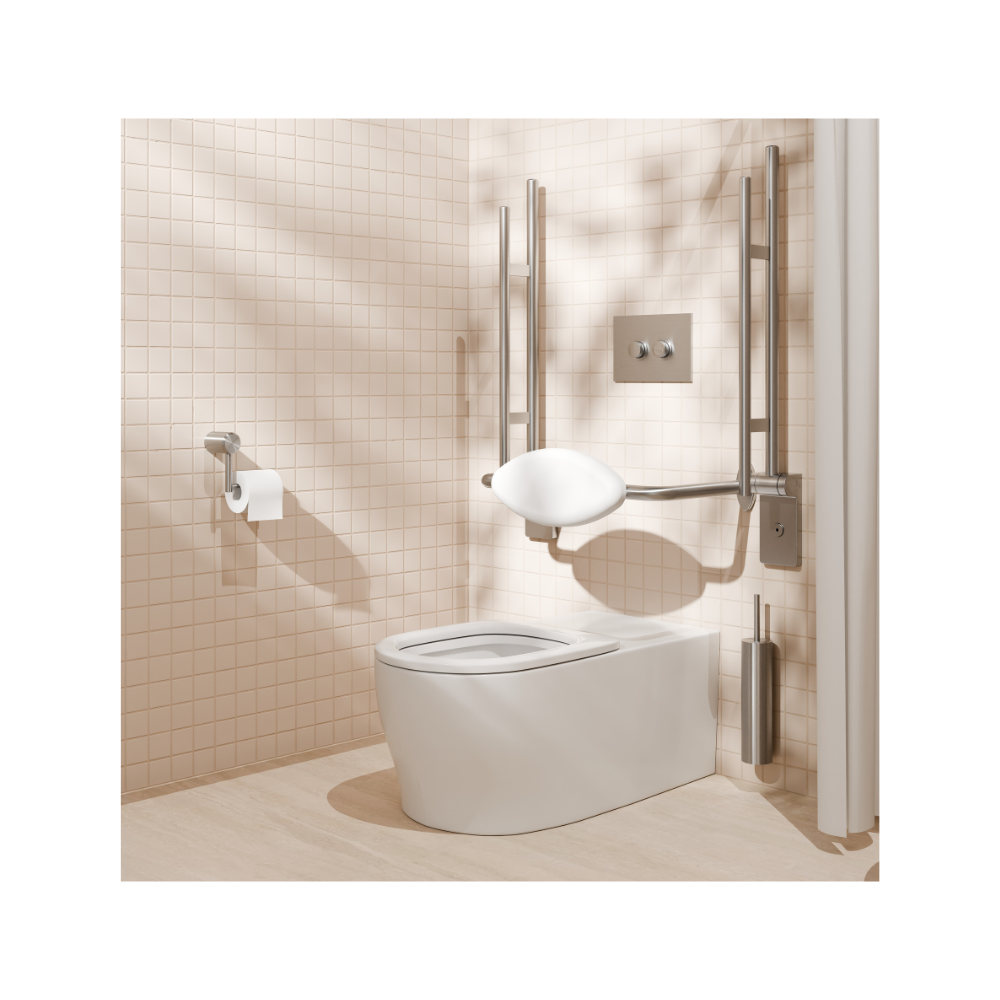

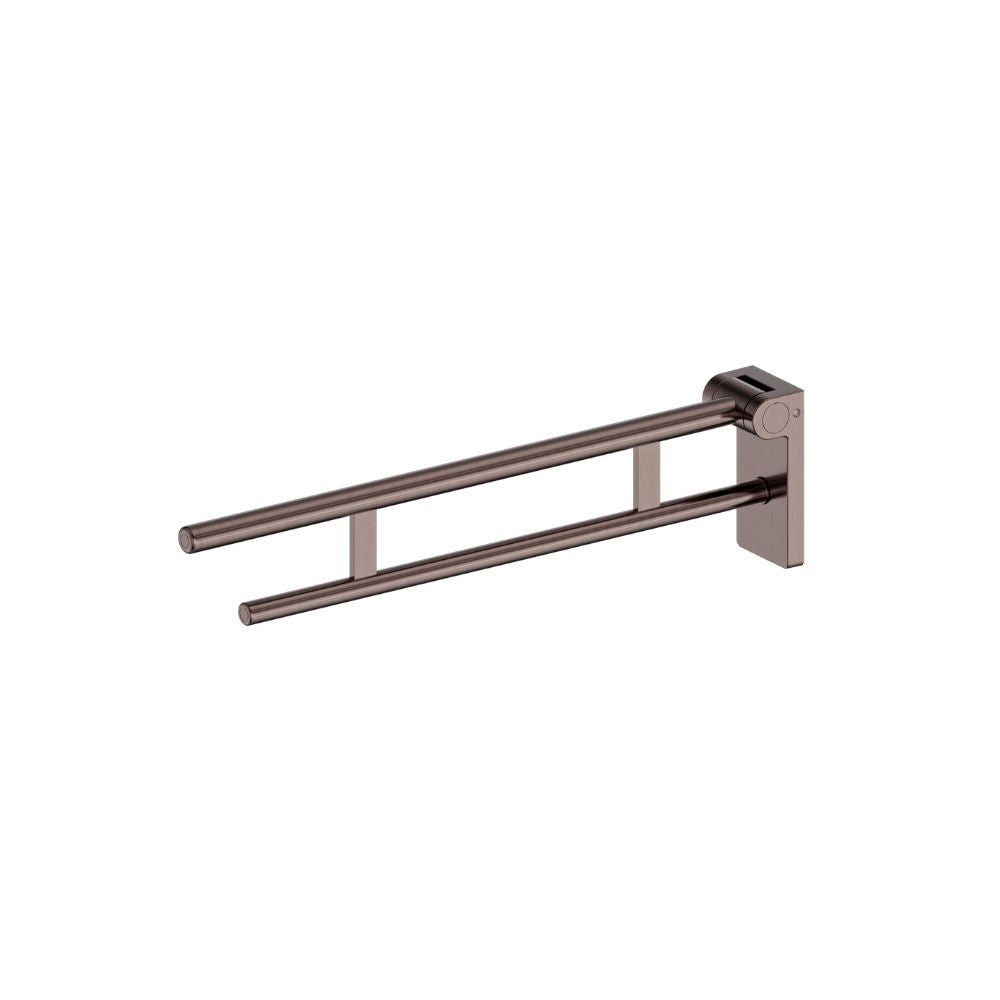

Mecca Care Foldable Toilet Support Arm Brushed Bronze (Due in stock late December) - NRCR0007BZ

• 120kg Capacity
• Folds up neatly against the wall with spring mechanism

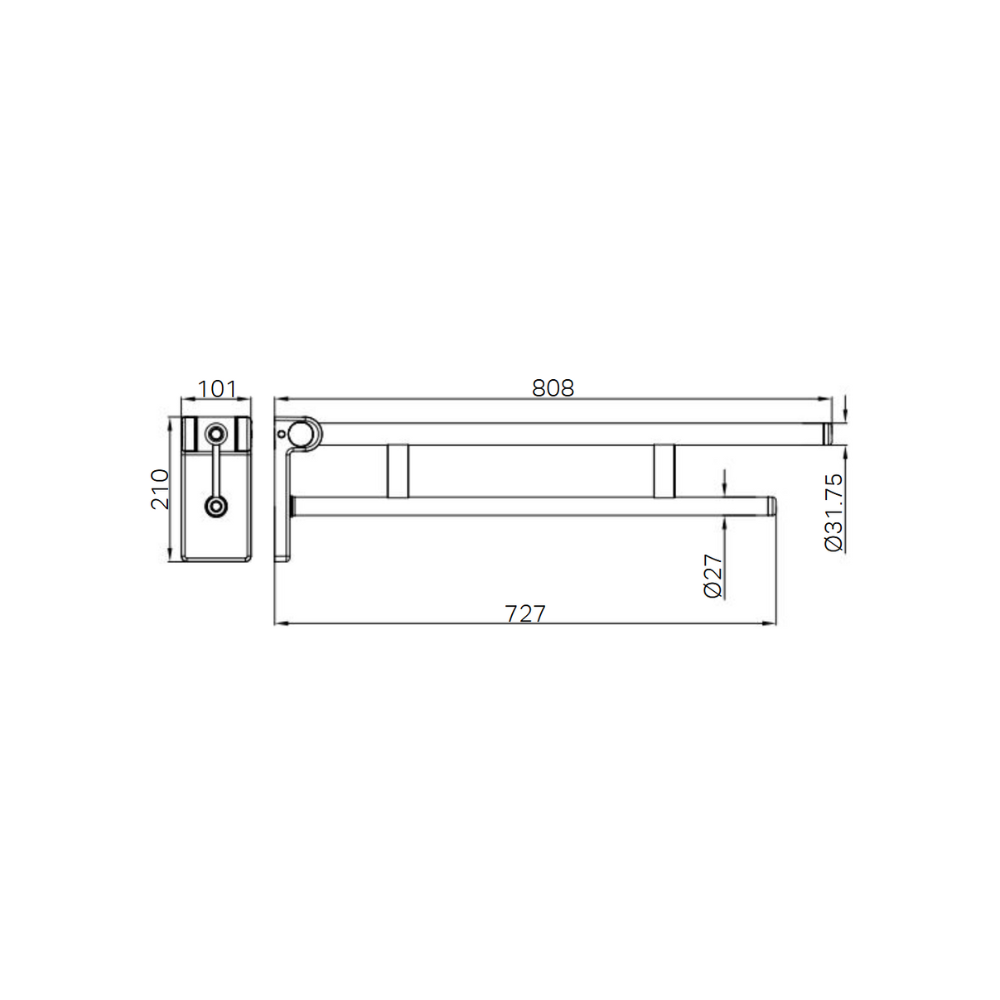

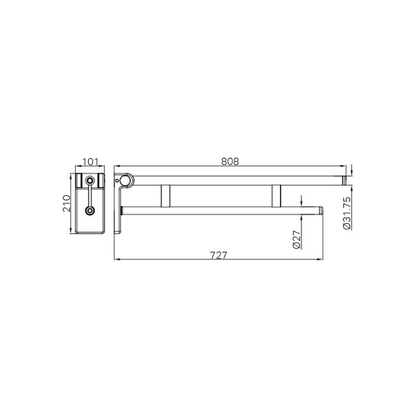

• 808mm from wall to end of rail
• 30mm Diameter top rail
• Highly durable stainless steel base material
• Bottom rail can hold a toilet roll on the end

Install Advice:

Installation Instruction:

1. Mark the positions of the four mounting holes with a ruler on the concrete wall or timber.

2. For timber, drill three Ø4 × 90mm holes for self-tapping screws.
For concrete walls, drill three Ø10 × 90 mm holes for expansion plugs.

3. Secure the bracket directly with M6*80 self-tapping screws on the wooden board.
Note: For concrete walls, insert the expansion plugs into the drilled holes first.

4. Fit the support arm into bracket and check the position of the base mounting hole.

5. For timber, drill a Ø3 × 60mm hole for screw to secure base.
For concrete walls, drill a Ø8 × 40 mm hole for expansion plug.

6. Secure the base with M5*40 self-tapping screw on the wooden board.
Note: For concrete walls, insert the expansion plugs first.

7. Tighten the grub screws to secure the support arm to the bracket. Screw on the cap to cover the base screw.

8. Press in the caps to cover the grub screws.
