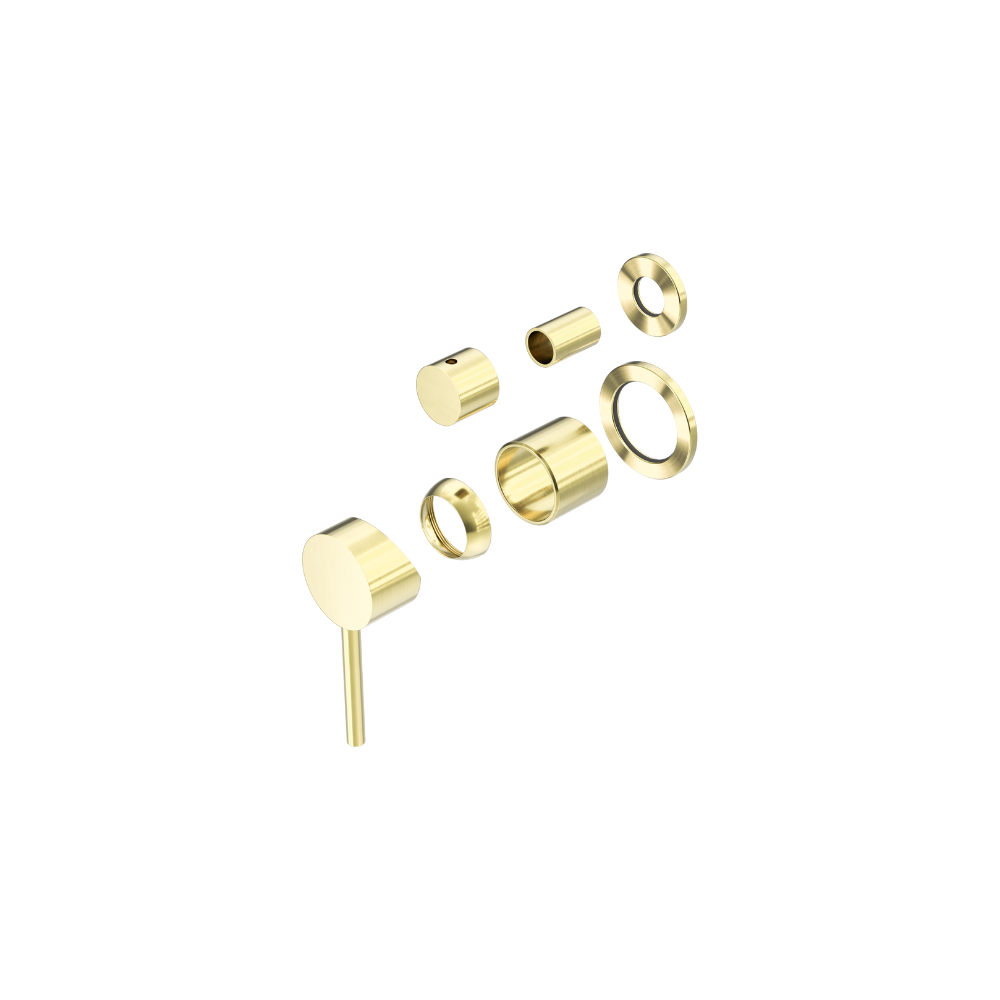

Dolce Shower Mixer With Diverter Separate Back Plate Trim Kits Only Brushed Gold - NR250811ETBG

• Material: Lead Free DZR Brass
• Metal wall plate construction for longevity
• Compatible with project 35mm universal shower mixer with Diverter body

Install Advice:

Installation Instruction for Trim Kits Only:

1. Drill a ø50mm and a ø30mm hole in the ceramic tile.

2. Undo the self-tapping screw to remove the plastic sleeve.

3. Insert the O ring to the dressing bell groove, and slide the cartridge bell onto cartridge and slide Diverter dressing bell onto Diverter cartridge.

4. Apply waterproof treatment to the area.

5. Tighten up the dressing ring on the cartridge bell.

6. Slide the backplates onto body.

7. Attach the washer to cartridge rod, position the handle, tighten it with a grub screw using an Allen key, and cap the grub screw hole.

8. Put knob onto Diverter cartridge, tighten it with grub screw using Allen key, and cap the grub screw hole.
