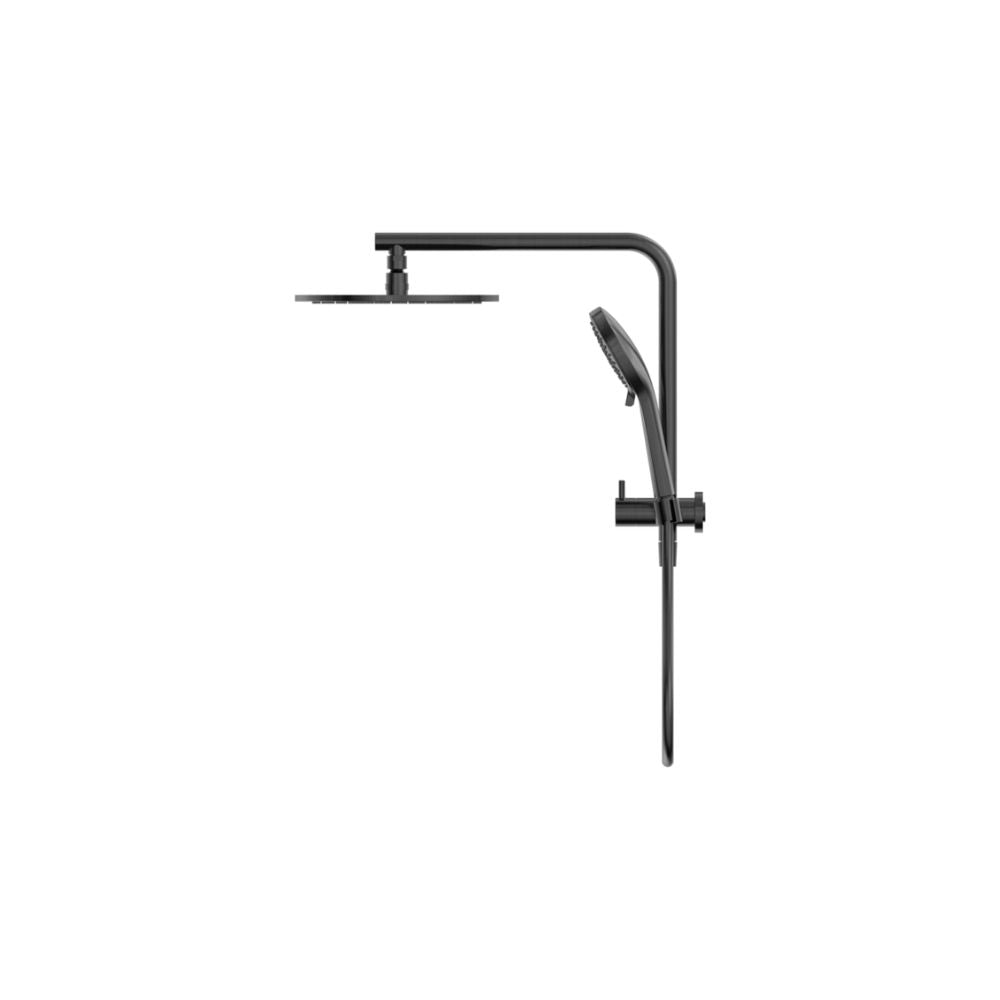

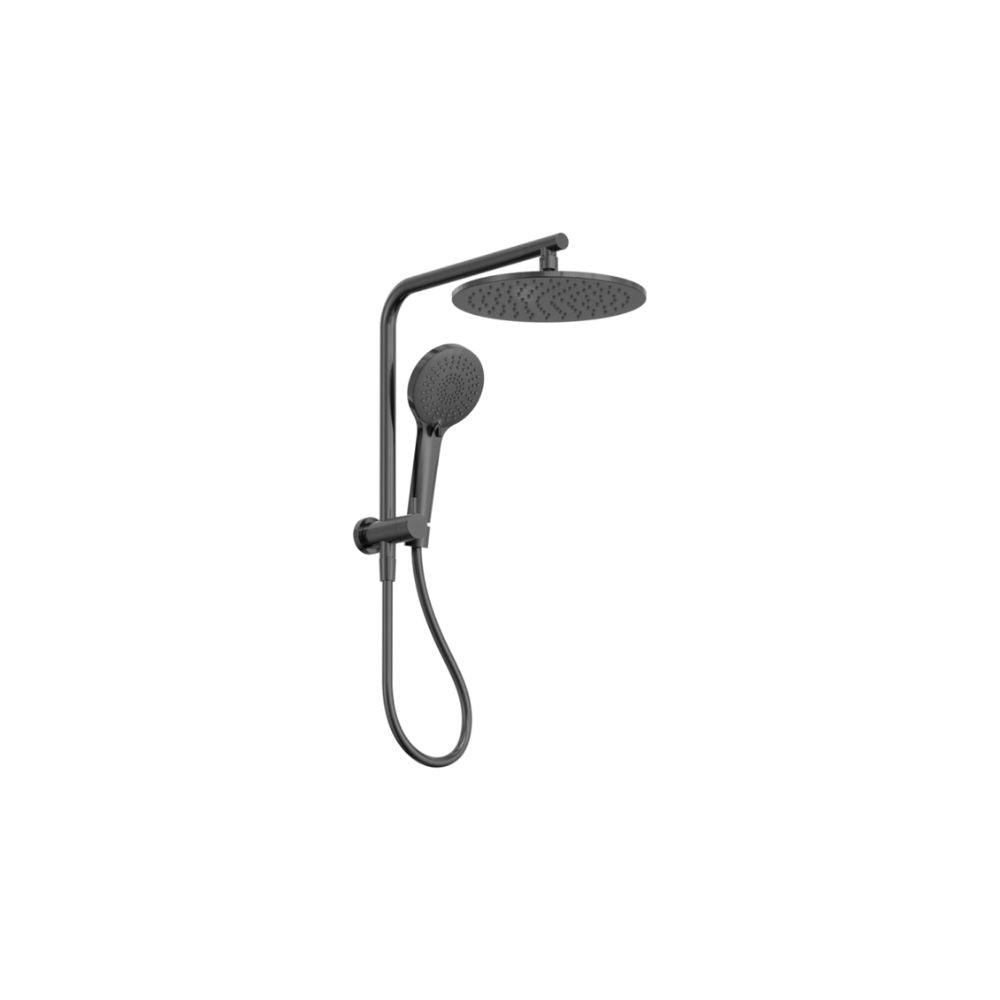

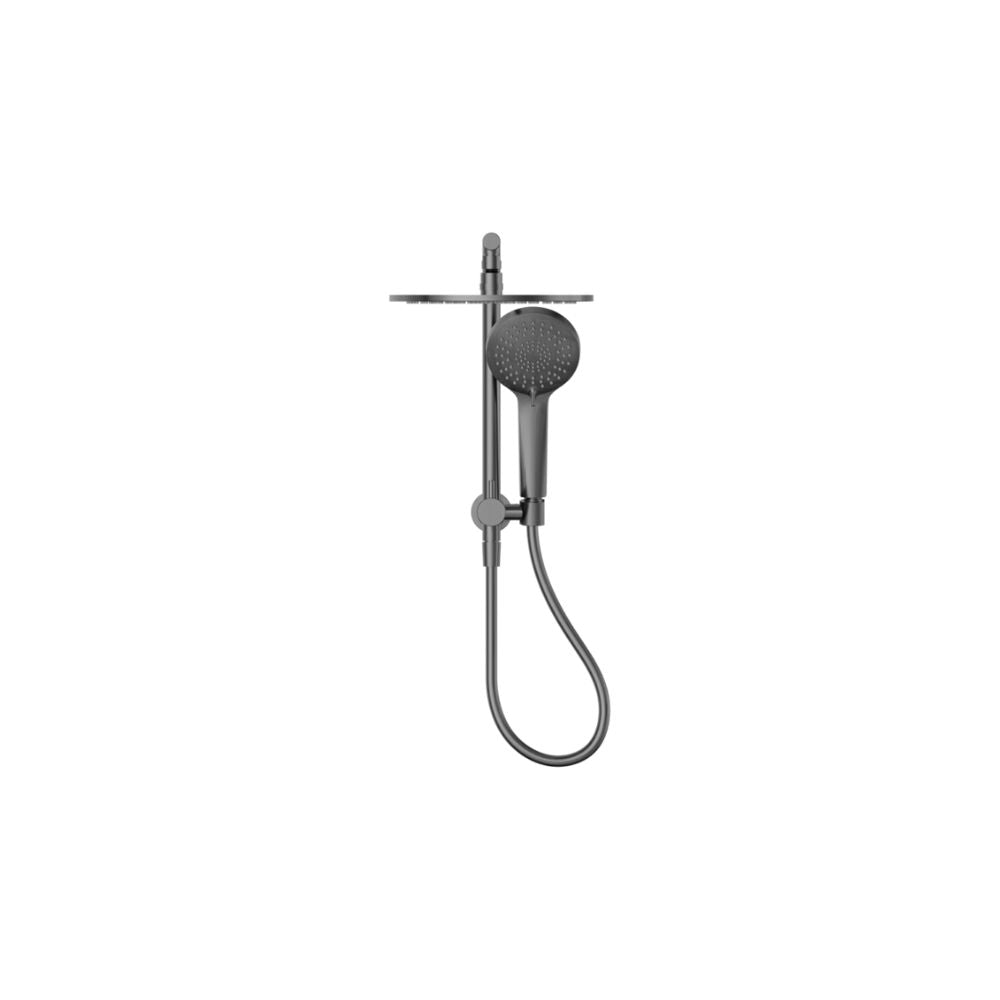

Mecca 2 in 1 Twin Shower Gun Metal - NR250805eGM

• Material: Brass
• WELS Rating: Overhead Shower 9L/Min, 3 Star, Hand Shower 7.5L/Min
• WELS Registration No: S18366
• 250mm durable metal shower head.
• 1.5 meter smooth PVC hose.
• 3 Function hand shower.
• Easy retrofit installation.
• Available in 5 premium finishes

Install Advice:

Installation Instruction:

GENERAL INSTRUCTIONS:
- This product must be installed by a licensed plumber. Ensure that your plumbing installation conforms to the Australian/New Zealand Standard AS/NZS 3500.
- All pipework must be thoroughly flushed prior to the installation of the shower. In-line filters must be fitted on both hot and cold supplies to prevent foreign particles from damaging the shower components.
- Ensure that all outlets used for personal hygiene deliver water at a safe temperature in accordance with regional regulations.
- Verify that the water pressure is within the recommended range for the shower to function properly.

1. Ensure the G1/2 outlet thread extends 15mm beyond the finished wall or tile surface, trim the thread if necessary to achieve this length. Height for the water inlet is 1642-1742mm from the finished floor surface.

2. Apply the G1/2 water outlet connection with Teflon tape to ensure a watertight seal. Screw the adapter onto the prepared outlet thread.

3. Slide backplate onto divertor, and attach the divertor to the water inlet, and position the shower arm, then screw it in place.
Note: Dual-check valve are pre-installed in the shower arm.

4. Thread the overhead shower head onto the shower arm, ensuring a tight connection.

5. Attach the hand shower to the hose and connect the hose to the shower arm, ensuring that rubber washers are in place at both connection points to prevent leaks.

6. Confirm that all connections are securely tightened, then activate the drainage system and turn on the water supply.
Inspect all connections for any signs of leakage.
