Nero Tapware

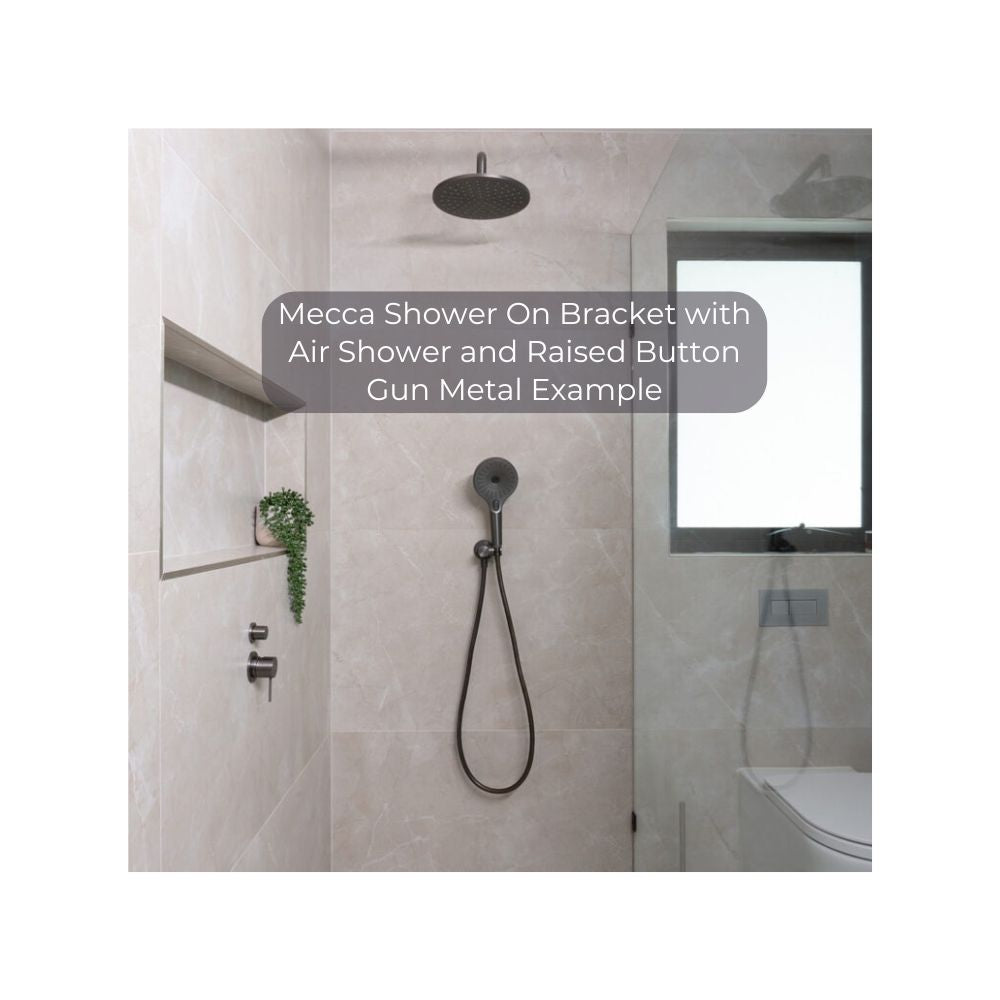

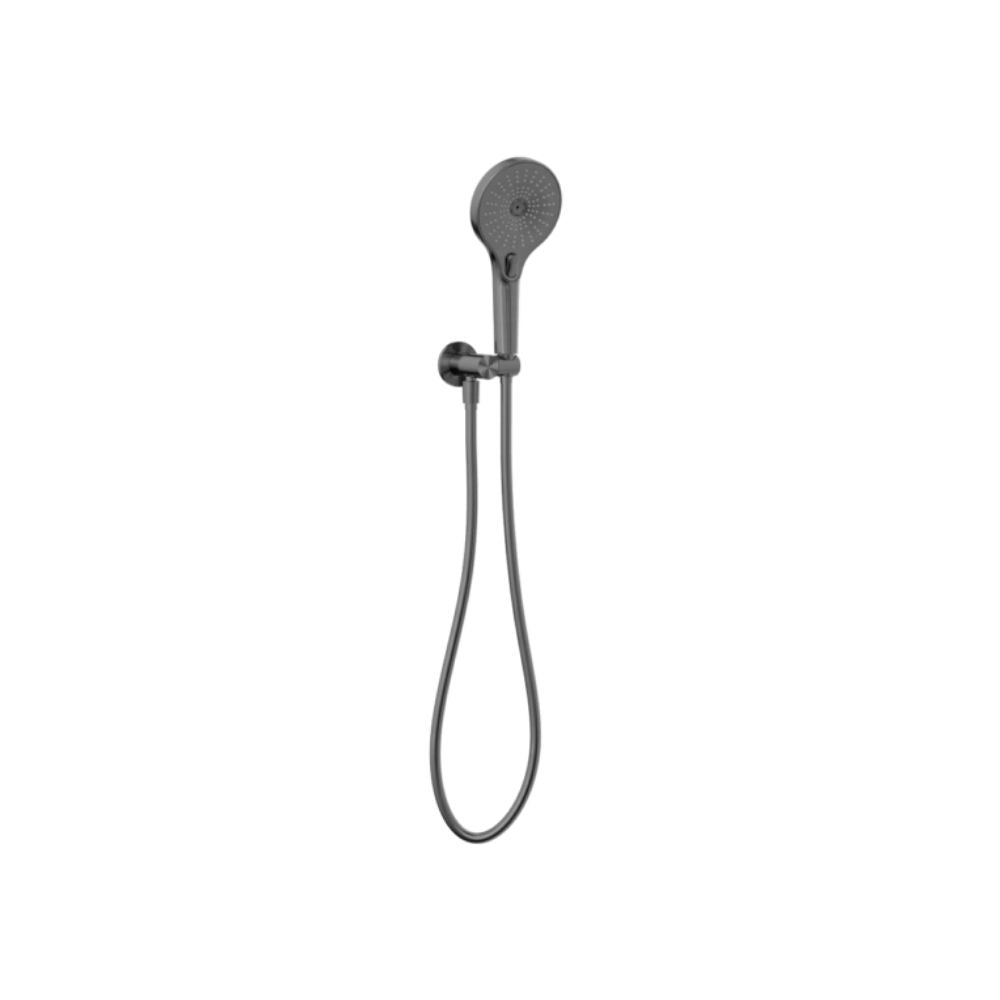

Mecca Hand Shower Set On Bracket with Air Shower and Raised Button Gun Metal - NR221905CGM

$363.00
$363 $363
Sale Sold out
Tax included. Shipping calculated at checkout.
Are you a trade member? Sign in for trade orders.

Need a Quote?

Generate a quote for this product by adding your email below OR generate a quote based on all items in your cart


Create Quote

  • Material: Brass
  • WELS Rating: 9L/Min, 3Star
  • WELS Registration No: S15224
  • Strong and durable, satin-smooth hose
  • 3 function handpiece with angle adjustment
View full details

Description

  • Material: Brass
  • WELS Rating: 9L/Min, 3Star
  • WELS Registration No: S15168
  • Strong and durable, satin-smooth hose
  • 3 function handpiece with angle adjustment


Install Advice:

Installation Instruction:

1. Apply thread sealant or teflon tape on outlet thread.

2. Pull back plate on together with bracket body.

3. Screw shower bracket body on to outlet. DO NOT OVERTIGHTEN. Slide the back plate against the wall/tile face properly.

4. Connect bracket and hand shower with hose. TEST & CHECK FOR LEAKS.

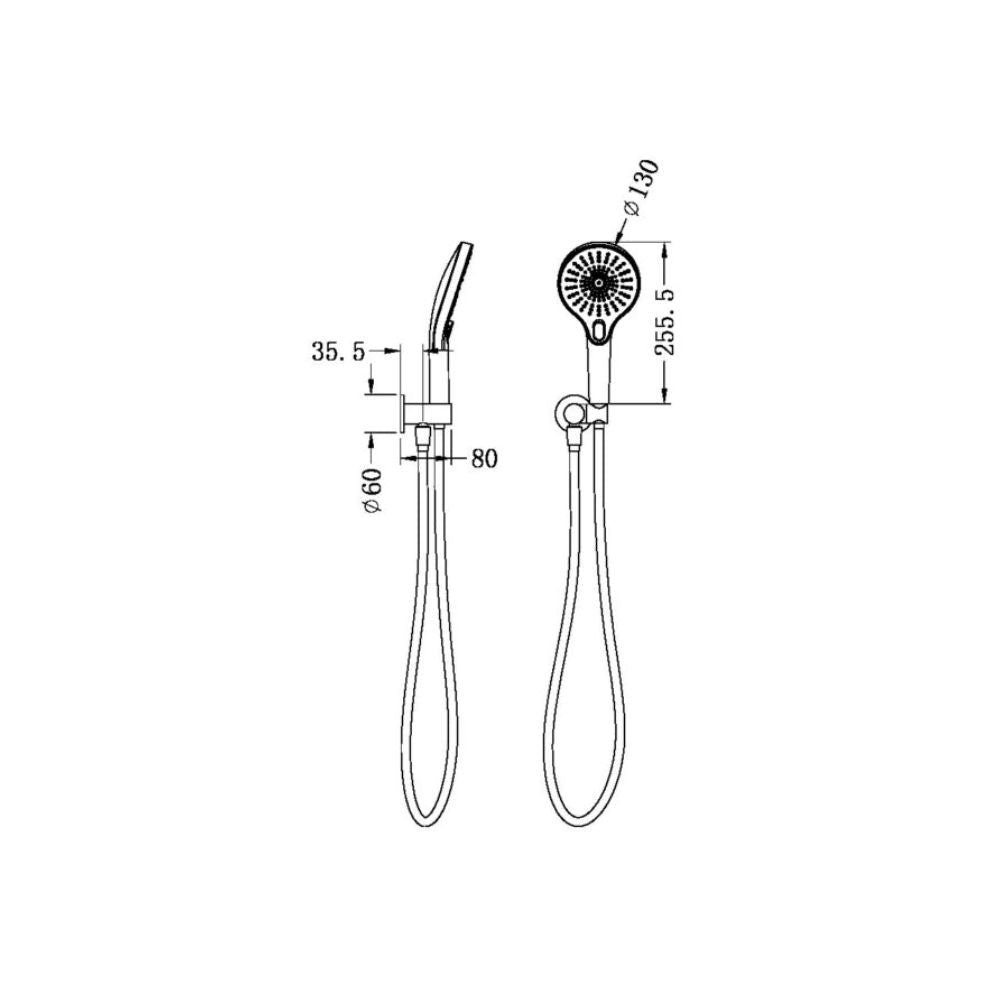

Assembly and CAD

Installation Guide Mecca Hand Shower Set On Bracket with Air Shower and Raised Button

Download

3D CAD BIM Mecca Hand Shower Set On Bracket with Air Shower and Raised Button

Download
