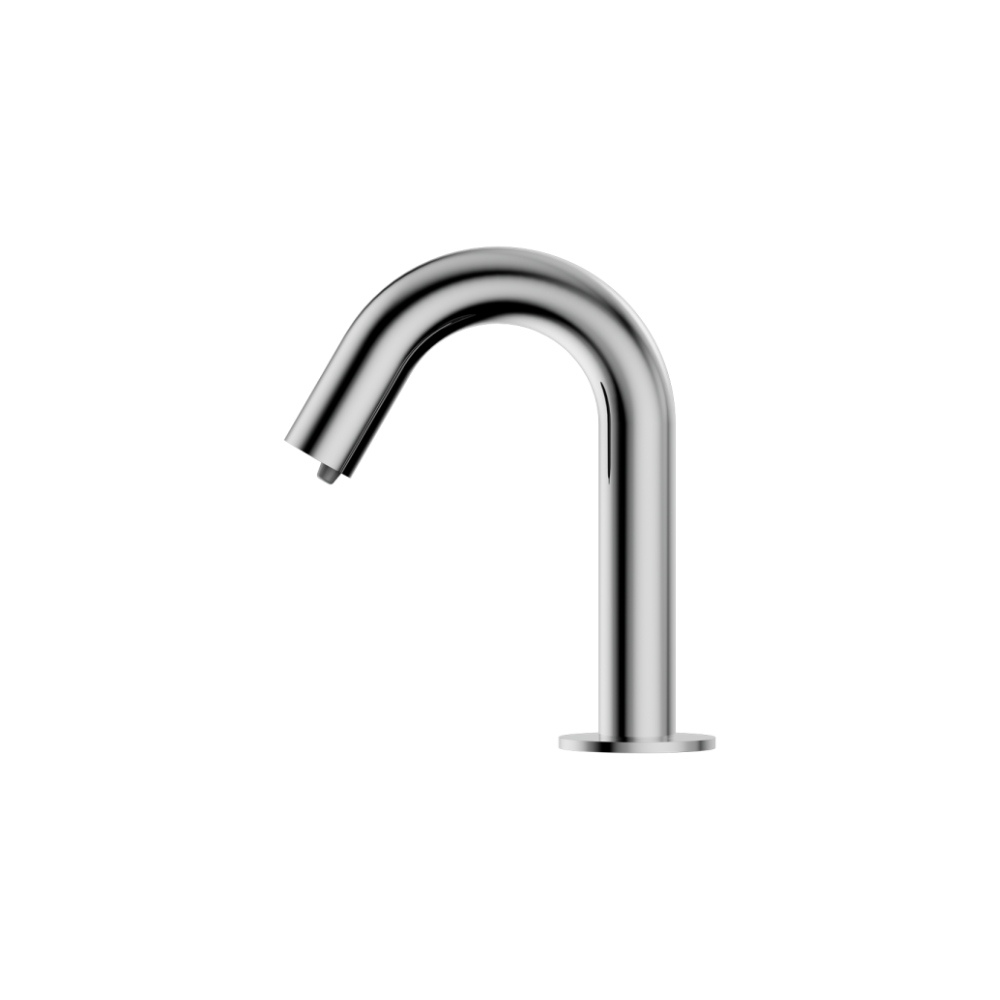

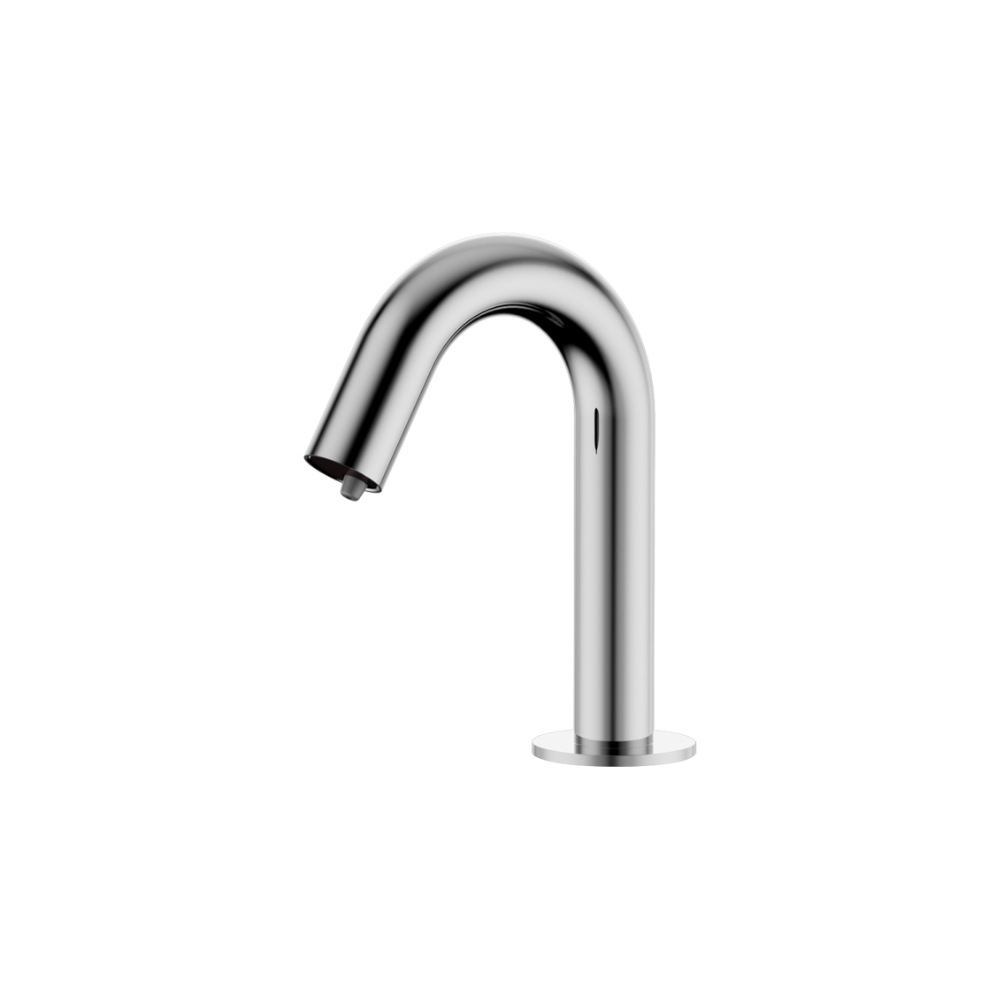

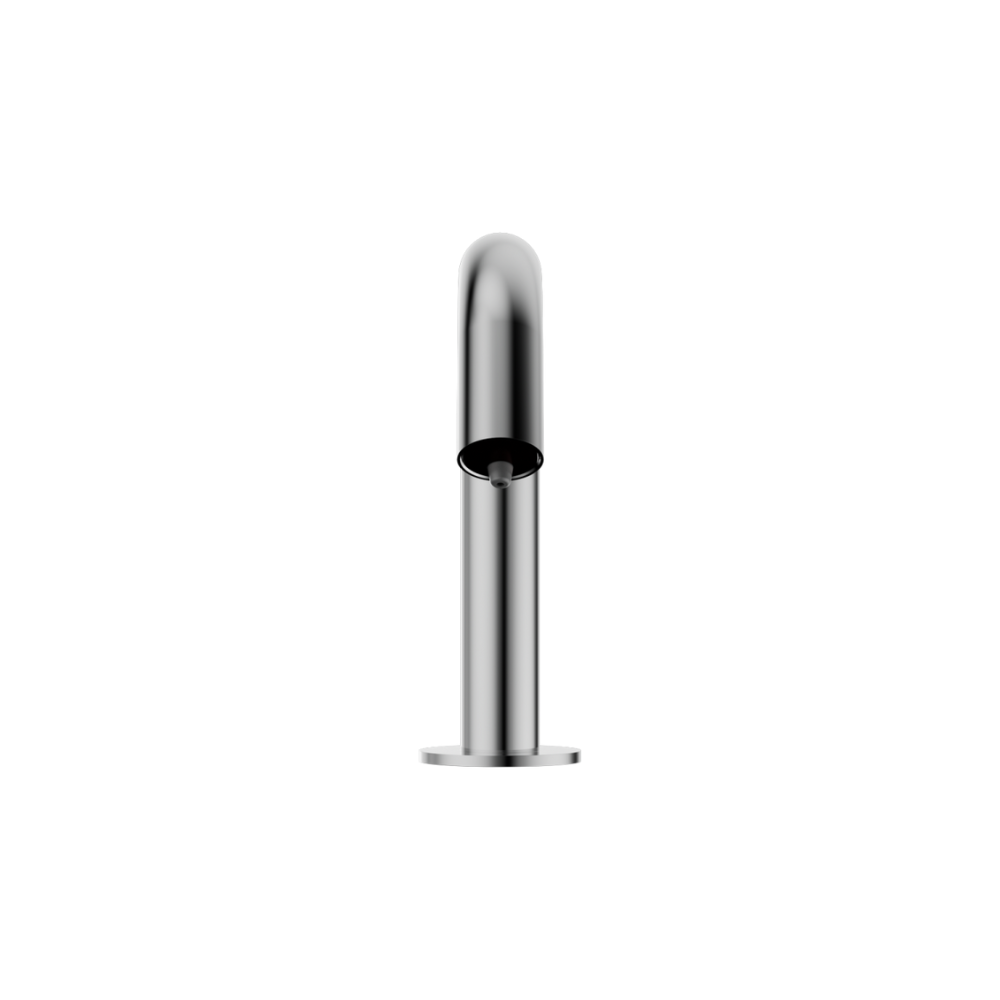

Mecca Hob Mounted Sensor Soap Dispenser Chrome - NR407CH

• Material: Brass
• Touch-Free Operation – Hygienic sensor activation for a clean and convenient experience.
• Standard Battery-Powered – Ready to use with batteries included.
• Optional Power Adapter – Available for purchase separately for direct plug-in use.
• Sleek & Modern Design – Blends seamlessly into any kitchen or bathroom.
• Consistent Soap Dispensing – Fixed output for reliable and efficient use.
• Premium Brass Material – Durable, corrosion resistant, and built to last.

Install Advice:

Installation Instruction:

Installation Steps for Spout:

1. Insert the SPOUT and HOSES through the benchtop hole.
NOTE: Deck thickness - 8 mm to 50 mm, Deck hole diameter - 25 mm to 29 mm.

2. Install RUBBER WASHER and thread the MOUNTING NUT on to the shank and tighten to secure the faucet.

Installation Steps for Control box holder:

1. Drill holes in the wall under the sink 94 mm apart.
NOTE: Recommended height is 350 mm above the floor to avoid interference with the soap bottle and 300 mm below the counter top to provide overhead clearance for installing the control box.
OPTIONAL: Use DRY WALL ANCHORS if applicable.

2. Thread the SCREWS through the CONTROL BOX HOLDER and in to the wall to secure it.

Installation Step for Control box:

1. Slot the CONTROL BOX in to the CONTROL BOX Holder.

Installation Steps for Battery pack:

For DC powered Soap Dispensers only.

1. Insert the batteries and install the battery box.

2. Drill two holes 30mm apart on the wall beneath the sink, and the height is recommended at least 200mm above the floor, Secure the pendant on the wall with screws.
OPTIONAL: Use DRY WALL ANCHORS if applicable.

3. Insert the battery box holder into the battery box pendant, and Insert the battery box into the battery box holder.

Installation Steps for Connect Wiring:

1. Connect all the parts.

2. Install the Soap Bottle into Control Box.

Installation Steps for Initialize Soap Dispenser:

1. Fill the soap bottle with liquid soap.

2. Press and hold the dispenser button on the control box. Release when soap begins to dispense from the spout.

3. Activate the soap dispenser by placing hand in front of the spout tip.

Note: The Soap dispenser has four soap dispensing levels: low, medium, high, and ultra-high. The default setting is ultra-high. You can adjust the soap dispensing amount by adjusting the switch.
