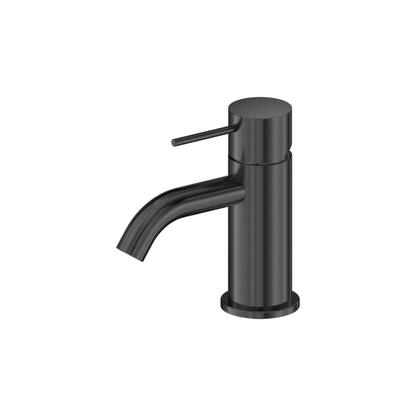

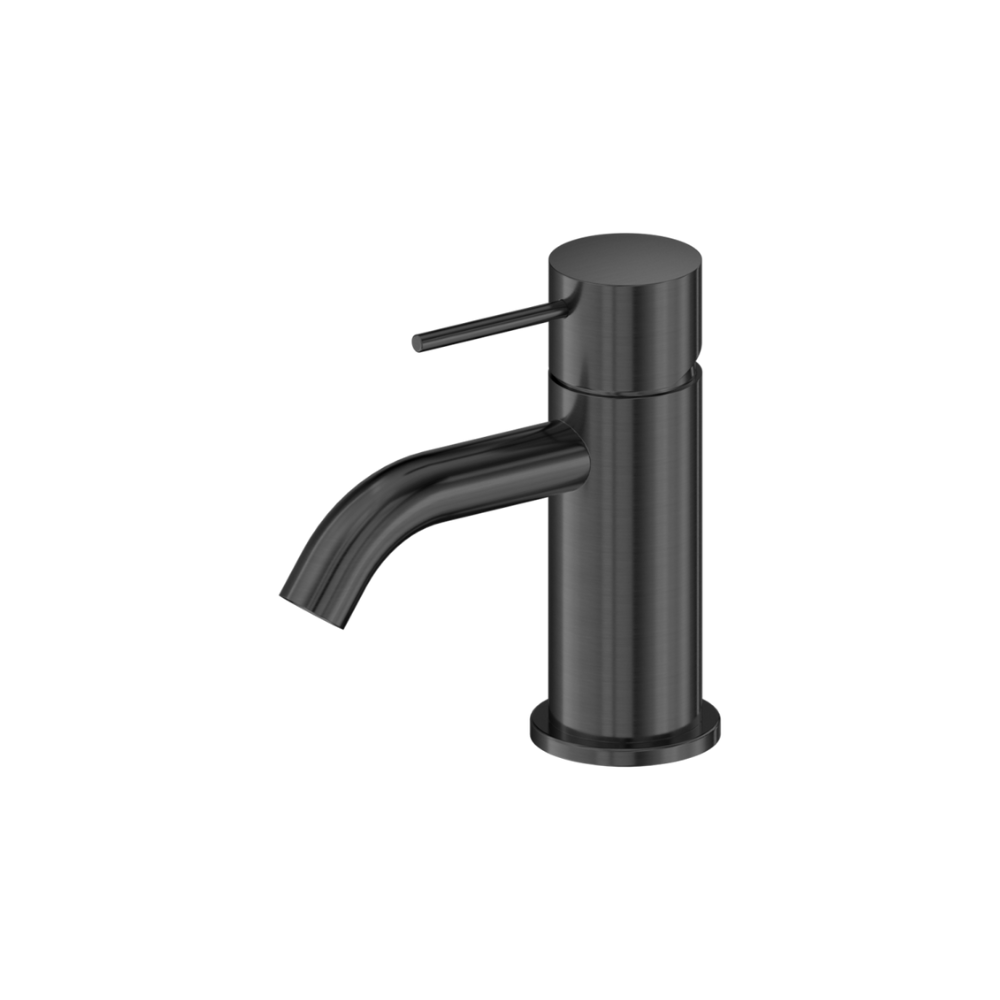

Mecca Mini Basin Mixer Gun Metal - NR221901FGM

• Material: Brass
• WELS Rating: 5 Star, 5 L/Min
• WELS Registration No: T45352
• Compact design ideal for small bathrooms
• Made from Low Lead DZR Brass
• Polyamide PEX flexible hose - 1/2 BSP female
• Neoperl aerator for smooth water flow
• Suitable for mains pressure installation

Install Advice:

Installation Instruction:

1. Pre-drill or create a hole with a diameter of 35mm at the proper location. Please note that the thickness of the surface should be between 3mm-40mm.

2. Insert the base ring into the main body(ensure the O-ring is seated in the groove at the bottom of the base ring).
Pass the flexible hoses and the M8 threaded rod through the hole on the benchtop to the mixer's base, and then tighten.

3. Slide the single-hole rubber washer, single-hole metal washer onto the threaded rod, secure them with the M8 hex nut using an spanner.
Ensure the main body is securely mounted to the benchtop, and avoid overtightening to prevent damage to the components.

4. Connect the Pex Hose to the corresponding hot and cold water supply valves. Tighten the Female cone nuts by hand(According to Pex hose instruction). Ensuring they are secure yet not overtightened to avoid thread damage.

5. Check all connections for leaks. If any fittings are leaking, shut off the water as necessary to stop the leaks. Contact the supplier for warranty claim. Refer to warranty page.

FINAL INSPECTION:
- Ensure the tap operates smoothly and that there are no leaks at the connections.
- Clean the area and the newly installed tap with a soft cloth to remove any installation residues.
