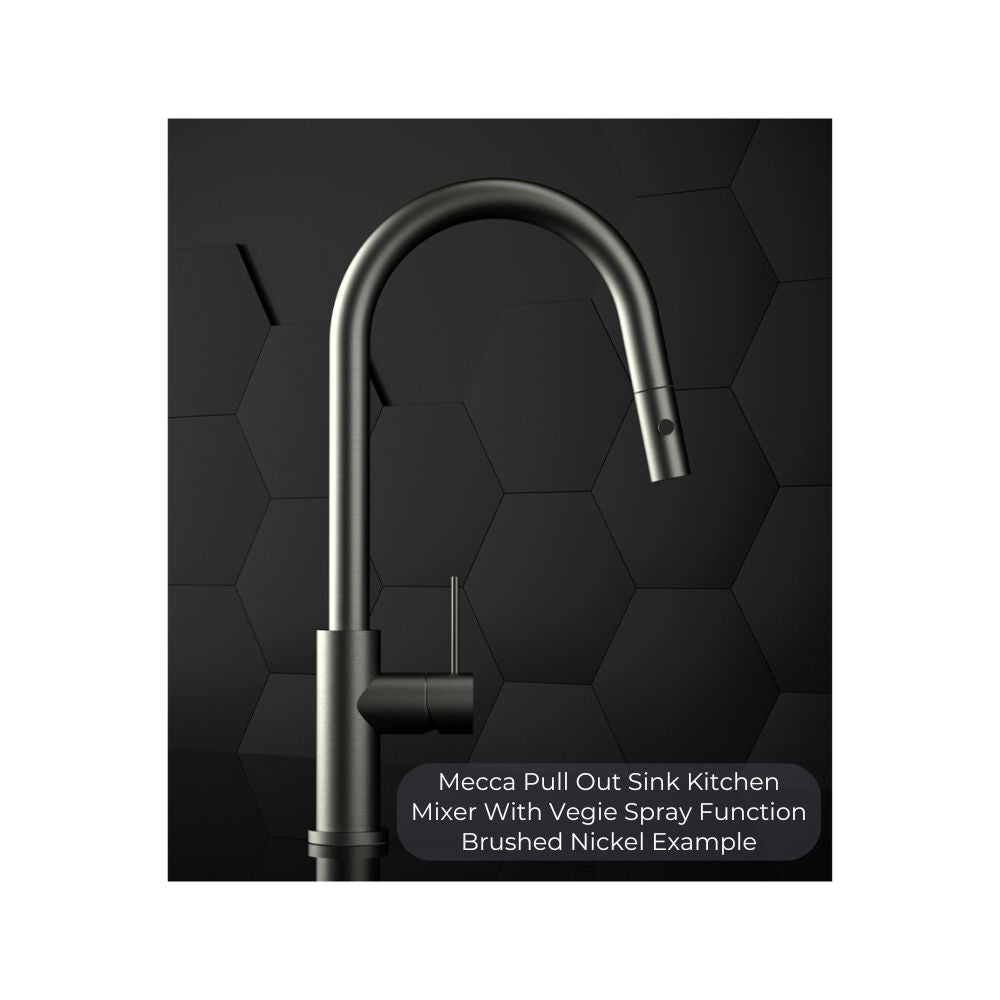

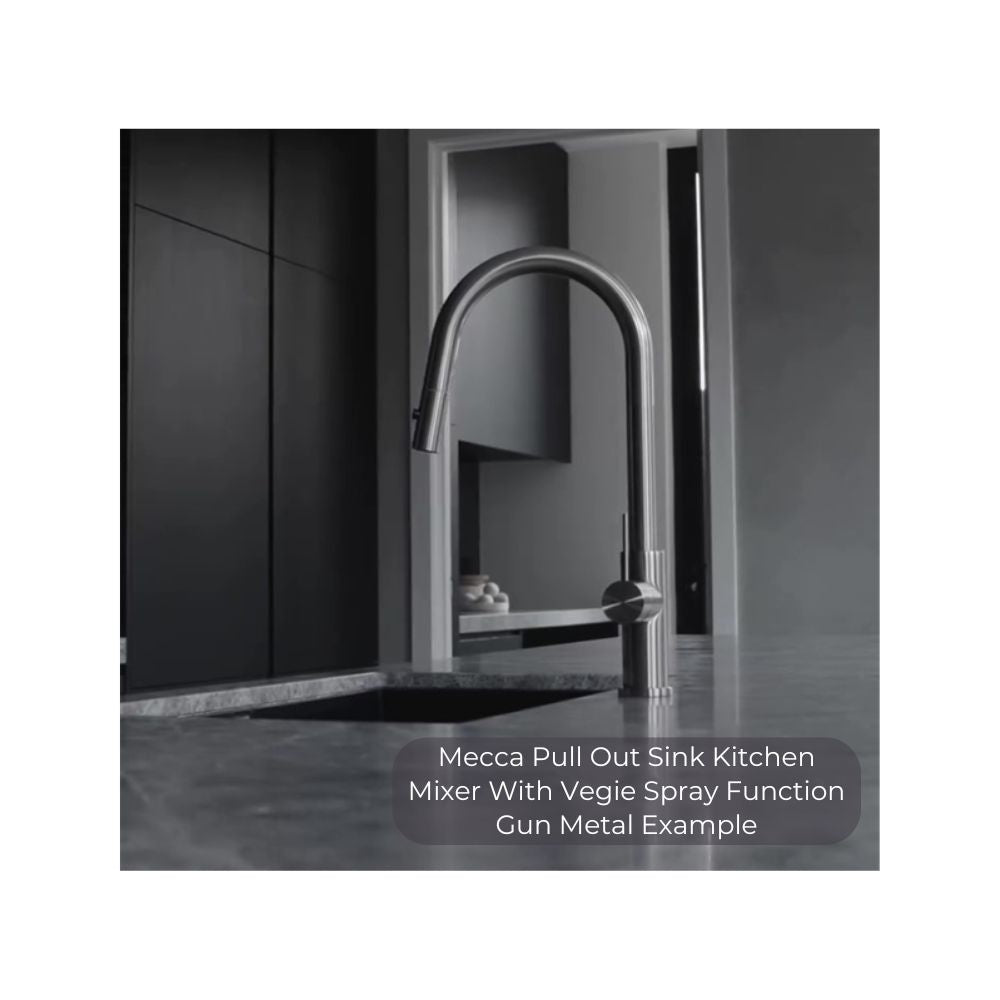

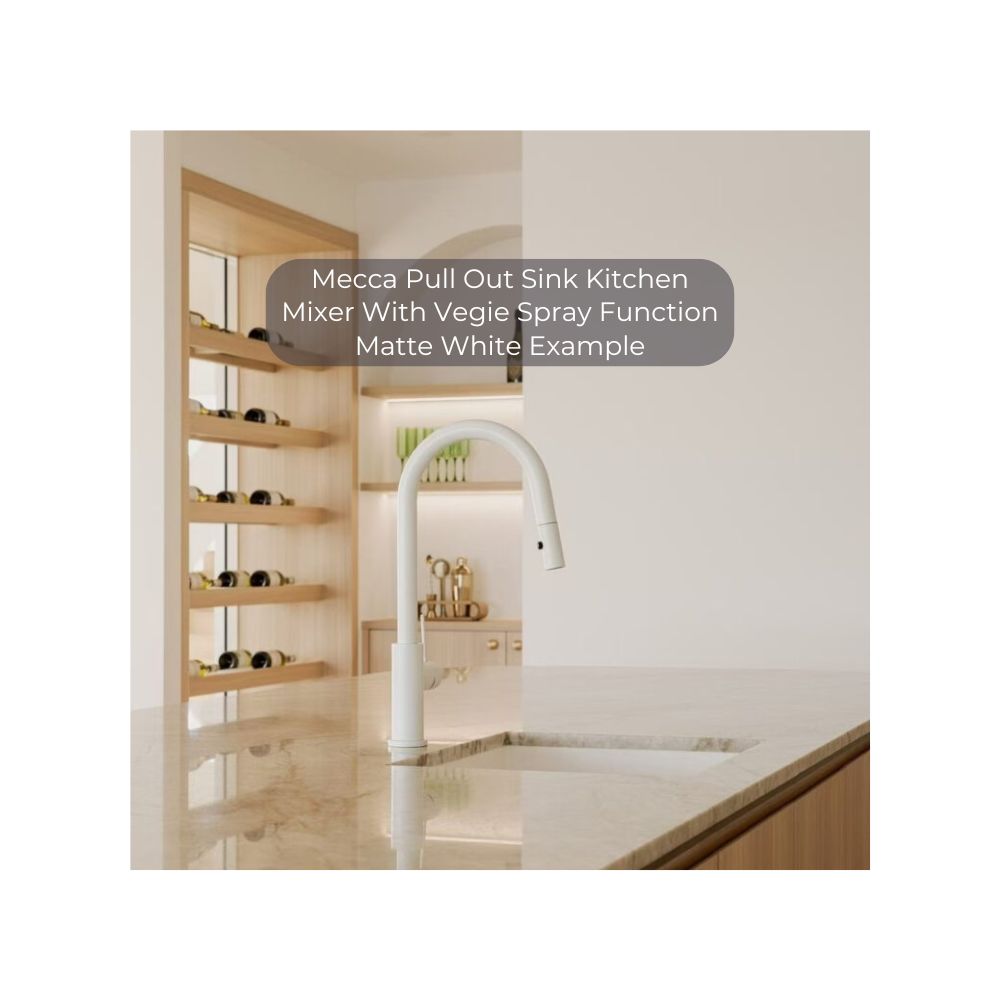

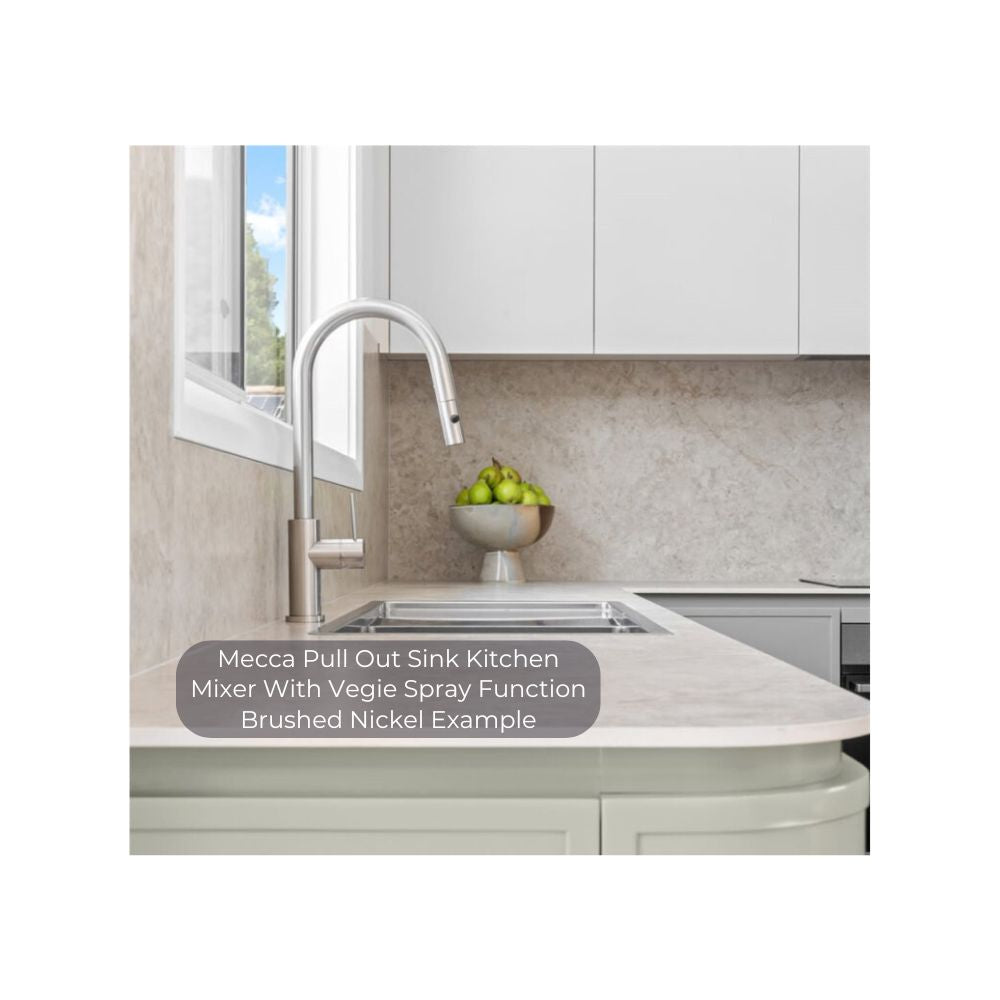

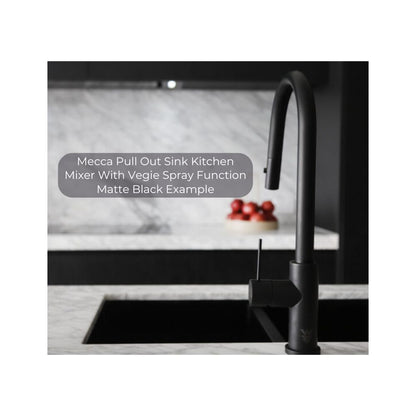

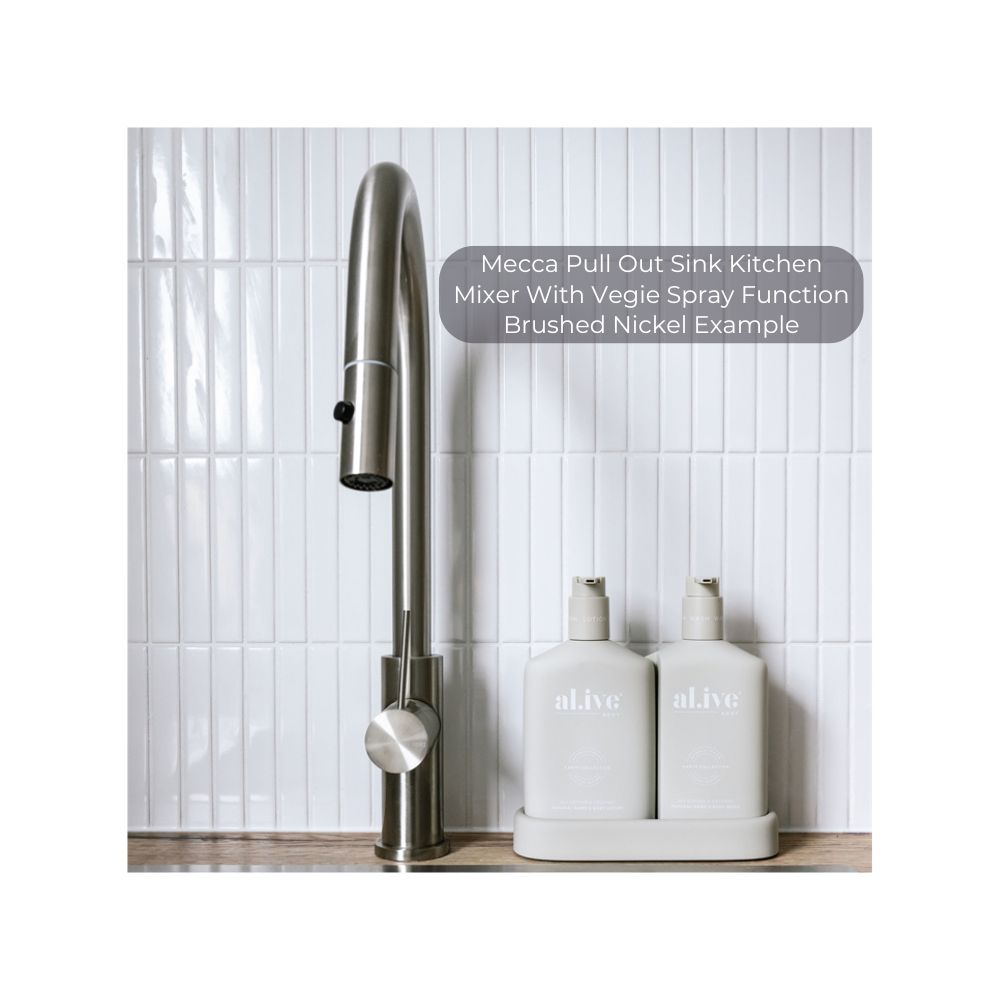

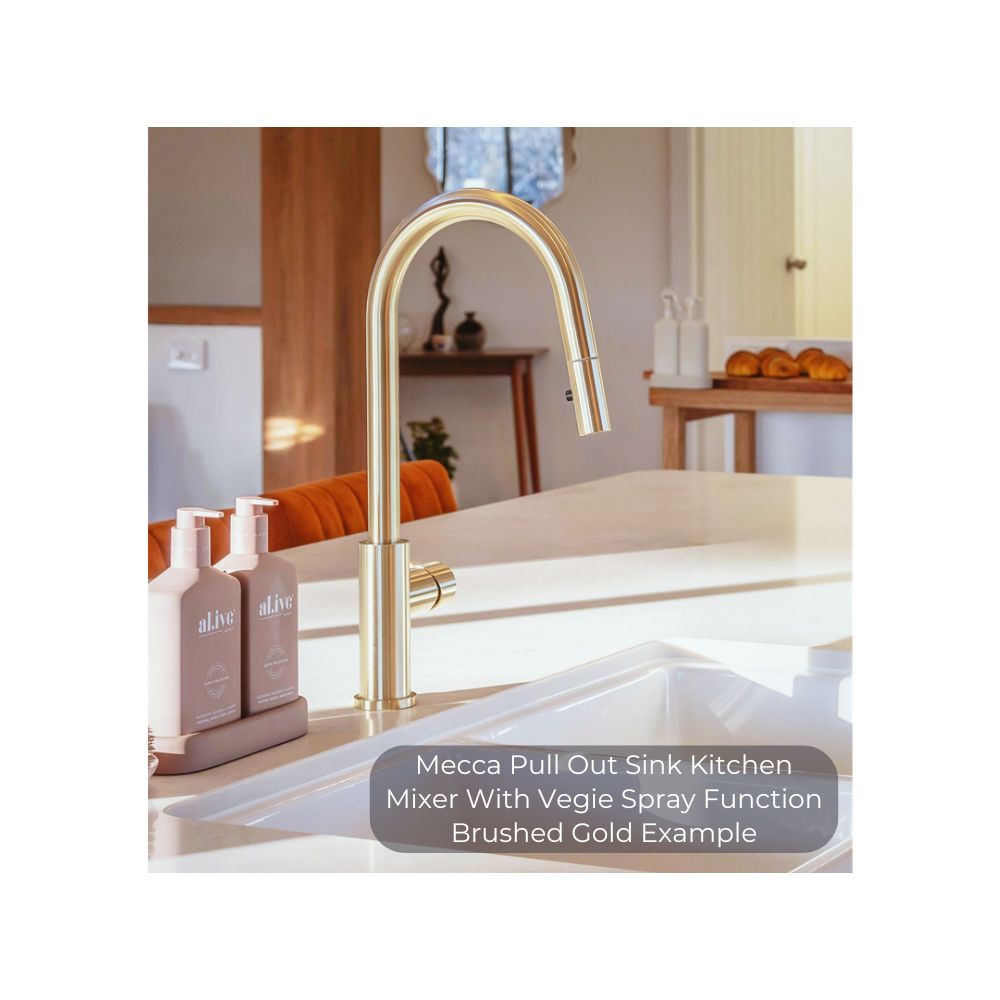

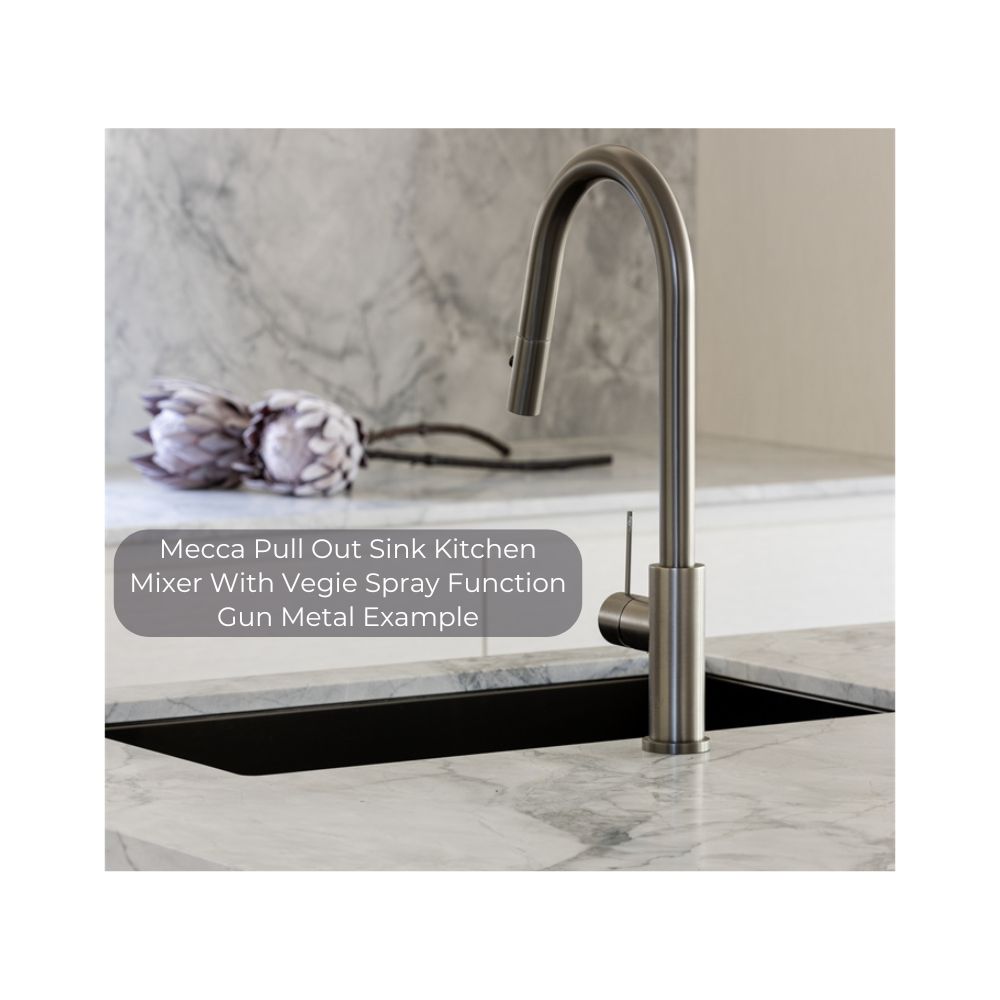

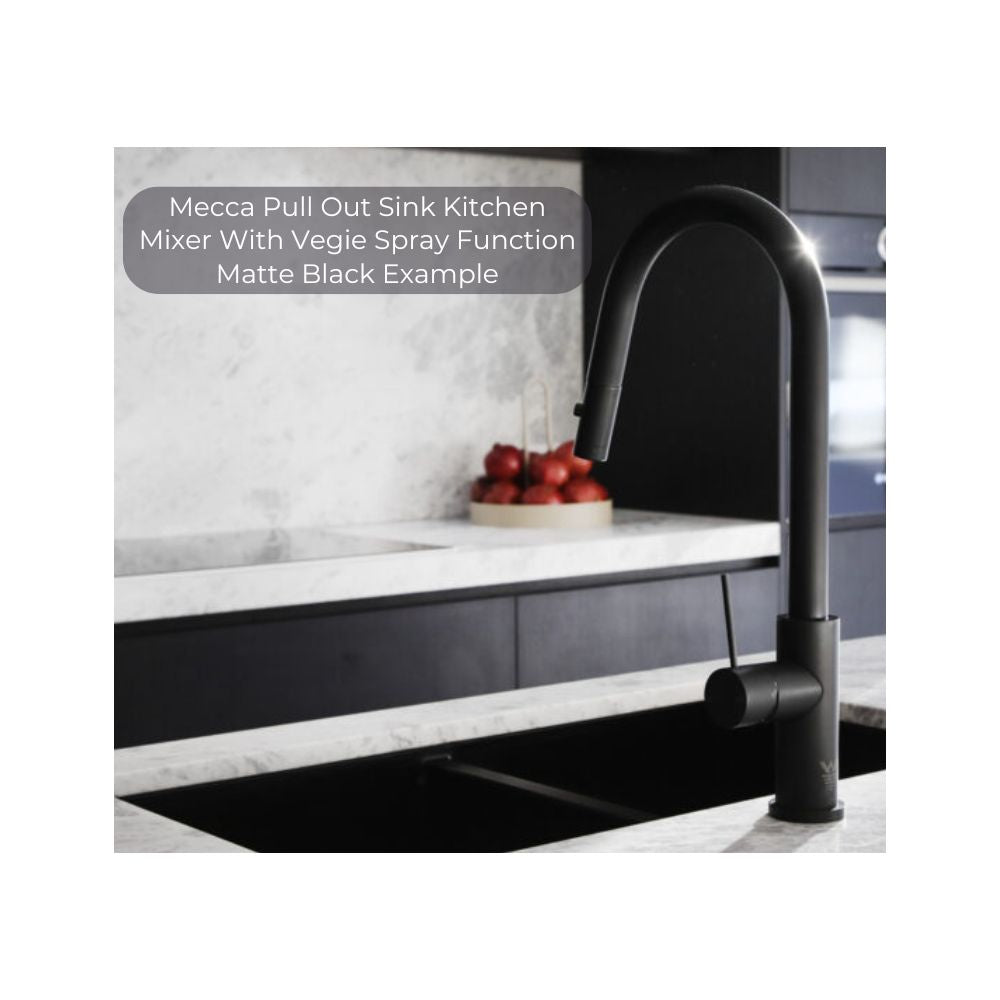

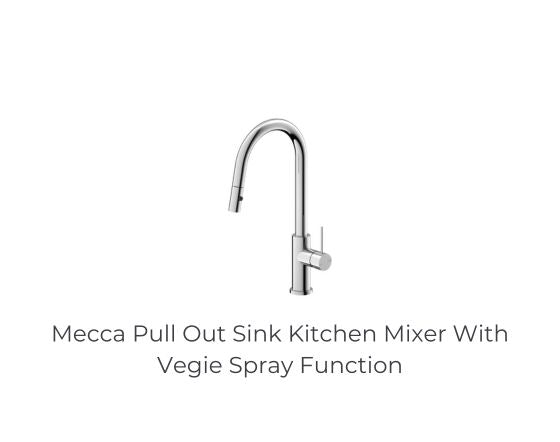

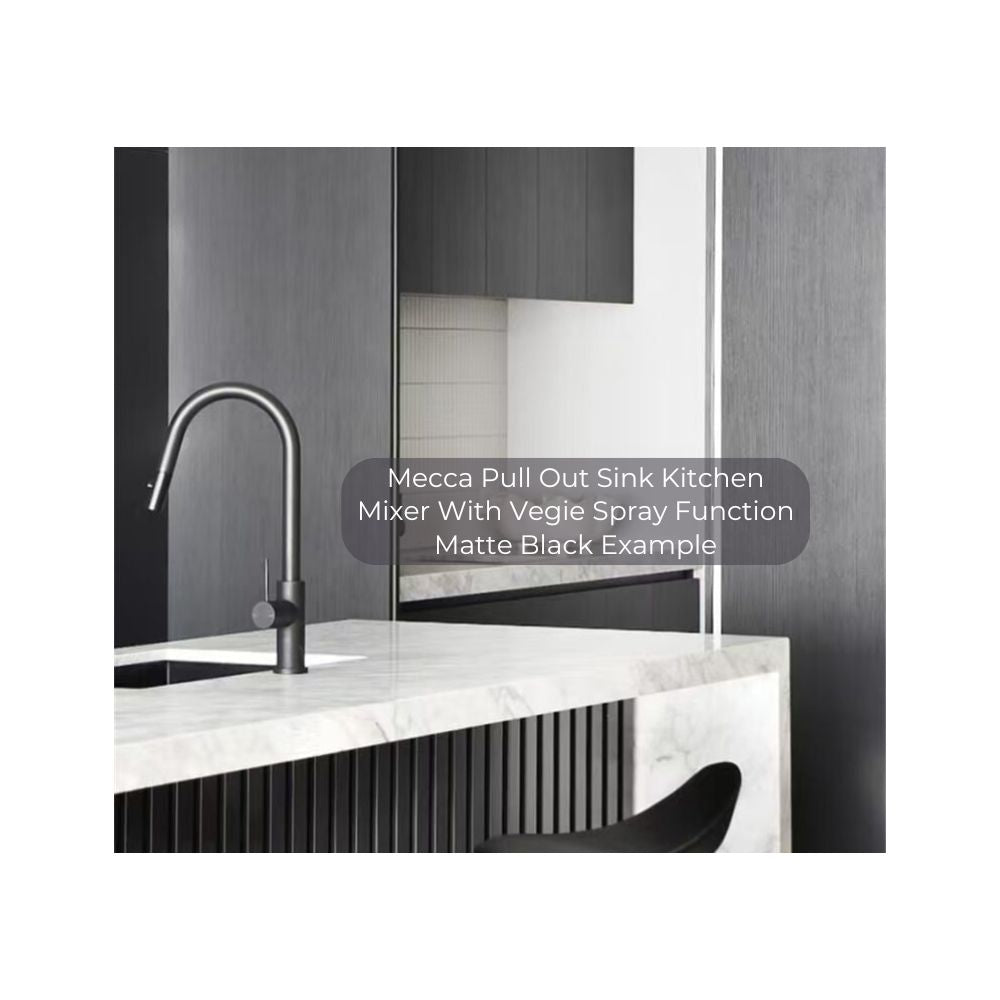

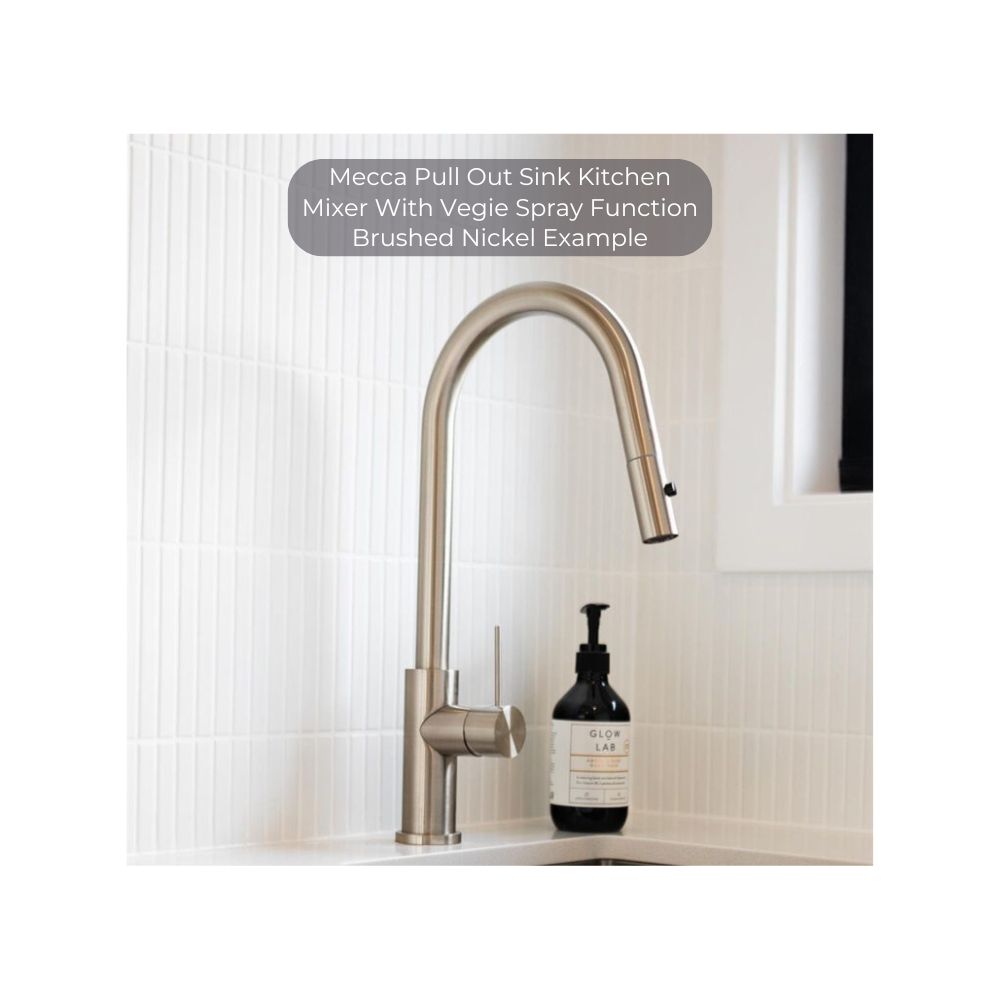

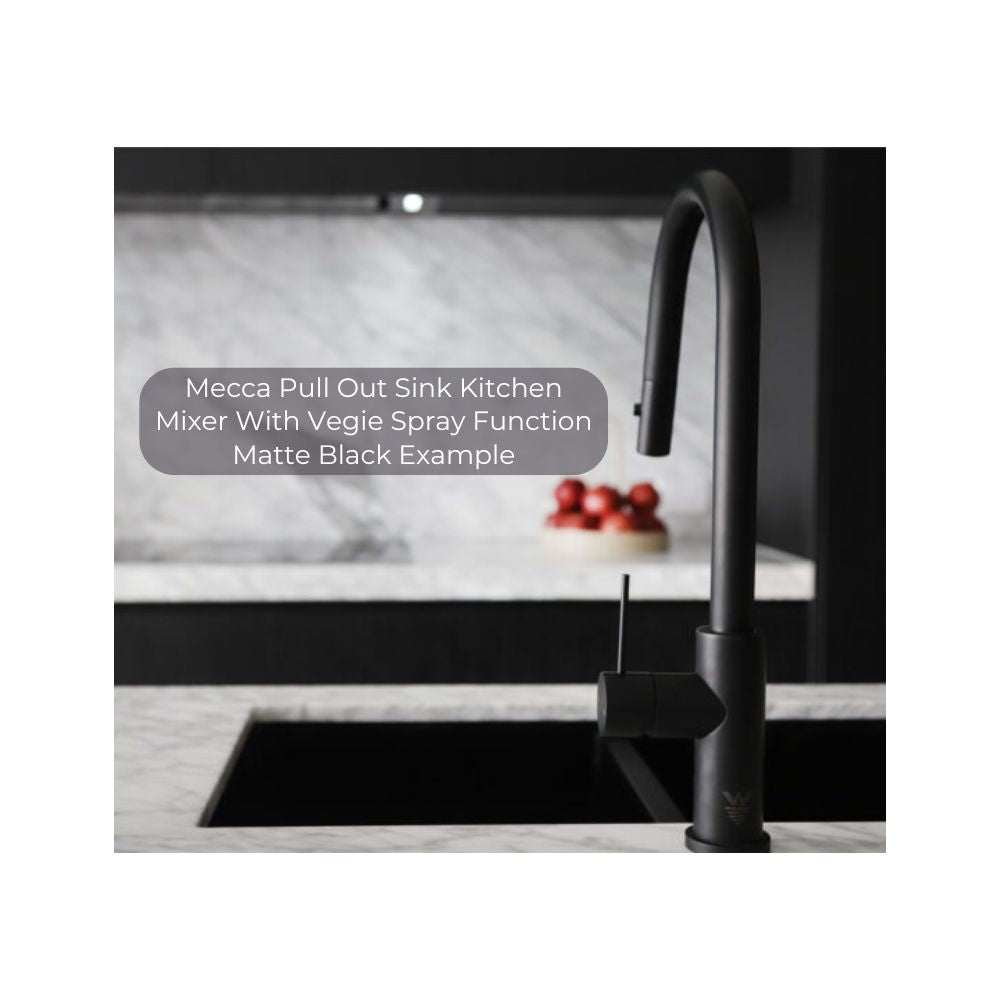

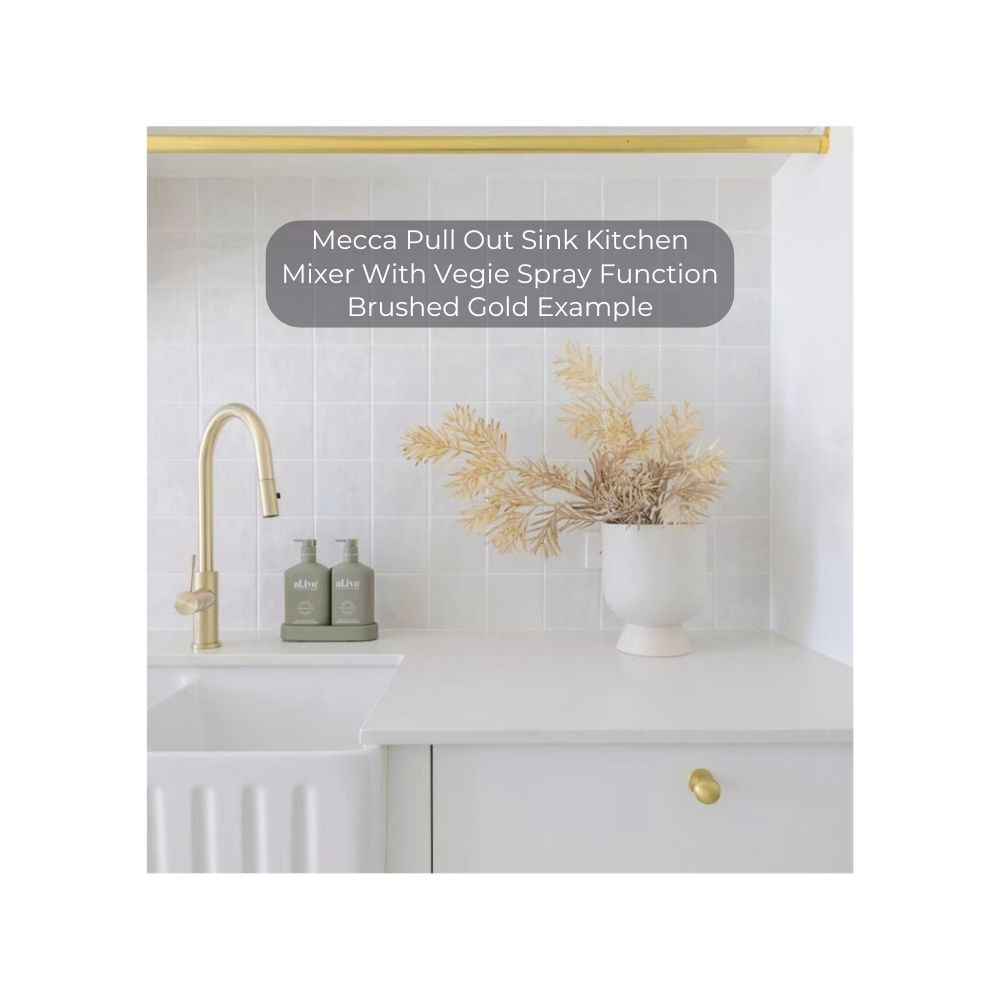

Mecca Pull Out Sink Kitchen Mixer With Vegie Spray Function Matte Black - NR221908MB

• 25mm Ceramic disc cartridge can be adjusted to reduce water temperature and flow control settings, saving money
• Solid brass contstruction for longevity
• 2 Function pull out hand pieces allows for different water control
• Push fit pull out hose for easy installation
• NEOPERL aerator with slim stream flow director
• Polyamide PEX flexible hose - 1/2 BSP female
• Suitable for mains pressure installation
• WELS Rating:4.5L/Min, 6Star
• WELS Registration No: T41348
• Material: Brass
• More options available, see Avail or Nero’s website

Installation Instruction:

GENERAL INSTRUCTIONS:

- This product must be installed by a licensed plumber. Ensure that your plumbing installation conforms to the Australian/New Zealand Standard AS/NZS 3500.

- All pipework must be thoroughly flushed prior to the installation of the mixer. In-line filters must be fitted on both hot and cold supplies to prevent foreign particles from damaging the ceramic cartridge.

- All outlets used primarily for personal hygiene must deliver water at a safe temperature in accordance with regional regulations.

1. Pre-drill or create one hole with a diameter of 35mm at the proper location.
Please note that the thickness of the surface should be between 3-40mm

2. Pass base ring onto the bottom of mixer body, and place the mixer body and pass the flexible hoses, pull out hose and quick connecting hose through the hole in the countertop. Ensuring the O-RING sits within the bottom groove of the base plate to prevent water leakage through the cabinet.

3. Install the rubber and metal washers, if a stabilizer is required, install the stabilizer after positioning the rubber washer.
Tighten the locking nut securely with the two M6 screws to ensure the mixer is firmly attached to the counter-top.
Avoid over tightening to prevent damage to the components.

4. Connect pull out hose with quick connecting hose.

5. Install counter weight by tightening the screws, please note that the distance from counter weight to bottom of thread connector is 350mm.

6. Connect the inlet flexible hoses to the corresponding hot and cold water supply valves.
Tighten the female cone nuts by hand (according to flexible hose instruction), ensuring they are secure yet not overtightened to avoid thread damage.

7. Check all connections for leaks. If any fittings are leaking, shut off the water as necessary to stop the leaks. Contact the supplier for warranty claim.
