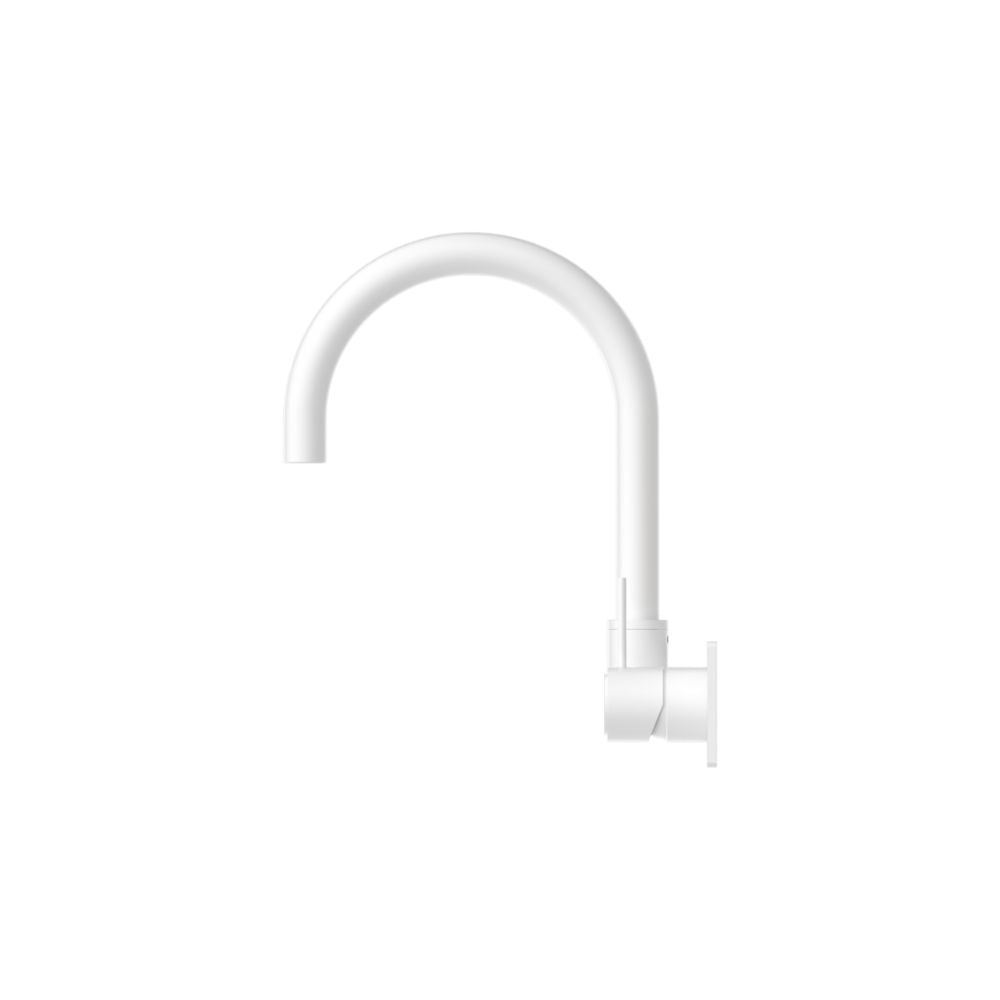

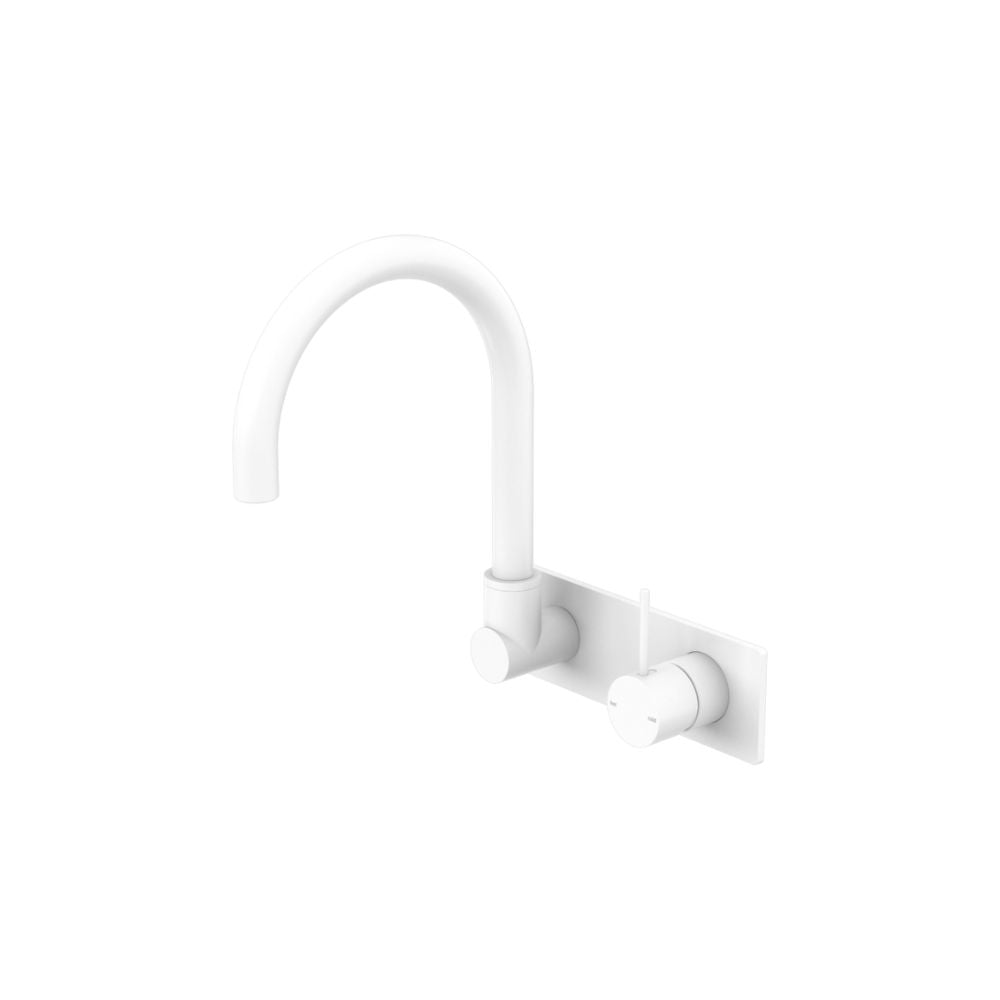

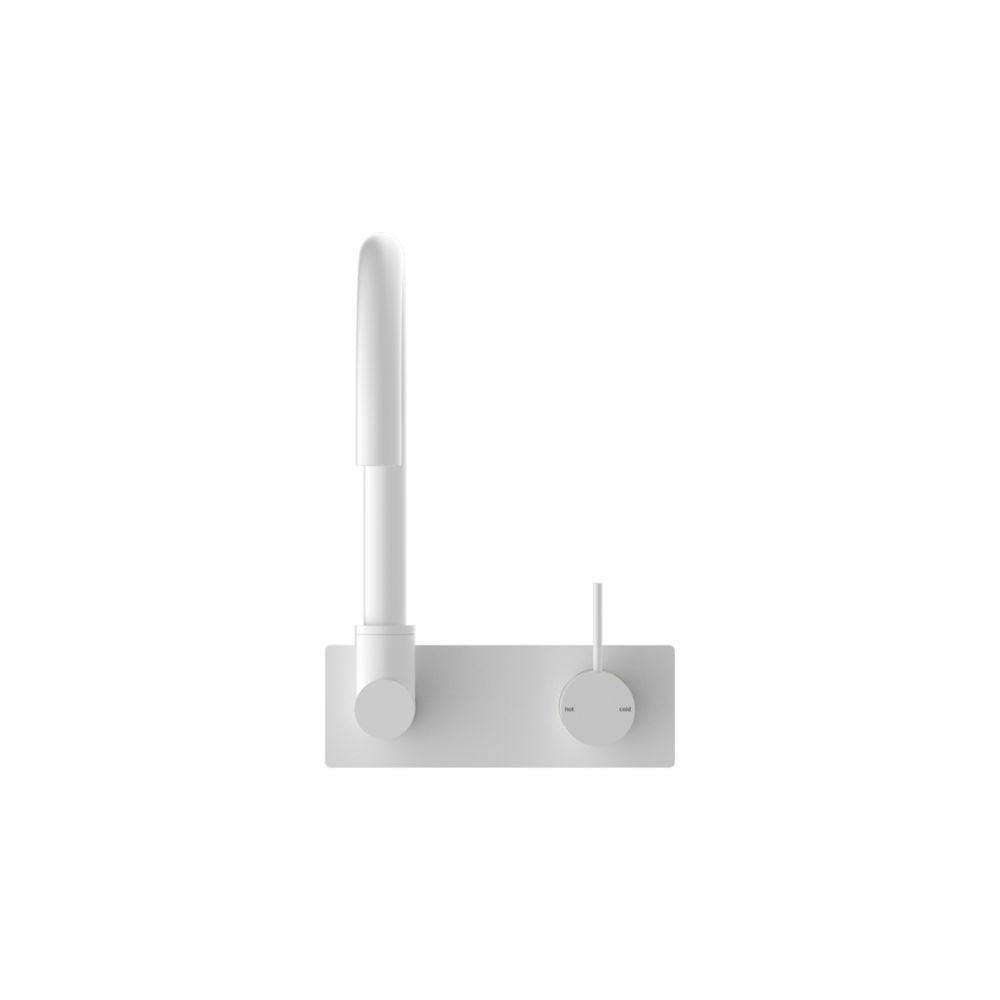

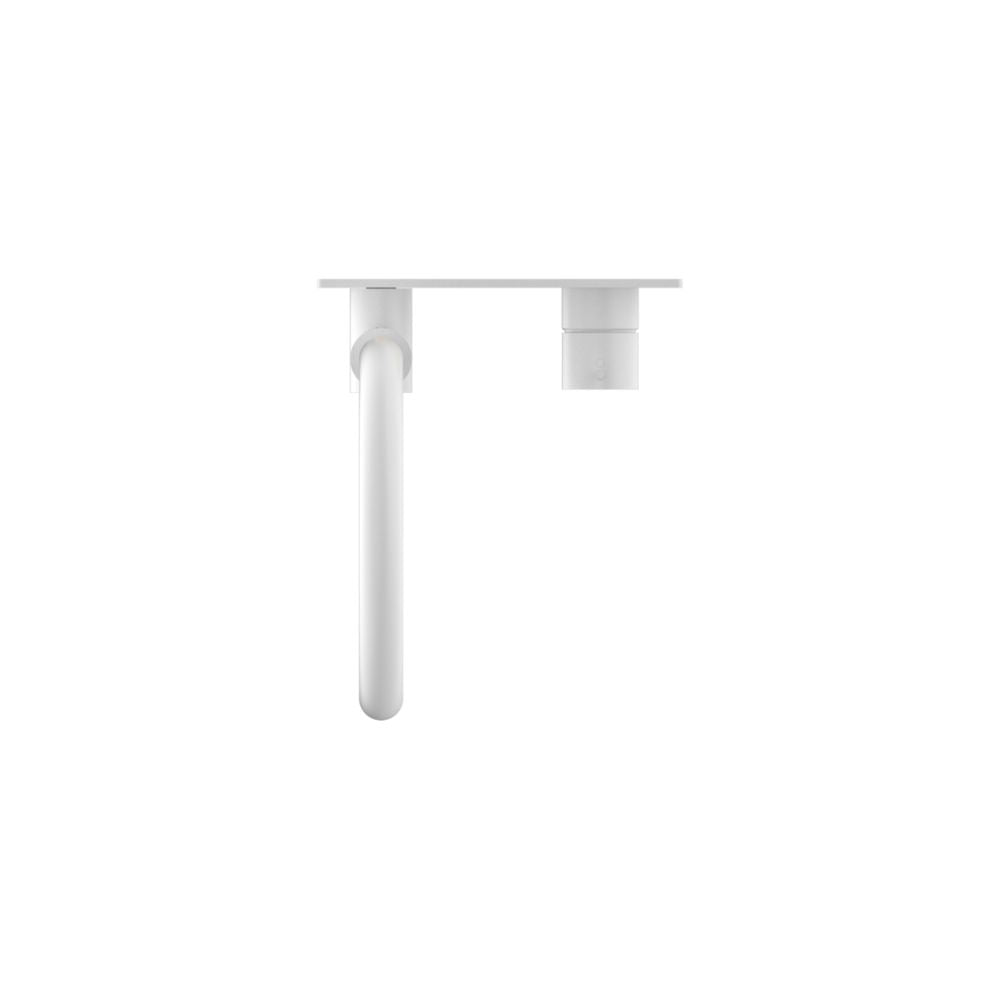

Mecca Wall Basin/Bath Mixer Swivel Spout Handle Up Matte White - NR221910PMW

• 35mm ceramic disc cartridge can be adjusted to control water temperature and flow control settings, saving energy
• Solid brass construction for longevity
• Water inlets- 1/2 BSP female
• Suitable for mains pressure installation
• Replaceable trim kits
• 180 degrees swivel spout
• Packed separately (Body and Trim Kits)
• WELS Rating: 6 Star, 4.5L/Min
• WELS Registration No: T43211

Installation Instruction For Body:

GENERAL INSTRUCTIONS:

-This product must be installed by a licensed plumber. Ensure that your plumbing installation conforms to the Australian/New Zealand Standard AS/NZS 3500.

-All pipework must be thoroughly flushed prior to the installation of the mixer. In-line filters must be fitted on both hot and cold supplies to prevent foreign particles from damaging the ceramic cartridge.

-All outlets used primarily for personal hygiene must deliver water at a safe temperature in accordance with regional regulations.

1. Secure the mixer body to the nogging, ensuring an installation depth of 51-68mm from the nogging to the ceramic tile.
Note: Do not remove the protective sleeve from the mixer body.

2. Connect the cold and hot water supply lines and perform a leak test.

3. Drill a Ø50mm and a Ø40mm hole in the plasterboard for mixer body installation, and then position the plasterboard.

4. Mark the protective sleeve 4-7mm from the ceramic tile surface to the body and waterproof the gap between the plasterboard and body.

5. Remove the self-tapping screw, washer, and protective sleeve, then cut the sleeve at the marked point.

6. Reattach the self-tapping screw, washer, and protective sleeve.

7. Waterproof the gap between the plasterboard and body.

Installation Instruction For Trim Kits:

1. Drill a Ø50mm and a Ø40mm hole in the ceramic tile, then position it as shown in the above diagram.

2. Undo the self-taping screw to remove the protective sleeve, and release the grub screws to remove the water testing plug.

3. Insert the O ring to the cartridge bell groove, and slide the cartridge bell onto cartridge.

4. Apply waterproof treatment to the area.

5. Thread the dressing ring on the cartridge bell.

6. Slide the backplate and washer onto the wall, set the spout in place, and secure it tightly using the grub screw.

7. Attach the washer to the cartridge rod, position the handle, tighten it with a grub screw using an Allen key, and cap the grub screw hole.
Please note: there is a washer between backplate and the spout.
