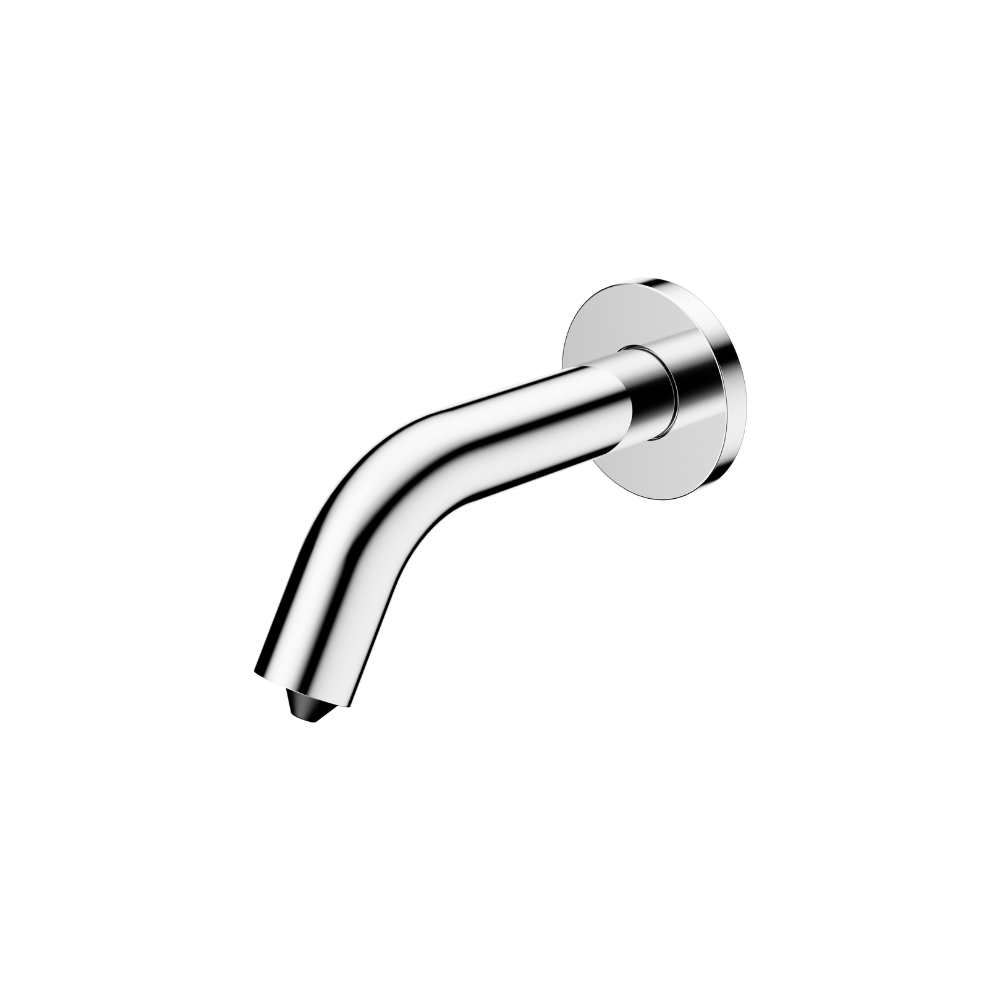

Mecca Wall Mounted Sensor Soap Dispenser Accessible Chrome - NR408CH

• Material: Brass
• Touch-Free Operation
• Standard Battery-Powered
• Optional Power Adapter
•  Sleek & Modern Design
• 2L refillable soap bottle capacity
•  Premium Brass Material
• Consistent Soap Dispensing

Install Advice:

Installation Instruction:

Installation Steps for Spout:

1. Drill the holes.

2. Press the expansion plugs into the holes and pass the hose and sensor cable through the mounting hole.

3. Secure the mixer with self-tapping screws. Then, slide the cover plate onto the mixer.
Note: If needed, screw the locking nut onto the mixer thread from the back of the wall.

Installation Steps for Control box:

1. Drill holes in the wall under the sink 94 mm apart.
Note: The recommended height is 350 mm above the floor to avoid interference with the soap bottle and 300mm below the counter top to provide overhead clearance for installing the control box.
Optional: use dry wall anchors if applicable.
Thread the screws through the control box holder and in to the wall to secure it.

2. Slot the control box in to the control box Holder.

Installation Step for Battery Pack:

For DC powered Soap Dispensers only.

1. Insert the batteries and install the battery box.

2. Drill two holes 30mm apart on the wall beneath the sink, and the height is recommended at least 200mm above the floor, secure the mounting bracket on the wall with screws.
Optional: use dry wall anchors if applicable.

Installation Steps for Connect Wiring:

1. Connect all the parts.

2. Install the Soap Bottle into Control Box.

Installation Steps for Initialize Soap Dispenser:

1. Fill the soap bottle with liquid soap.

2. Press and hold the dispenser button on the control box. Release when soap begins to dispense from the spout.

Note: The Soap dispenser has four soap dispensing levels: low, medium, high, and ultra-high. The default setting is ultra-high. You can adjust the soap dispensing amount by adjusting the switch.
