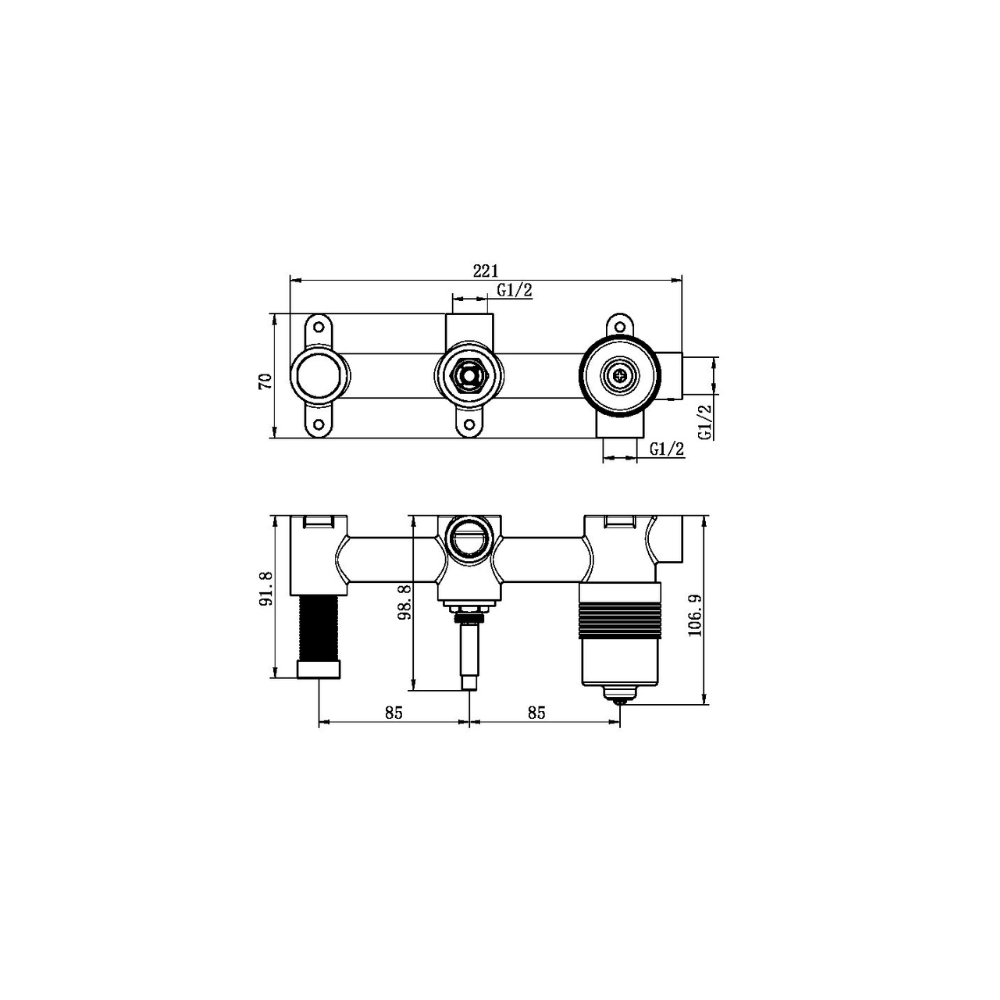

Premium 35mm Universal Shower System Body Only - NRUB004P

• 35mm ceramic cartridge can be adjusted to reduce water using high-end cartridge temperature and flow control setting, saving energy
• Shower mixer with quarter turn divertor defaults to bath spout
• Metal wall plate construction for longevity
• Body inlets – ½ BSP female
• Suitable for mains pressure installation
• Material: Brass
• More options available, see Avail or Nero’s website

Install Advice:

Installation Instruction For Body Only:

1. Fix body on noggin and ensure install depth is 58- 75mm from noggin to ceramic tile.

2. Connect cold water hose and hot water hose and conduct water pressure test for leakage.

3. Install gypsum board and ceramic tile after drilling a Ø50 and two Ø40 holes.

4. Make a mark on plastic sleeve at 4-7cm from ceramic tile surface to body.

5. Remove self-tapping screw, washer and plastic sleeve, and cut off the plastic sleeve from the mark.

6. Install self-tapping screw, washer and plastic sleeve successively.

7. Install dressing bell onto divertor cartridge, do waterproof treatment for gap of plasterboard and body.

8. Finish.

Installation Instruction For Shower System Trim Kits:

1. Install ceramic tile after drilling a Ø50 hole and two Ø30 holes.

2. Take off water testing plug.

3. Put gauge onto outlet successively. Cut off remaining thread against to the cut off gauge.

4. Take off gauge, self-tapping screw, washer and plastic sleeve successively.

5. Install two cartridge bells.

6. Do waterproof treatment for gap of ceramic tile and cartridge bells.

7. Screw dressing ring onto body.

8. Apply thread sealant or teflon tap on outlet thread, tighten outlet onto outlet thread by wrench.

9. Install plate, washer, bracket onto body successively.

10. Install plate, handle successively.

11. Install plate, knob successively.

12. Connect bracket and hand shower with hose.

13. TEST & CHECK FOR LEAKS.
