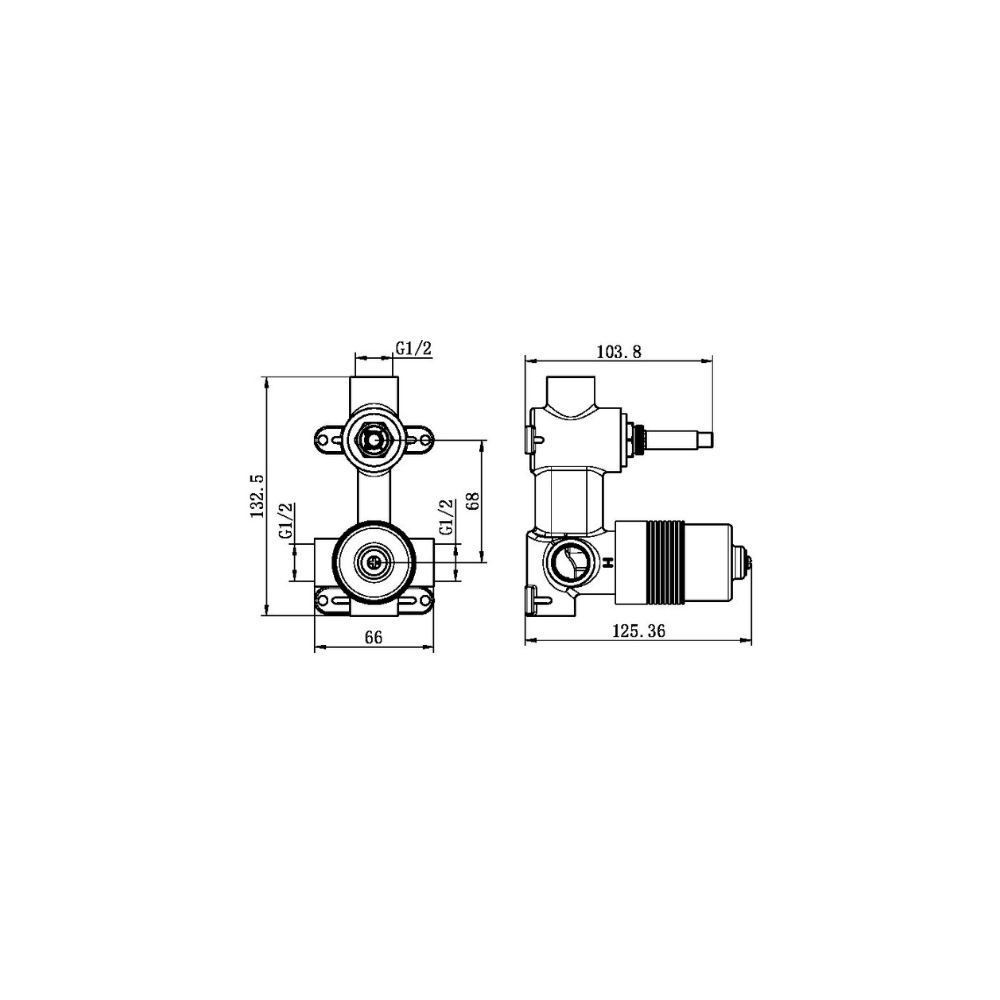

Project 35mm Universal Shower Mixer With Divertor Body Only - NRUB003

• 35mm ceramic cartridge can be adjusted to control water temperature and flow control setting, saving energy
• Shower mixer with quarter turn divertor defaults to bath spout/shower
• Metal wall plate construction for longevity
• Body inlets – ½ BSP female
• Suitable for mains pressure installation
• Wels rating not required
• More options available, see Avail or Nero’s website

Install Advice:

Installation Instruction For Body:

1. Fix body on noggin and ensure installation depth is 68-78mm from noggin to ceramic tile surface. Caution: Do not take off plastic sleeve on body.

2. Connect cold water hose and hot water hose and conduct water pressure test for leak.

3. Install plasterboard after drilling a Ø50 and a Ø40.

4. When the installation depth is 68-70mm, make a mark on plastic sleeve at 2-4cm from ceramic tile surface to body. when the installation depth is 71 78mm,make a mark on plastic sleeve at 4-7cm from ceramic tile surface to body.

5. Remove self-tapping screw, washer and plastic sleeve, and cut off the plastic sleeve from the mark.

6. Install self-tapping screw, washer and plastic sleeve successively.

7. Install sleeve onto divertor, do waterproof treatment for gap of plasterboard and body.

Installation Instruction For Trim Kits:

1. Install ceramic tile after drilling a Ø50 and a Ø30 hole according.

2. Take off self-tapping screw, washer, plastic sleeve.

3. Put on cartridge bell and sleeve.

4. Screw on dressing ring.

5. Do waterproof treatment for gap between ceramic tile and cartridge bell, sleeve.

6. Put plates onto body.

7. Put washer onto cartridge stick, install handle, tighten grub screw of handle firmly by hex wrench, put cap into handle.

8. Put knob onto divertor cartridge, tighten grub screw of knob firmly by hex wrench, put cap into knob.
