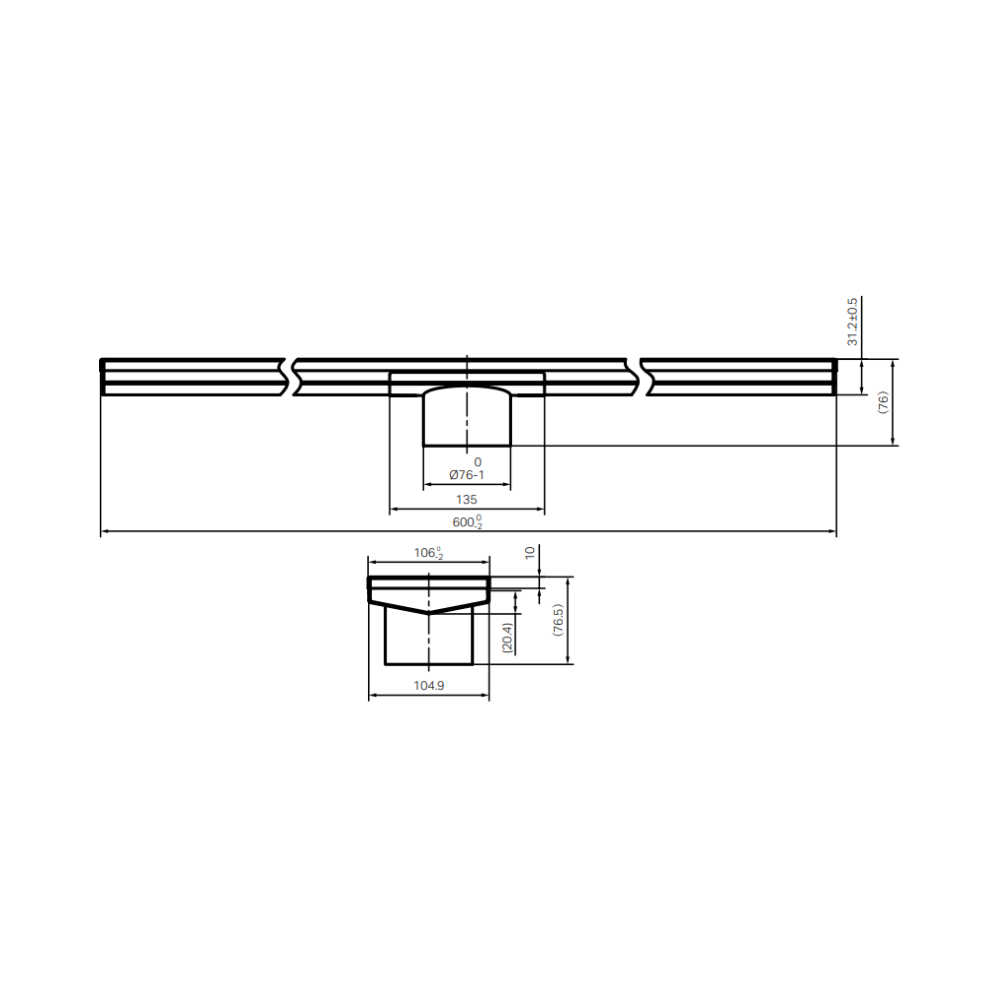

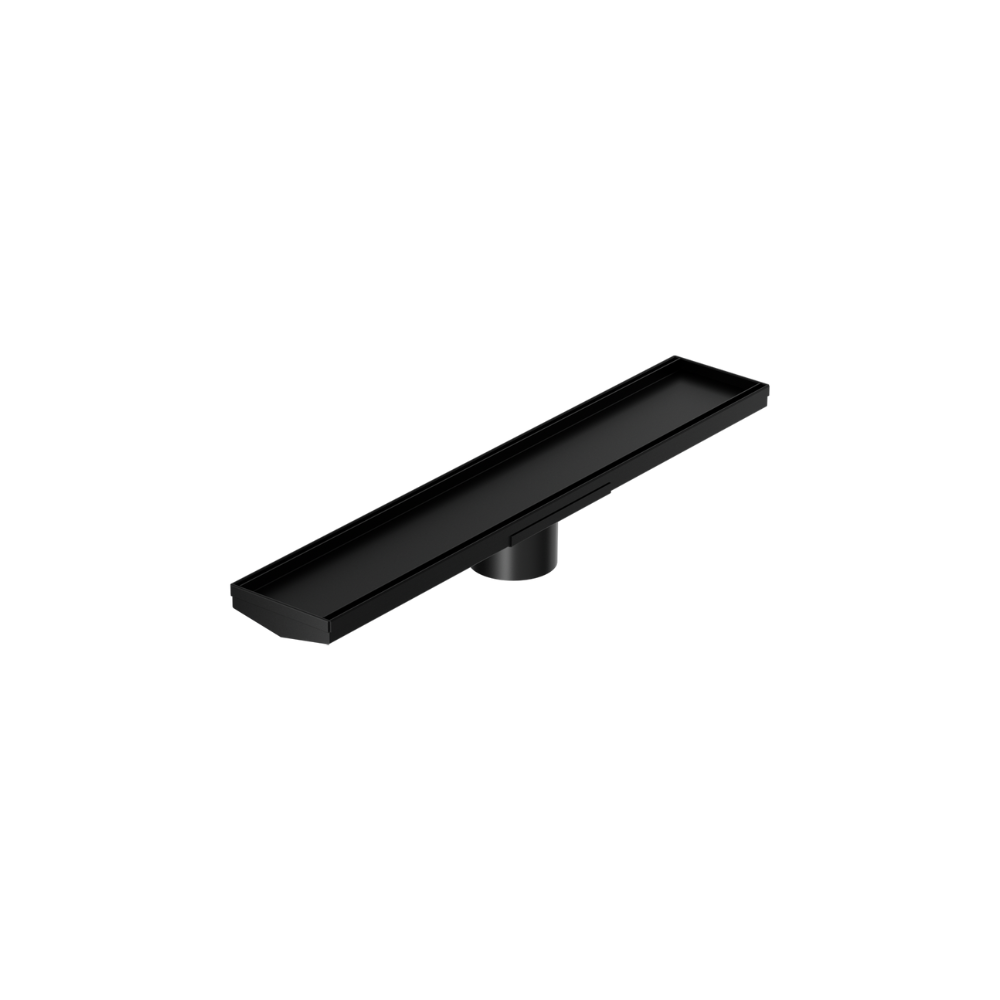

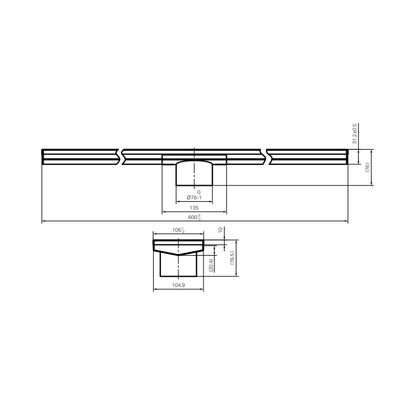

Tile Insert V Channel 600x106mm Floor Grate 80mm Outlet Matte Black - NRFG008HSMB

• Material: 304 Stainless Steel
• Fits 80mm puddle flange for easy integration.
• Suitable for tiles with a thickness of less than 10mm.
• Durable 304 stainless steel construction ensures long-lasting performance.
• Separate waste outlet and grate design provides greater installation flexibility.
• V-channel profile enhances water flow speed and drainage efficiency.
• Available in 5 premium finishes to match various bathroom styles.
• Note: Outlet, hole saw, and grate are packed separately. Only one hole saw will be supplied per order, regardless of the number of grates purchased.
• Hole saw is available on request.

Install Advice:

Installation Instruction:

1. Confirm a puddle flange has been correctly installed and is compatible with the outlet pipe.

2. Drill a hole in the V-Channel Panel using the provided hole saw, aligned to the drainage point.

3. Install all the parts.
NOTE: seal around the contact area using sanitary-grade silicone.

4. Lay the floor tiles and ensure the tiles have an appropriate slope toward the floor grate to make the water flow efficiently into the grate.
NOTE: the thickness of the tile should not exceed 10mm.
