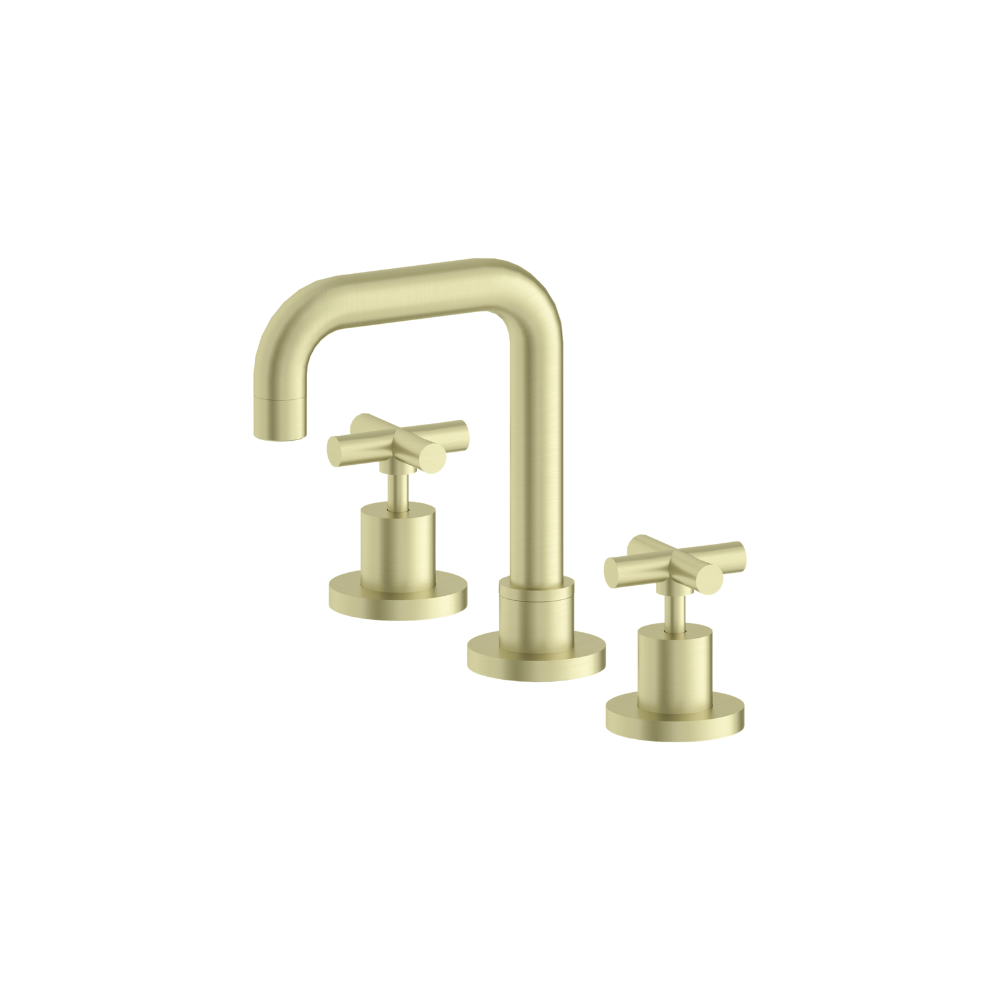

X Plus Basin Set Brushed Gold - NR201601BG

• Material: Brass
• WELS Rating :5L/Min, 5 Star
• WELS Registration No: T43009
• Suitable for retrofit applications
• Solid brass, superior quality
• Fixed spout
• Jumper valve spindles

Install Advice:

Installation Instruction:

1. Remove the hexagonal nut and circlip from the body set.

2. Put hexagonal nut and circlip on the mixing tube in a row.

3. Plug the mixing tube into body, and screw hexagonal nut, don't too tight.


1. Plug the assembled kit from the bottom side of the counter, and adjust the height.

2. Out on lock flange, and tighten by wrench firmly.

3. Put on plate onto slow-opening valve, then put dressing bell onto valve, and tighten it up.

4. Put the screw onto the stick of slow-opening valve, then put the circlip onto gap of slow-opening valve.

5. Put cross hand wheel onto stick of slow-opening valve, then adjust the rotation angle of hand wheel and tighten it up.

1. Remove the hexagonal nut and washer from the spout.

2. Put the spout in the hole on the counter and put on the washer and hexagonal nut.

3. Put the bottom of the spout onto mixing tube.

4. Tighten the hexagonal nut of spout.

5. Tighten the hexagonal nut beside the body set firmly by wrench.
