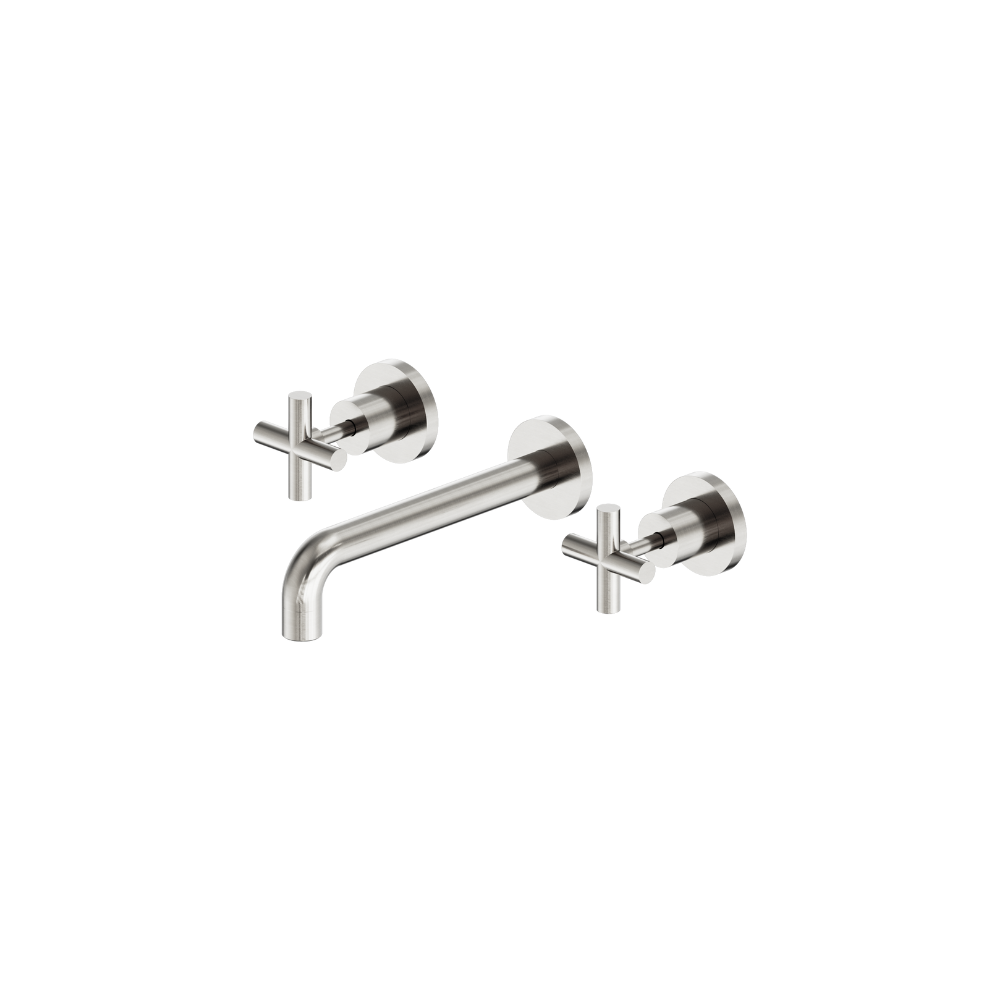

X Plus Wall Basin Set 215mm Brushed Nickel - NR201607ABN

• Material: Brass
• WELS Rating: 5L/Min, 5Star
• WELS Registration No:T43039
• Suitable for retrofit applications
• Solid brass, superior quality
• Fixed spout
• Jumper valve spindles
• Packed separately (wall top assemblies and spout)
• In wall breach not included
• Note: In Wall Body/Breech Not Included

Installation Instruction:

1. Fit the washer onto the slow-opening cartridge and screw the cartridge onto the breech tightly.

2. Slide the plate onto the slow-opening cartridge. Then, screw the dressing bell tightly onto the slow opening cartridge.

3. Slide the locking ring onto the stem of the slow opening cartridge. Then, fit the locking plate onto the groove of the slow-opening cartridge.

4. Fit the cross handle onto the stem of the slow opening cartridge. Adjust it to the correct orientation, then tighten the locking ring to secure it.

5. Apply Teflon tape around the outlet thread.

6. Slide the plate onto the spout, then screw the spout onto the outlet thread until it is correctly oriented.
Push the plate firmly against the wall.

FINAL INSPECTION:
- Check all connections to ensure they are firmly secured and free of leaks, but not overtightened to avoid damaging any components.
