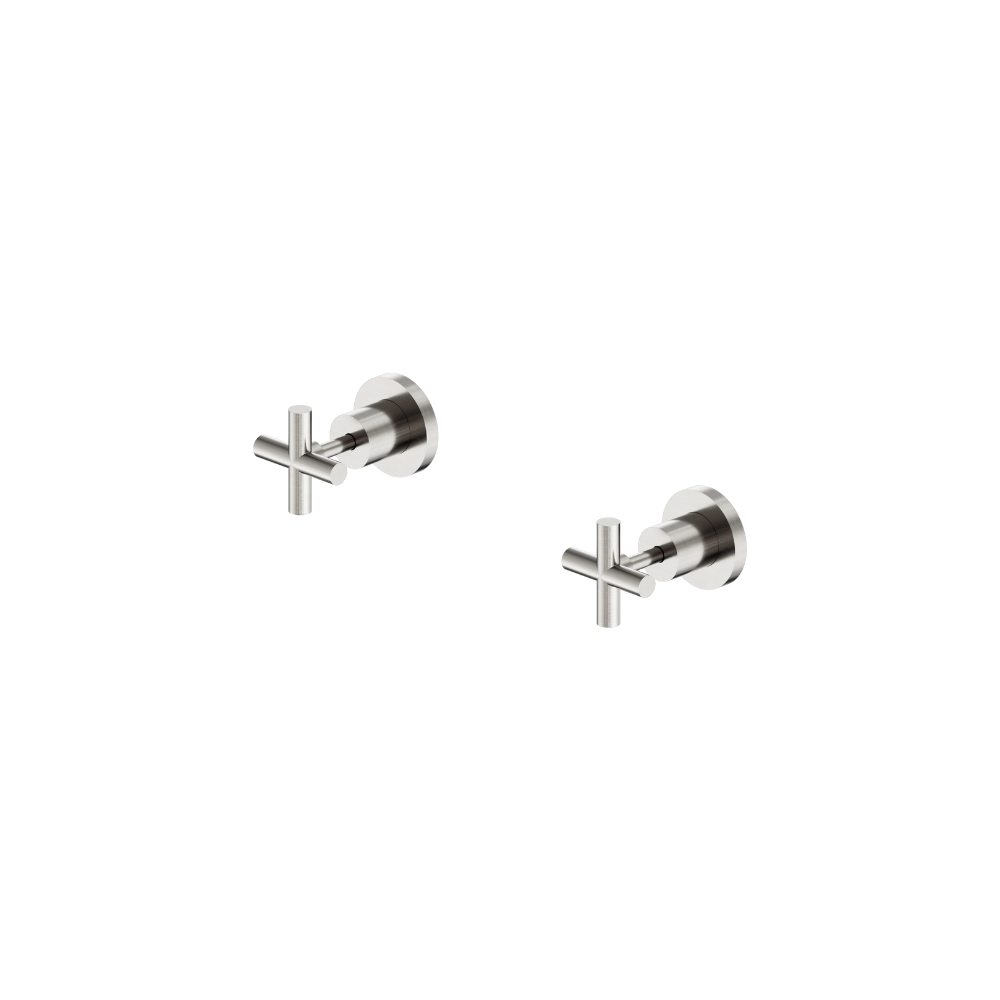

X Plus Wall Tops Assembly Brushed Nickel - NR201609BN

• Material: Brass
• Suitable for retrofit applications
• Solid brass, superior quality
• Jumper valve spindles
• Note: In Wall Body/Breech Not Included

Install Advice:

Installation Instruction:

1. Fit the washer onto the slow-opening cartridge and screw the cartridge onto the breech tightly.

2. Slide the plate onto the slow-opening cartridge. Then, screw the dressing bell tightly onto the slow opening cartridge.

3. Slide the locking ring onto the stem of the slow opening cartridge. Then, fit the locking plate onto the groove of the slow-opening cartridge.

4. Fit the cross handle onto the stem of the slow opening cartridge. Adjust it to the correct orientation, then tighten the locking ring to secure it.


FINAL INSPECTION:
- Check all connections to ensure they are firmly secured and free of leaks, but not overtightened to avoid damaging any components.
