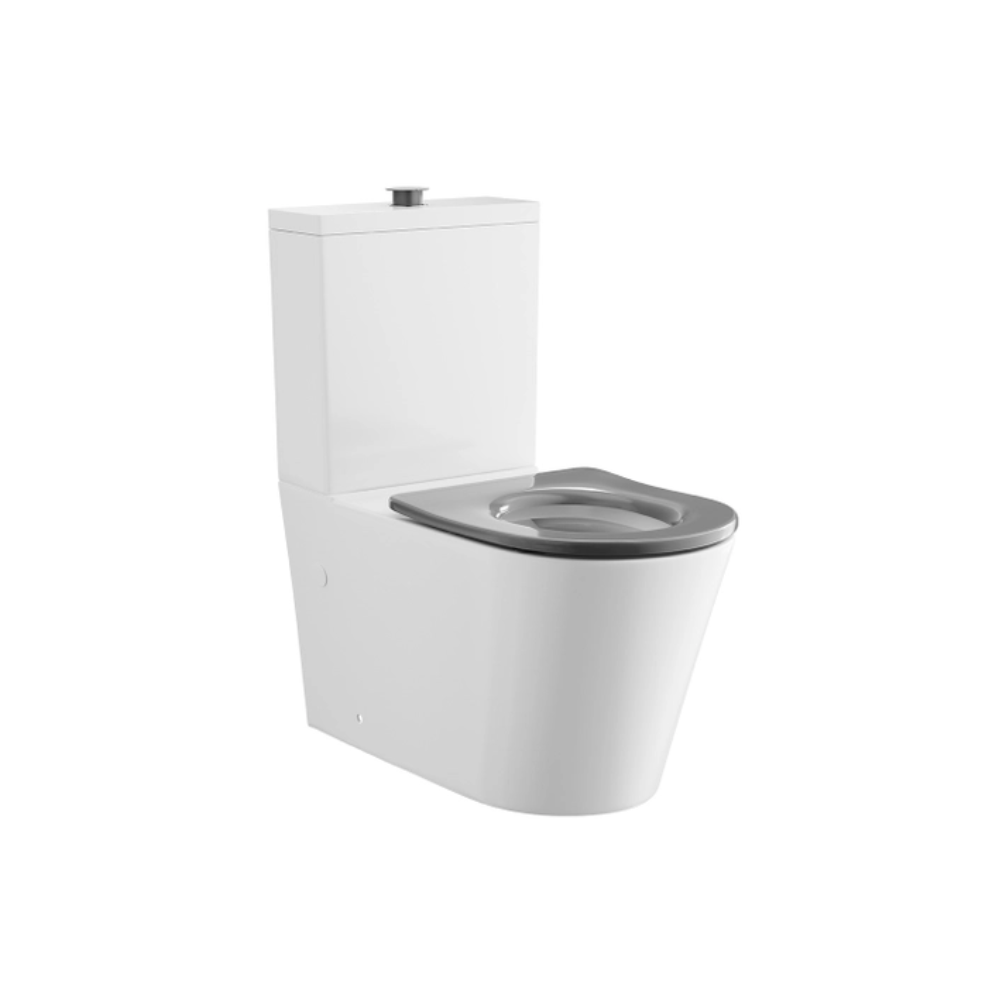

Avail Accessible Toilet Suite 800mm DDA AS1428.1 with Raised Buttons Grey Seat - ATCPDDAG1

i. Meets all AS1428.1 Section 12 Compliance requirements for DDA Accessible Toilets
ii. 800mm to front edge 460mm Seat Height
iii. Raised Flush Buttons
iv. Seat and button coloured for minimum 30% contrast against the toilet pan and cistern (suitable for all wall and floor colours)

i. Additional Products required for AS1428.1-2021 Accessible Toilet Compliance (see install diagram for required install locations):

1. Toilet Backrest: Calibre Mecca DDA Accessible Toilet Backrest Removable Brushed Nickel - NRCR0001BN
2. Accessible Toilet Side Grab Rail 90 or 45 degree: Calibre Mecca 32mm DDA Accessible Grab Rail Set 90 Degree 600x1000mm Brushed Nickel - NRCR3290BN or Calibre Mecca 32mm DDA Accessible Toilet 90 Degree Grab Rail 600x1000mm Brushed Nickel - NRCR3290eBN
3. Accessible Toilet Rear Grab Rail minimum 300mm length: Calibre Mecca 32mm Grab Rail 300mm Brushed Nickel - NRCR3212BN
4. Toilet Roll Holder Single or Double (other options are available): Calibre Mecca Add On Toilet Roll Holder Brushed Nickel - NRCR3286TBN or Mecca Double Toilet Roll Holder Brushed Nickel - NR1986dBN

• Versatile and Adaptable: Ideal for a wide range of settings, including commercial buildings, public spaces, and residential properties.
• Our accessible toilets can be customized to meet specific needs and seamlessly integrate into any environment.
• Highest Quality
• Vitreous China Construction
• Rimless Flushing Technology
• Heavy Duty Duraplast
• Quick Release
• Soft Close Seat
• WELS Registration No. L08199
• WELS Licence No. 0422
• Average flush: 3.5 Litres, Full flush: 4.6L, Half flush: 3.2L
• Star Rating: WELS 4 Star
• Warranty: 7 year replacement product or parts*:1 year labour
  *Excludes valves, seats, button assembly, links, flush pipes & other internal components which carry a 1 year replacement warranty
• Formerly Code: HDC692-HEP-800-WGG-R/I
• Supplied with S-trap adaptor to suit 130-250mm Set Out.
• Will Suit 190-360mm Set Out with S-TRAP2 (sold separately)

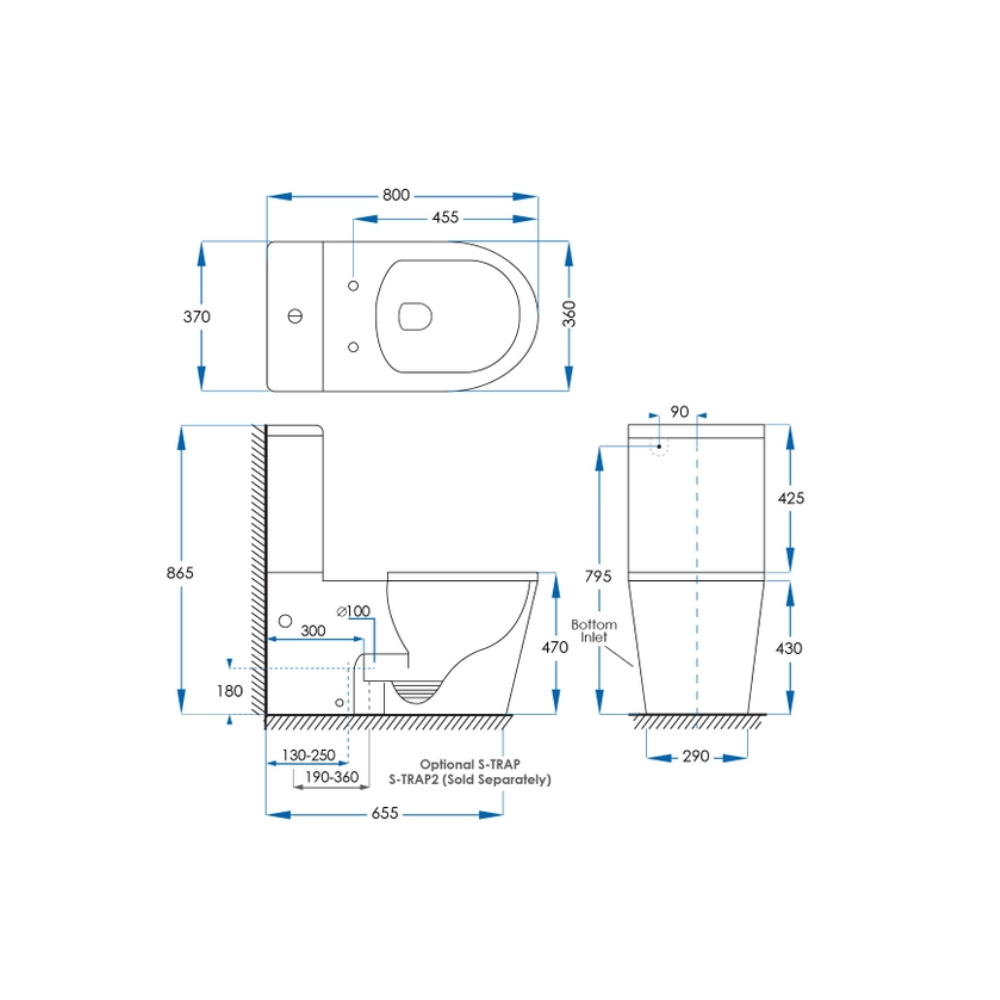

• Size: 360mm x 800mm x 865mm
